HC-1001 - Echo Hedge Trimmer (SN: 001001 - 008000) Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

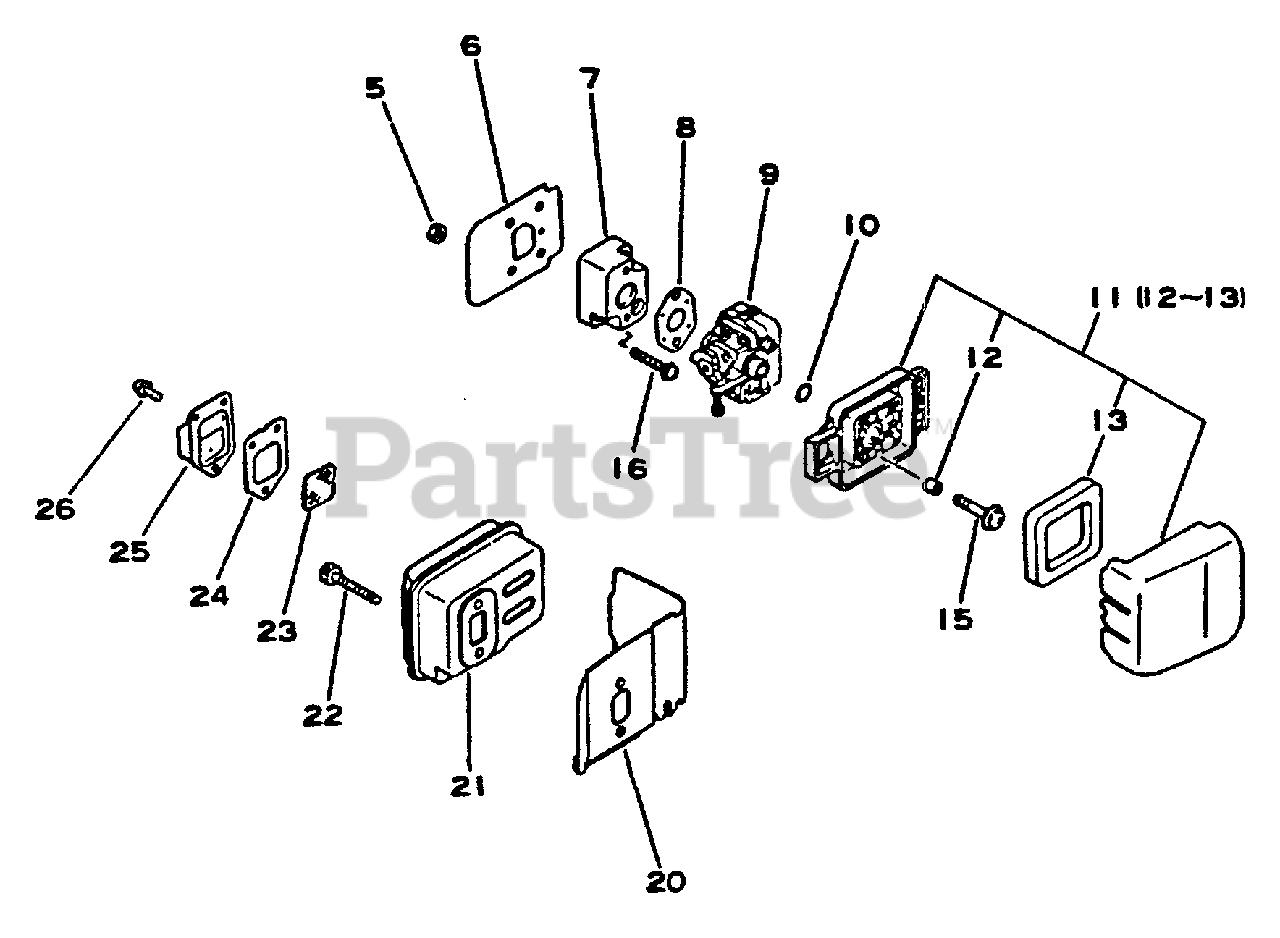

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

7

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.49

$

In Stock, only 1 left!

0

8

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

$2.49

$

In Stock, Qty 12

0

9

Echo 12300005160

CARBURETOR WYL-3
(Superseded to Discontinued)

$

$

Not available

10

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 20+

0

11

Echo 13030044430

AIR CLEANER ASSY
(Superseded to 13030045130)

$30.99

$

Usually ships in 2-4 days

0

12

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

13

Echo 13031044330

FILTER, AIR

$4.99

$

In Stock, Qty 8

0

15

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

16

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

20

Echo 14551044330

GASKET, EXHAUST
(Superseded to 14551044331)

Note: Included in Muffler Ass'y, P/N 14580005160

$9.99

$

Usually ships in 2-4 days

0

21

Echo 14581044330

MUFFLER

Note: Included in Muffler Ass'y, P/N 14580005160

$36.99

$

Usually ships in 2-4 days

0

22

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 14

0

23

Echo 14586240630

SCREEN, SPARK ARRESTOR

Note: Included in Muffler Ass'y, P/N 14580005160

$1.99

$

In Stock, Qty 20+

0

24

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: Included in Muffler Ass'y, P/N 14580005160

$2.49

$

In Stock, Qty 5

0

25

Echo 14580904560

GUIDE, EXHAUST
(Superseded to 14580904561)

Note: Included in Muffler Ass'y, P/N 14580005160

$7.49

$

Usually ships in 2-4 days

0

26

Echo 90024294010

SCREW - 4X10

Note: Included in Muffler Ass'y, P/N 1458005160

$

$

Currently unavailable

Echo 14580005160

MUFFLER ASSY
(Superseded to 14580005162)

$

$

Not available
