HC-1001 - Echo Hedge Trimmer (SN: 001001 - 008000) Fuel System Parts Diagram

Hedge Trimmer

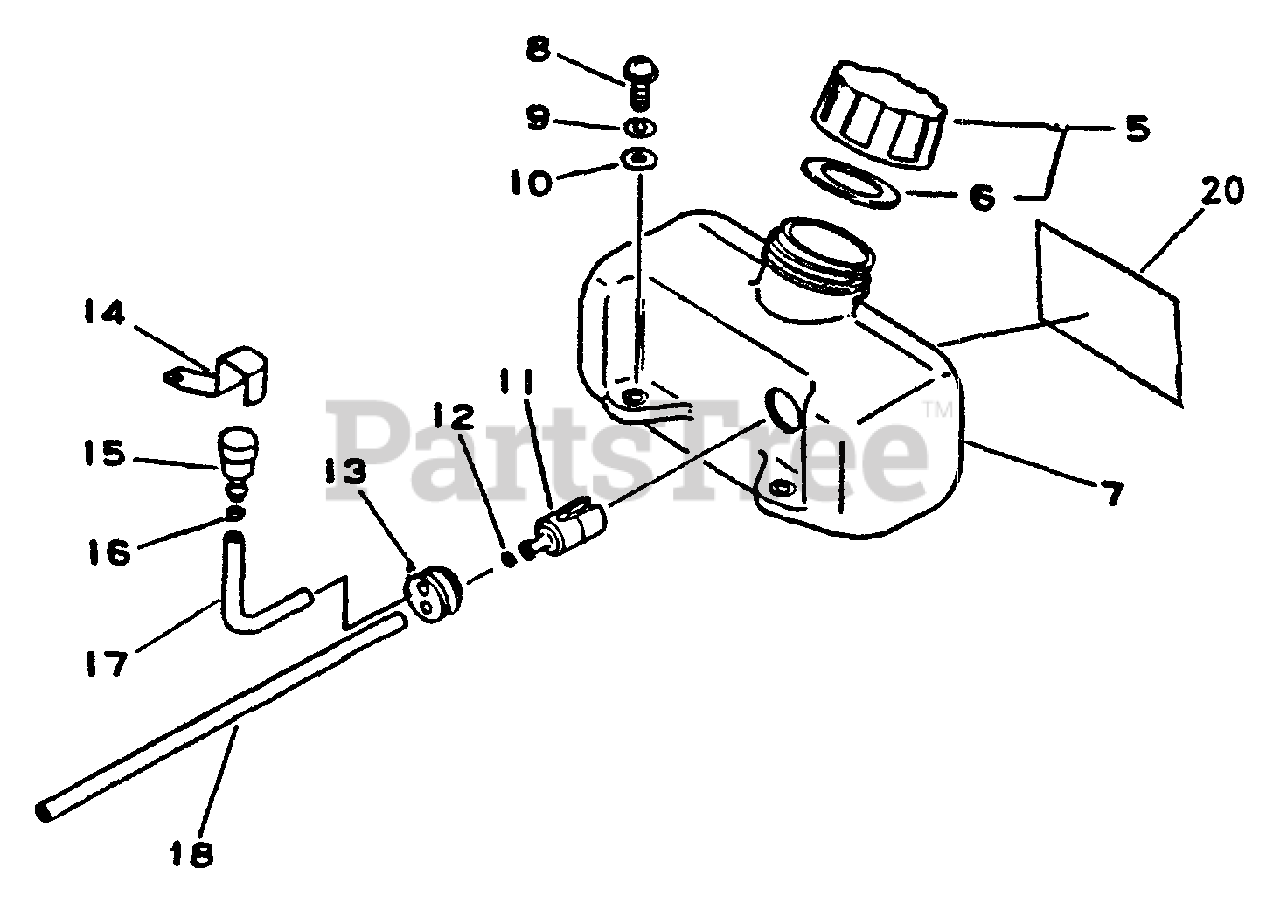

Fuel System Parts Diagram

  • Title

5

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

$7.49

$

In Stock, only 4 left!

0

6

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 20+

0

7

Echo 13100504560

TANK, FUEL
(Superseded to 13100504561)

$13.99

$

Usually ships in 2-4 days

0

8

Echo 90022005016

SCREW - 5X16

$0.99

$

In Stock, Qty 8

0

9

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

10

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

12

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

13

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

14

Echo 13132304560

HOLDER

$3.99

$

In Stock, only 1 left!

0

15

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 5

0

16

Echo 13201302361

RETAINER, PIPE
(Superseded to 13011100530)

$0.99

$

In Stock, Qty 20+

0

17

Echo 13201204631

PIPE - 3X6X80 -- BLACK

Note: RePower BULK OPTION: 90015

$

$

Not available

18

Echo 13201007530

PIPE - 3X5X195 -- BLACK
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$9.99

$

In Stock, only 2 left!

0

20

Echo 89031705160

LABEL - CAUTION
(Superseded to Discontinued)

Note: CANADA MODEL

$

$

Not available
