HC-1001 - Echo Hedge Trimmer (SN: 001001 - 008000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

Hedge Trimmer

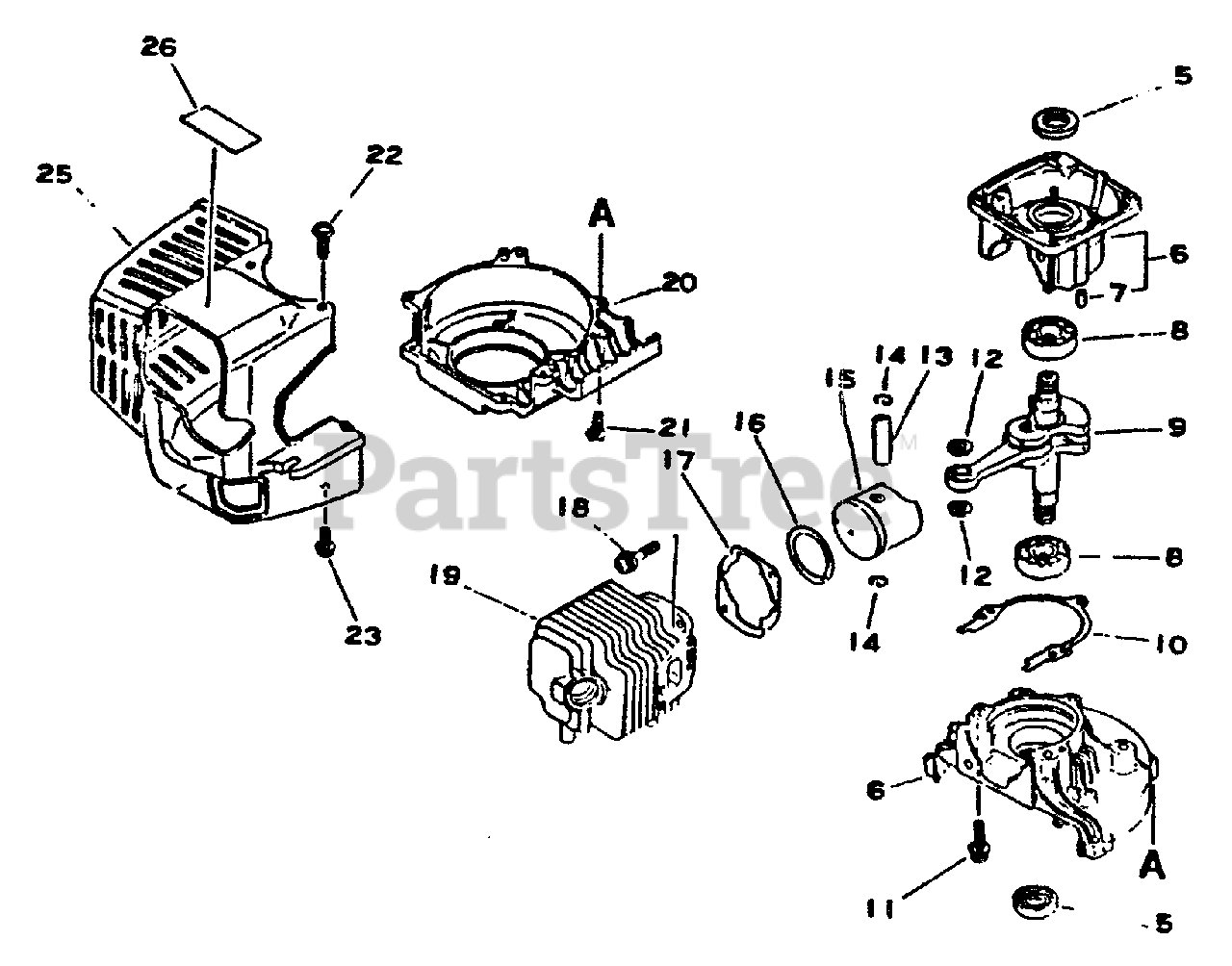

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title
5

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

6

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$131.99

$

Usually ships in 2-4 days

0

7

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

8

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

9

Echo 10010044330

CRANKSHAFT ASSY
(Superseded to 10010044331)

$283.99

$

Usually ships in 2-4 days

0

10

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit, P/N 88900044330

$

$

Not available

11

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

12

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

13

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

14

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

15

Echo 10001044330

PISTON
(Superseded to 10000044330)

$65.99

$

Usually ships in 2-4 days

0

16

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

17

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$3.99

$

In Stock, only 4 left!

0

18

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

19

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

$127.99

$

Usually ships in 2-4 days

0

20

Echo 10151104560

CASE, FAN

$47.99

$

Usually ships in 2-4 days

0

21

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

22

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

23

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

25

Echo 10151404560

COVER, ENGINE - ORANGE
(Superseded to 10151406460)

$22.99

$

Usually ships in 2-4 days

0

26

Echo 89011205160

LABEL - MODEL HC-1001
(Superseded to Discontinued)

$

$

Not available

Echo SB1002

SHORT BLOCK -- SB1002
(Superseded to Discontinued)

$

$

Not available

Echo 88900044330

GASKET KIT
(Superseded to 88900044332)

$37.99

$

Usually ships in 2-4 days

0
