HC-1001 - Echo Hedge Trimmer (SN: 001001 - 008000) Carburetor Parts Diagram

Hedge Trimmer

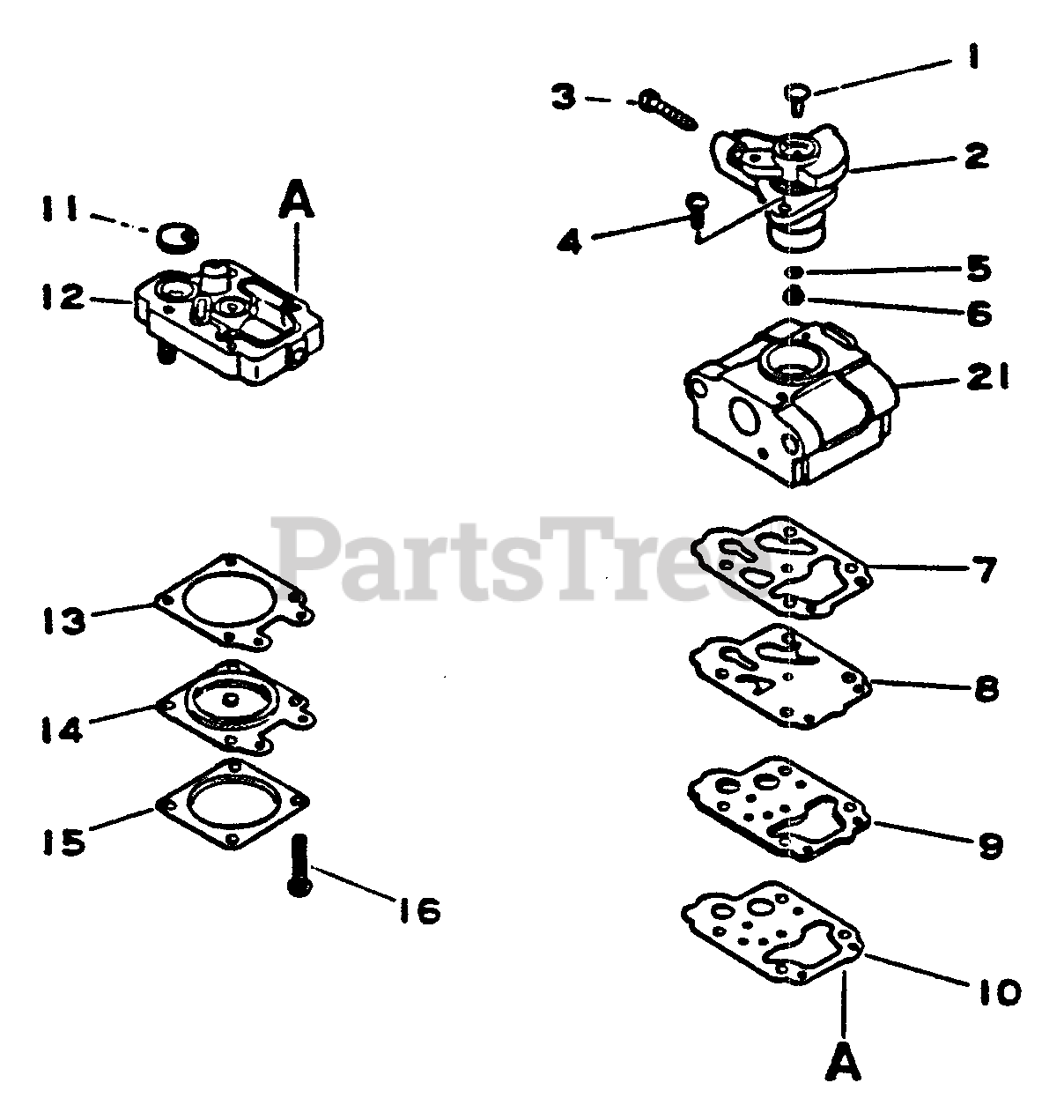

Carburetor Parts Diagram

  • Title

Echo 12300005160

CARBURETOR WYL-3
(Superseded to Discontinued)

$

$

Not available

1

Echo 12314644330

PLUG, WELCH

$0.99

$

In Stock, only 1 left!

0

2

Echo 12311605160

VALVE, THROTTLE

$15.99

$

In Stock, only 1 left!

0

3

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

5

------------------

O-RING

$

$

Not available

6

------------------

JET

$

$

Not available

7

------------------

GASKET, PUMP

$

$

Not available

8

------------------

DIAPHRAGM, PUMP

$

$

Not available

9

Echo 12316040630

PLATE, PUMP

$3.99

$

Usually ships in 2-4 days

0

10

------------------

GASKET, PLATE

$

$

Not available

11

------------------

STRAINER

$

$

Not available

12

------------------

PUMP BODY ASSY

$

$

Not available

13

------------------

GASKET, DIAPHRAGM

$

$

Not available

14

------------------

DIAPHRAGM, METERING

$

$

Not available

15

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

16

$1.99

$

Usually ships in 2-4 days

0

16

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 20+

0

16

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

$2.49

$

In Stock, Qty 12

0

Echo 12310044430

REPAIR KIT

$27.99

$

Usually ships in 2-4 days

0

Echo 12310144430

DIAPHRAGM/GASKET KIT

$11.99

$

Usually ships in 2-4 days

0
