HC-1000 - Echo Hedge Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

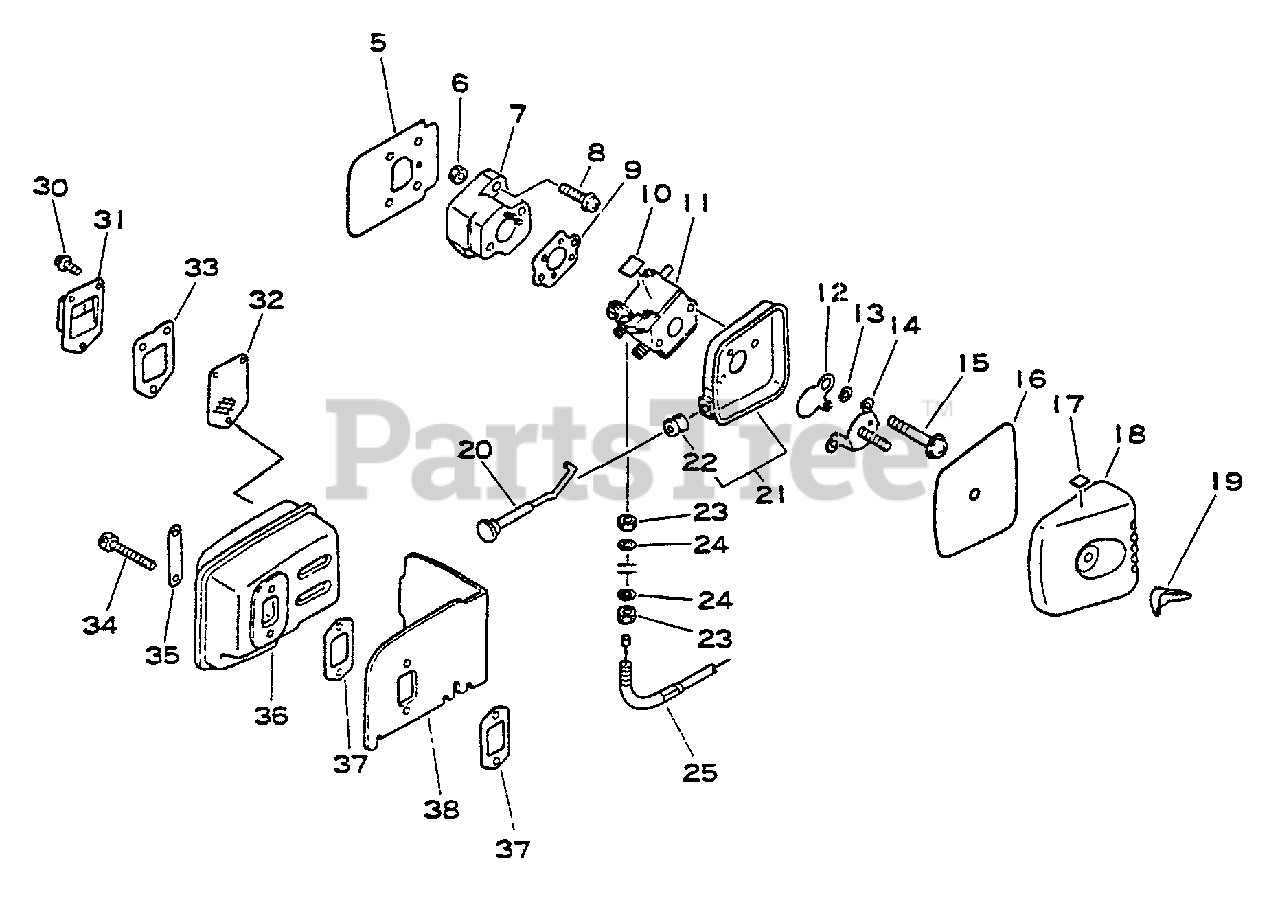

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
5

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 7

0

6

$0.99

$

In Stock, Qty 20+

0

7

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

8

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

9

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo 89015806230

LABEL - CAUTION

$0.99

$

Usually ships in 2-4 days

0

11

Echo 12520004560

CARBURETOR
(Superseded to 12520004561)

$

$

Not available

12

Echo 17851504560

SHUTTER, CHOKE

$2.49

$

In Stock, only 2 left!

0

13

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 13040504560

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

15

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

16

Echo 13031004560

FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

17

Echo 89012104560

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

18

Echo 13031304561

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

19

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

20

Echo 17851048830

ROD, CHOKE

$7.49

$

Usually ships in 2-4 days

0

21

Echo 13030104560

CASE, AIR FILTER

$8.49

$

Usually ships in 2-4 days

0

22

$1.99

$

In Stock, Qty 8

0

23

$0.99

$

In Stock, Qty 6

0

24

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

25

Echo 17800104560

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

30

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 13

0

31

Echo 14580904560

GUIDE, EXHAUST
(Superseded to 14580904561)

$7.49

$

Usually ships in 2-4 days

0

32

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, only 2 left!

0

33

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

34

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 12

0

35

$1.49

$

In Stock, Qty 5

0

36

$46.99

$

In Stock, only 1 left!

0

37

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

38

Echo 14563142030

COVER, MUFFLER
(Superseded to A320000250)

$4.99

$

In Stock, Qty 14

0
