HC-1000 - Echo Hedge Trimmer Gear Case, Blades, Clutch Drum Parts Diagram

Hedge Trimmer

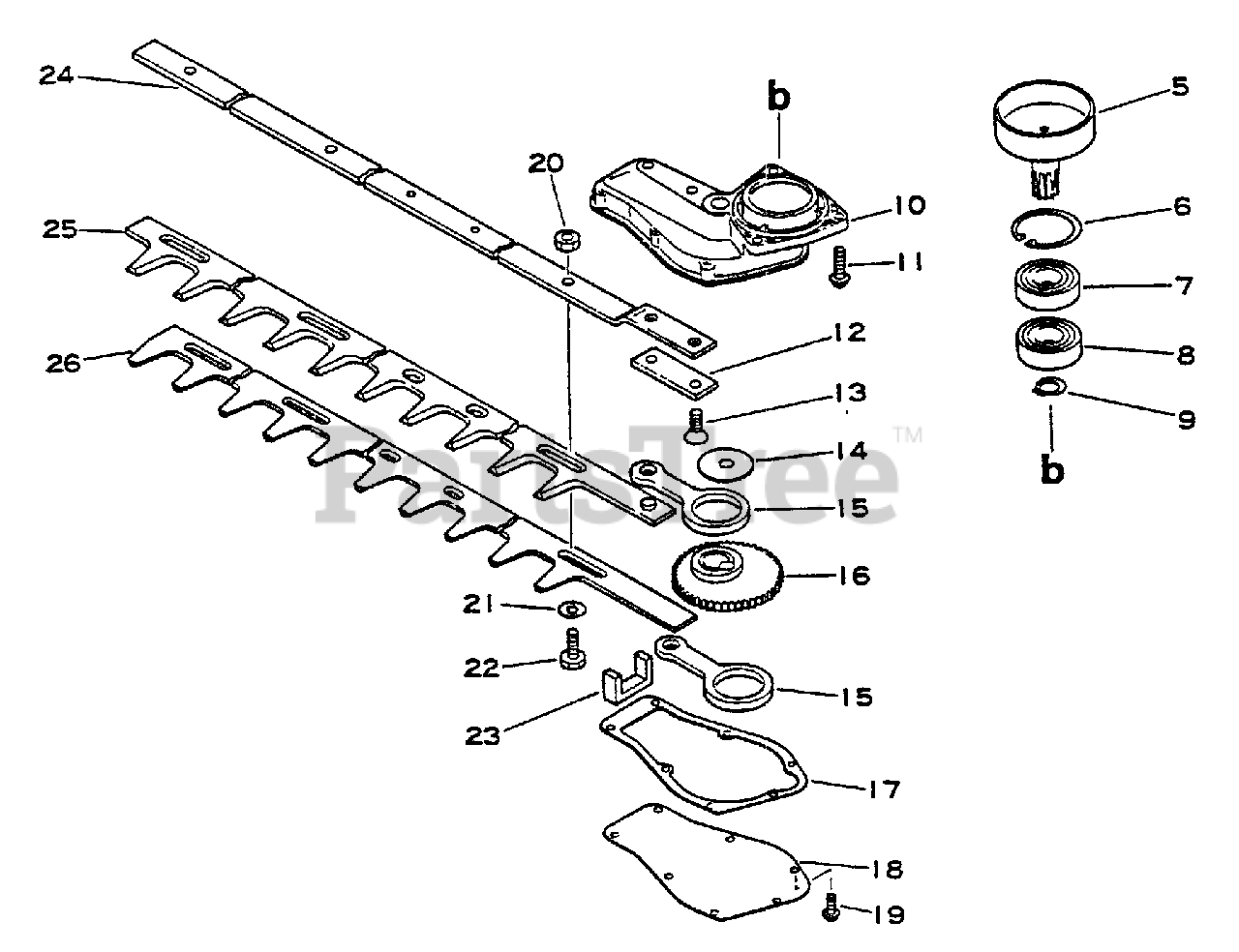

Gear Case, Blades, Clutch Drum Parts Diagram

  • Title
5

Echo 17500504560

DRUM, CLUTCH

$43.99

$

In Stock, only 1 left!

0

6

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

7

Echo 90081336202

BEARING, BALL - 6202

$10.99

$

In Stock, only 1 left!

0

8

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

9

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 1 left!

0

10

Echo 61040704560

CASE, GEAR
(Superseded to 61040704561)

$115.99

$

Usually ships in 2-4 days

0

11

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

12

$2.49

$

In Stock, Qty 7

0

13

Echo 90021206018

SCREW - 6X18

$0.99

$

Usually ships in 2-4 days

0

14

$1.49

$

In Stock, only 4 left!

0

15

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$23.99

$

In Stock, only 3 left!

0

16

Echo 61031204560

GEAR - DRIVE

$76.99

$

In Stock, only 3 left!

0

17

Echo 61041404560

GASKET, GEAR CASE

$1.49

$

In Stock, only 3 left!

0

18

Echo 61041104560

LID, GEAR CASE

$6.49

$

Usually ships in 2-4 days

0

19

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

20

$1.49

$

In Stock, Qty 20+

0

21

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

$2.49

$

In Stock, Qty 14

0

23

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 20+

0

24

Echo 69911704560

SUPPORT, BLADE
(Superseded to Discontinued)

$

$

Not available

25

Echo 69701204560

BLADE - UPPER

$56.99

$

Usually ships in 2-4 days

0

26

Echo 69701304560

BLADE - LOWER
(Superseded to Discontinued)

$

$

Not available
