HC-1000 - Echo Hedge Trimmer Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer

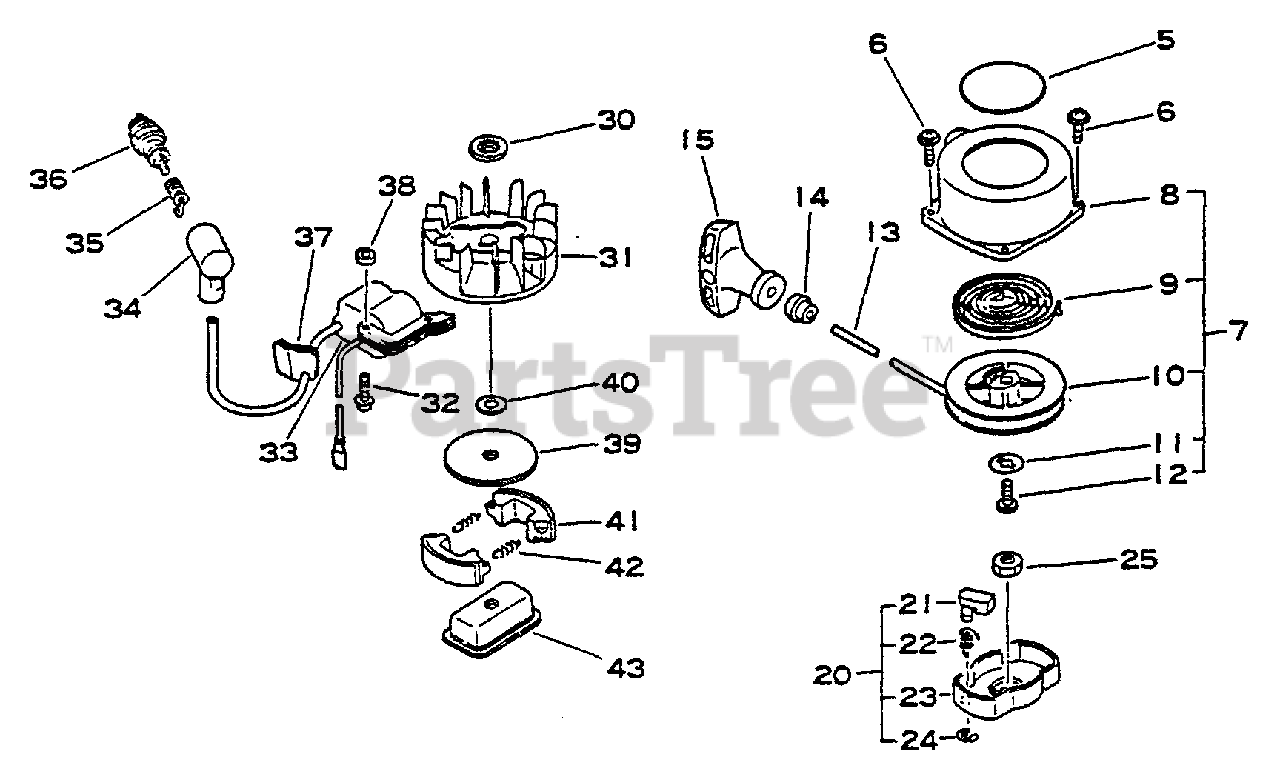

Clutch, Ignition, Starter Parts Diagram

  • Title
5

Echo 89011226730

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

6

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

7

Echo 17720042031

STARTER ASSY
(Superseded to 17720042032)

$49.99

$

In Stock, Qty 20+

0

8

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

9

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 6

0

10

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 16

0

11

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

12

$3.99

$

In Stock, Qty 14

0

13

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

14

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

15

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

20

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 18

0

21

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

22

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

23

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 18

0

24

Echo 90070000006

RING, RETAINING - 6

$0.99

$

In Stock, Qty 5

0

25

$0.99

$

In Stock, Qty 20+

0

30

Echo 10014342030

WASHER
(Superseded to Discontinued)

$

$

Not available

31

Echo 15080142030

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

32

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

33

Echo 15060104560

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

34

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

35

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 13

0

36

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

37

Echo 15011242030

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

38

$1.49

$

In Stock, only 1 left!

0

39

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

40

$2.49

$

Usually ships in 2-4 days

0

41

Echo 17501704631

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

42

Echo 17501806530

SPRING, CLUTCH

$1.99

$

In Stock, only 1 left!

0

43

Echo 17501604920

HUB, CLUTCH

$12.99

$

In Stock, only 1 left!

0
