HBZ 2610 - RedMax Handheld Blower (SN: 90100101 & Above) (2012-08) HOUSING Parts Diagram

Handheld Blower

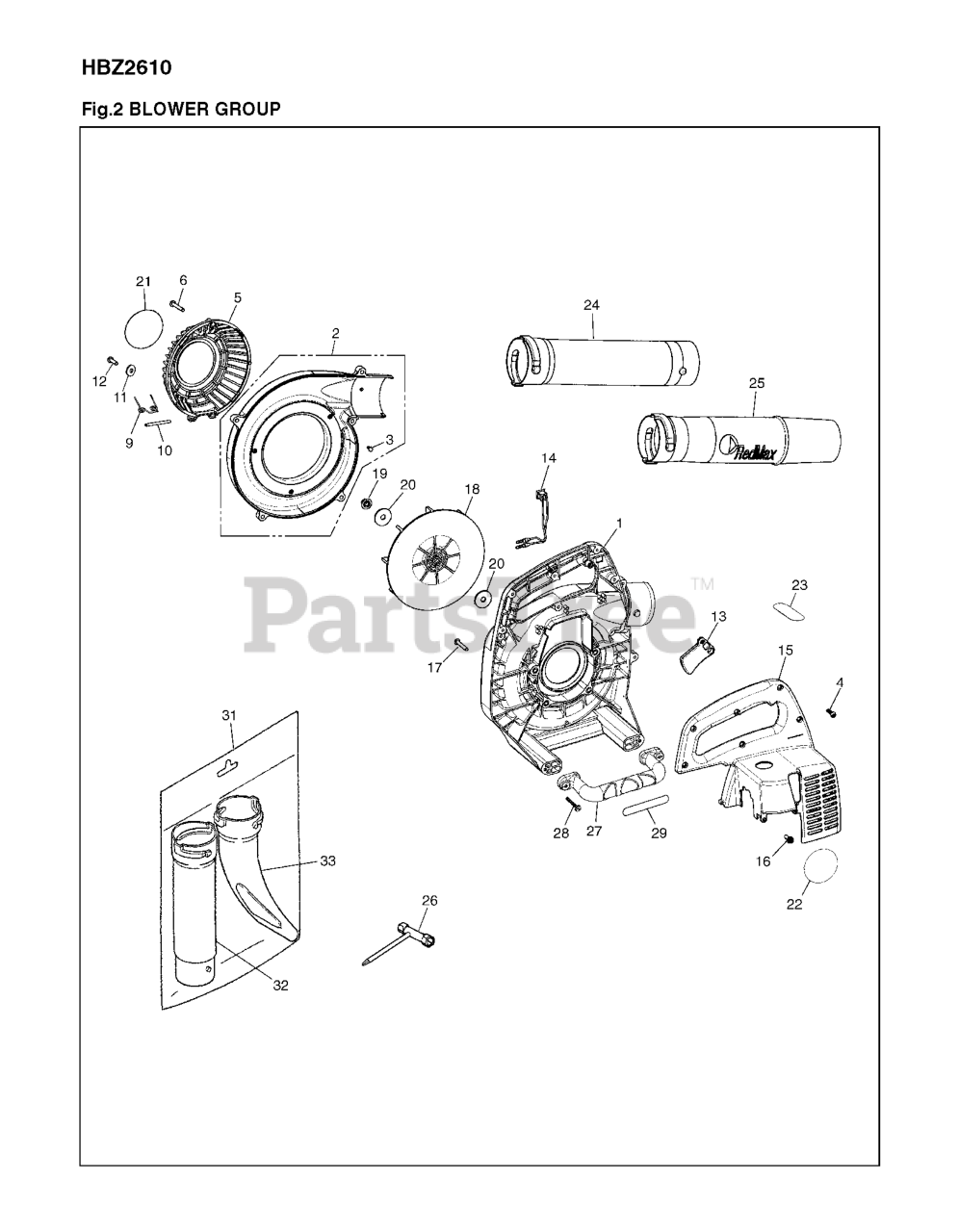

HOUSING Parts Diagram

  • Title

1

RedMax 528896301

VOLUTE CASE

$

$

Not available

2

RedMax 521840301

VOLUTECOVER(HBZ2600)T402211300

$31.99

$

Usually ships in 3-10 days

0

3

RedMax 505152001

SCREW
(Superseded to 516385401)

$

$

Not available

4

RedMax 521863601

SCREW, TORX (RPLS T4970-52001)

$3.49

$

In Stock, only 4 left!

0

5

RedMax 512725701

GUARD.NET

$10.99

$

In Stock, only 1 left!

0

6

RedMax 510478001

BOLT

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 521844701

SPRING

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 521844801

SHAFT

$3.49

$

In Stock, Qty 7

0

11

RedMax 521844901

WASHER

$

$

Not available

12

RedMax 512847901

SCREW

$4.99

$

In Stock, only 3 left!

0

13

RedMax 515704001

LEVER

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 515705701

SWITCH

$13.99

$

Usually ships in 3-10 days

0

15

RedMax 521840201

ENGINE COVER

$43.99

$

Usually ships in 3-10 days

0

16

RedMax 515391301

BOLT

$4.99

$

In Stock, only 3 left!

0

17

RedMax 521863201

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 515704501

FAN

$11.99

$

Usually ships in 3-10 days

0

19

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 515704701

WASHER

$6.99

$

Usually ships in 3-10 days

0

21

RedMax 528896801

$

$

Not available

22

RedMax 528896501

$

$

Not available

23

RedMax 529266201

LABEL,CAUTION
(Superseded to 513666101)

$3.49

$

Usually ships in 3-10 days

0

24

RedMax 504064701

PIPE STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 18

0

25

RedMax 515705501

PIPE.END
(Superseded to 521672301)

$17.99

$

Usually ships in 3-10 days

0

26

RedMax 506686101

SOCKET

$5.99

$

In Stock, only 4 left!

0

27

RedMax 511653201

HANDLE

$22.99

$

Usually ships in 3-10 days

0

28

RedMax 521519401

SCREW

$3.49

$

In Stock, only 3 left!

0

29

RedMax 515705101

LABEL-A.HANDLE

$

$

Not available

31

RedMax 529272801

FLAT NOZZLE KIT

$

$

Not available

32

RedMax 504064701

PIPE STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 18

0

33

RedMax 502444001

FLAT NOZZLE

$26.99

$

Usually ships in 3-10 days

0
