HBZ 2610 - RedMax Handheld Blower (SN: 90100101 & Above) (2009-01) 002 - ENGINE GROUP Parts Diagram

Handheld Blower

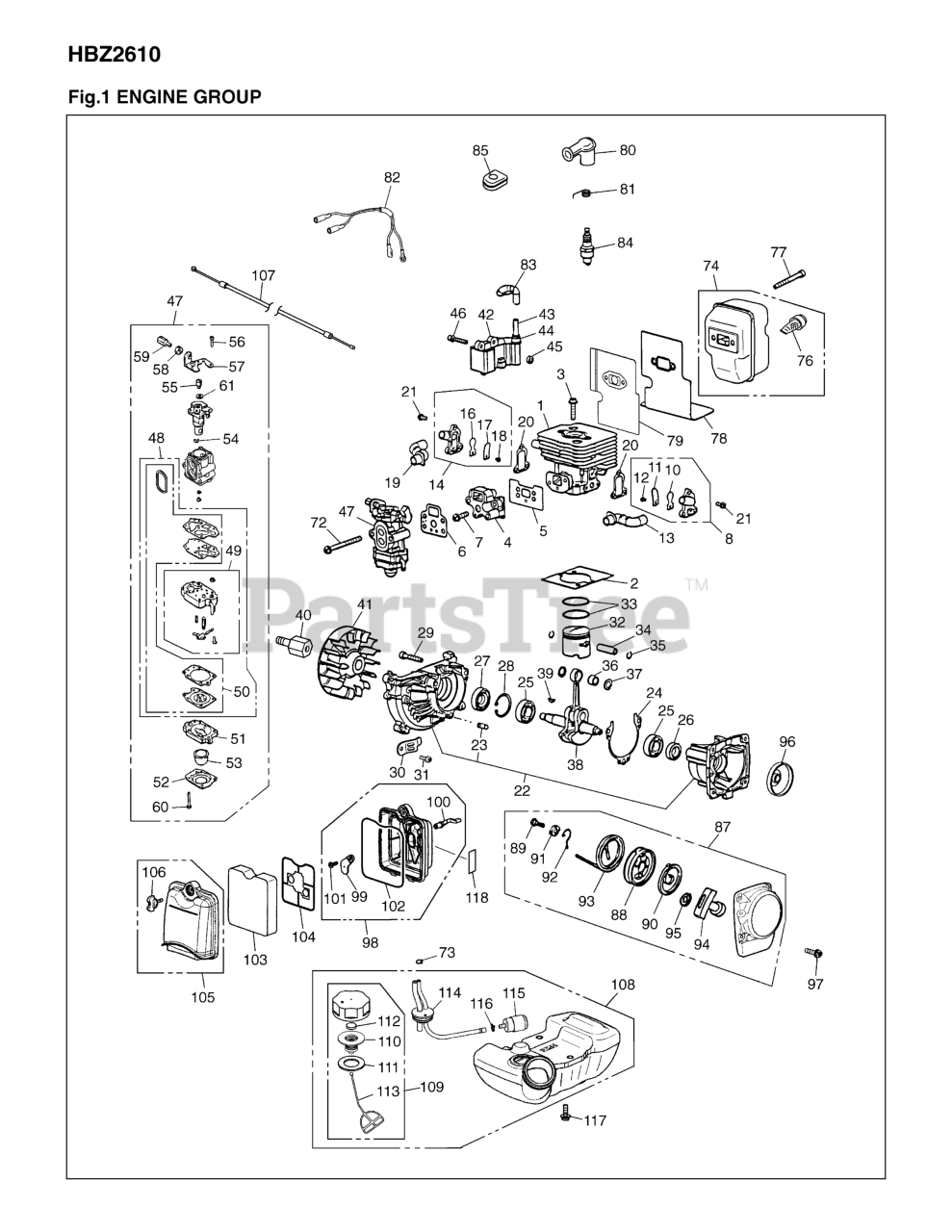

002 - ENGINE GROUP Parts Diagram

  • Title

1

RedMax 848F3R12A2

CYLINDER
(Superseded to 521611601)

$56.99

$

In Stock, only 2 left!

0

2

RedMax 848F3R12B0

GASKET
(Superseded to 521611701)

$6.49

$

In Stock, only 1 left!

0

3

RedMax 482012130

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 2 left!

0

4

RedMax 848F3R14A0

INSULATOR
(Superseded to 521611901)

$17.99

$

In Stock, only 3 left!

0

5

RedMax T151213120

GASKET INSULATOR
(Superseded to 512319201)

$4.99

$

In Stock, only 1 left!

0

6

RedMax 848F4G14C0

GASKET, CARB
(Superseded to 511375801)

$3.49

$

In Stock, only 2 left!

0

7

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

8

RedMax 848F4G1600

REEDVALVE ASSY (S)
(Superseded to 511375901)

$11.99

$

Usually ships in 3-10 days

0

13

RedMax 848F3R16E0

PIPE, AIR S
(Superseded to 521612701)

$9.99

$

In Stock, Qty 6

0

14

RedMax 848F4G1610

REEDVALVE ASSY (F)
(Superseded to 511376001)

$14.99

$

Usually ships in 3-10 days

0

19

RedMax 848F3R16F0

PIPE, AIR F
(Superseded to 521612801)

$8.99

$

In Stock, Qty 10

0

20

RedMax 848F3R16H0

GASKET, VALVE
(Superseded to 521612901)

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 8488141000

BOLT
(Superseded to 504119201)

$2.49

$

In Stock, Qty 8

0

22

RedMax 481021101

CRANKCASE-C

$16.76

$

Usually ships in 3-10 days

0

23

RedMax 262921130

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 481021140

GASKET
(Superseded to 515381801)

$6.49

$

Usually ships in 3-10 days

0

25

RedMax T180221240

BEARING
(Superseded to 523071701)

$12.99

$

In Stock, only 1 left!

0

26

RedMax 481021210

SEAL
(Superseded to 504121501)

$9.99

$

Usually ships in 3-10 days

0

27

RedMax 185021220

SEAL, OIL (RPLS 1140-21220)
(Superseded to 506612901)

$6.49

$

In Stock, only 2 left!

0

28

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

29

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

30

RedMax 481022110

GUARD

$

$

Not available

31

RedMax 482012350

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

32

RedMax 848F4G41A0

PISTON
(Superseded to 511376101)

$28.99

$

In Stock, only 3 left!

0

33

RedMax 8488C34101

RING
(Superseded to 506618101)

$11.99

$

In Stock, only 3 left!

0

34

RedMax 8488B82800

PIN
(Superseded to 521522601)

$6.49

$

In Stock, only 4 left!

0

35

RedMax 126041320

RING
(Superseded to 505045201)

$4.99

$

In Stock, Qty 11

0

36

RedMax 8488881100

BEARING
(Superseded to 505040901)

$9.99

$

In Stock, only 1 left!

0

37

RedMax 110141340

WASHER
(Superseded to 516181201)

$

$

Not available

38

RedMax 848F3R4200

CRANKSHAFT COMP
(Superseded to 521613201)

$121.99

$

Usually ships in 3-10 days

0

39

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 551643230

EXTENSION
(Superseded to 515426801)

$10.99

$

Usually ships in 3-10 days

0

41

RedMax 481071110

ROTOR
(Superseded to 515384501)

$48.99

$

Usually ships in 3-10 days

0

42

RedMax T151371200

COIL ASSY
(Superseded to 512321901)

$68.99

$

In Stock, only 1 left!

0

43

RedMax T151371220

CORD
(Superseded to 521750701)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 261671320

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 126071261

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

47

RedMax 848F4G8100

CARBURETOR ASSY
(Superseded to 511376201)

$194.99

$

In Stock, only 1 left!

0

48

RedMax 848F600631

REBUILD KIT

$

$

Not available

49

RedMax 185081450

BODY ASSY
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

50

RedMax 481006022

GASKET KIT

$

$

Not available

51

RedMax 185081490

BODY
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

52

RedMax 185081520

COVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

53

RedMax 175181510

PUMP
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

54

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

55

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

56

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 550081120

BRACKET

$7.42

$

Usually ships in 3-10 days

0

58

RedMax 175181180

NUT
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

59

RedMax 191881170

SCREW
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

60

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 2 left!

0

61

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

72

RedMax 482082310

BOLT
(Superseded to 515390701)

$4.99

$

Usually ships in 3-10 days

0

73

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, only 2 left!

0

74

RedMax 848F3U1510

MUFFLER ASSY
(Superseded to 528061001)

$51.99

$

Usually ships in 3-10 days

0

76

RedMax 481015140

ARRESTER
(Superseded to 506615601)

$9.99

$

In Stock, only 2 left!

0

77

RedMax T495057030

BOLT TORX
(Superseded to 521861901)

$

$

Not available

78

RedMax 848F3U15C1

GASKET
(Superseded to 511368401)

$13.99

$

Usually ships in 3-10 days

0

79

RedMax 848F3U15D0

PLATE
(Superseded to 511368501)

$14.99

$

Usually ships in 3-10 days

0

80

RedMax T207072210

CAP

$4.15

$

Usually ships in 3-10 days

0

81

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

82

RedMax T151371240

CORD COMP

$5.66

$

Usually ships in 3-10 days

0

83

RedMax T151371320

TUBE
(Superseded to 521750901)

$

$

Not available

84

RedMax 369991867

SPARK PLUG
(Superseded to 544260901)

$4.46

$

Usually ships in 3-10 days

0

85

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

87

RedMax 481075100

RECOIL ASSEMBLY
(Superseded to 515385401)

$66.99

$

In Stock, only 1 left!

0

88

RedMax 450075120

REEL
(Superseded to 504114701)

$18.99

$

In Stock, only 4 left!

0

89

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

90

RedMax 185075130

SPRING
(Superseded to 504115001)

$18.99

$

In Stock, only 4 left!

0

91

RedMax 450075180

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 10

0

92

RedMax 450075190

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 10

0

93

RedMax 481075160

ROPE
(Superseded to 504114901)

$9.49

$

In Stock, only 1 left!

0

94

RedMax 333075421

KNOB
(Superseded to 506614701)

$6.99

$

In Stock, only 3 left!

0

95

RedMax 481075170

PLATE
(Superseded to 521342901)

$3.99

$

In Stock, only 1 left!

0

96

RedMax 450075210

PULLEY
(Superseded to 504114401)

$9.99

$

In Stock, only 2 left!

0

97

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

98

RedMax T151382100

BODY A
(Superseded to 511363601)

$20.99

$

In Stock, only 2 left!

0

99

RedMax T151282130

PLATE, CHOKE
(Superseded to 521750101)

$3.49

$

Usually ships in 3-10 days

0

100

RedMax T160082140

LEVER
(Superseded to 521760501)

$4.99

$

In Stock, only 4 left!

0

101

RedMax T110882190

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

102

RedMax T151382120

PACKING
(Superseded to 521751301)

$4.99

$

In Stock, only 2 left!

0

103

RedMax T151382170

ELEMENT
(Superseded to 504115301)

$6.49

$

Usually ships in 3-10 days

0

104

RedMax 848F0283K2

SCREEN (REPLACES -83K1)
(Superseded to 521607901)

$5.99

$

In Stock, only 2 left!

0

105

RedMax 848F3C8321

COVER ASSY
(Superseded to 521611001)

$11.99

$

Usually ships in 3-10 days

0

106

RedMax T110882220

KNOB
(Superseded to 506673901)

$3.49

$

In Stock, Qty 6

0

107

RedMax 551683101

CABLE
(Superseded to 515427701)

$5.99

$

Usually ships in 3-10 days

0

108

RedMax 848F438503

TANK ASSY
(Superseded to 579141802)

$96.99

$

In Stock, only 2 left!

0

109

RedMax T101585202

CAP ASSY
(Superseded to 504117701)

$30.99

$

In Stock, only 3 left!

0

110

RedMax 450085300

HOLDER ASSY
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

111

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

In Stock, only 2 left!

0

112

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 1 left!

0

113

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

114

RedMax 481085300

PIPE COMP
(Superseded to 579138306)

$42.99

$

In Stock, only 4 left!

0

115

RedMax 330285401

FILTER ASSY

$

$

Not available

116

RedMax 126085460

CLIP
(Superseded to 506707001)

$4.99

$

In Stock, Qty 8

0

117

RedMax 482085510

BOLT TORX
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

118

RedMax 113382060

LABEL
(Superseded to 516199901)

$3.99

$

Usually ships in 3-10 days

0
