HBZ 2601 - RedMax Handheld Blower (SN: 60100101 & Above) PRODUCT COMPLETE Parts Diagram

Handheld Blower

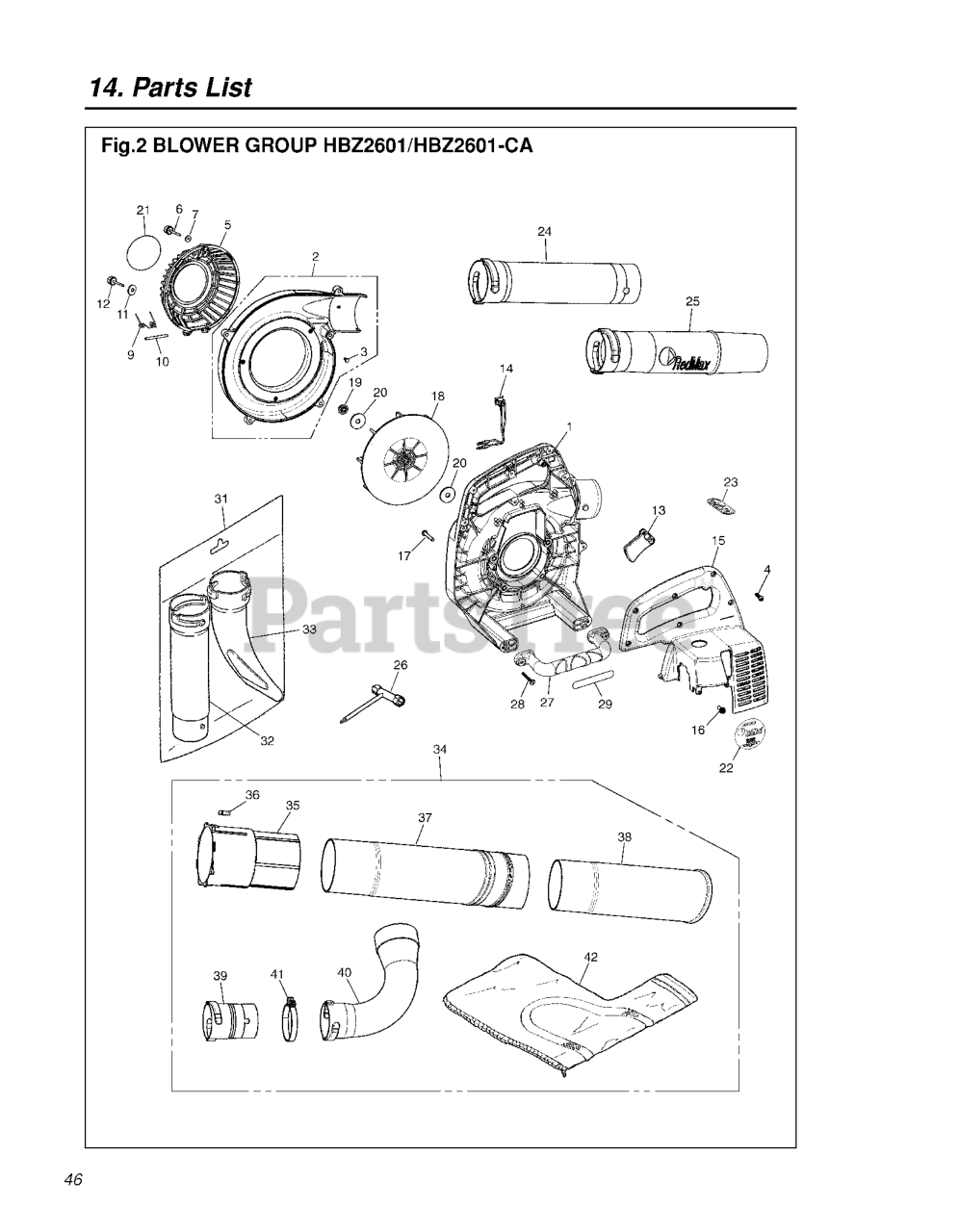

PRODUCT COMPLETE Parts Diagram

  • Title

1

RedMax 511658901

VOLUTE CASE(R-55A1&681111110)

$

$

Not available

2

RedMax 521840301

VOLUTECOVER(HBZ2600)T402211300

Note: . 3

$31.99

$

Usually ships in 3-10 days

0

3

RedMax 505152001

SCREW
(Superseded to 516385401)

$

$

Not available

4

RedMax 521863601

SCREW, TORX (RPLS T4970-52001)

$3.49

$

In Stock, only 4 left!

0

5

RedMax 512725701

GUARD.NET

$10.99

$

In Stock, only 1 left!

0

6

RedMax 510478001

BOLT

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 521844601

WASHER

$3.49

$

In Stock, only 1 left!

0

9

RedMax 521844701

SPRING

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 521844801

SHAFT

$3.49

$

In Stock, Qty 7

0

11

RedMax 521844901

WASHER

$

$

Not available

12

RedMax 512847901

SCREW

$4.99

$

In Stock, only 3 left!

0

13

RedMax 515704001

LEVER

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 515705701

SWITCH

$13.99

$

Usually ships in 3-10 days

0

15

RedMax 521840201

ENGINE COVER

$43.99

$

Usually ships in 3-10 days

0

16

RedMax 515391301

BOLT

$4.99

$

In Stock, only 3 left!

0

17

RedMax 521863201

SCREW

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 515704501

FAN

$11.99

$

Usually ships in 3-10 days

0

19

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 515704701

WASHER

$6.99

$

Usually ships in 3-10 days

0

21

RedMax 528890101

Note: 848L0A90S0

$

$

Not available

22

RedMax 528893801

OBSOLETE - LABEL RECOIL FOR HBZ2601

Note: 848L0G90C0

$3.34

$

Usually ships in 3-10 days

0

23

RedMax 521534401

Caution Label

$3.49

$

Usually ships in 3-10 days

0

24

RedMax 504064701

PIPE STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 17

0

25

RedMax 515705501

PIPE.END
(Superseded to 521672301)

$17.99

$

In Stock, only 3 left!

0

26

RedMax 506686101

SOCKET

$5.99

$

In Stock, only 4 left!

0

27

RedMax 511653201

HANDLE

$22.99

$

Usually ships in 3-10 days

0

28

RedMax 521519401

SCREW

$3.49

$

In Stock, only 3 left!

0

29

RedMax 515705101

LABEL-A.HANDLE

$

$

Not available

31

RedMax 529272801

FLAT NOZZLE KIT

Note: HBN100. 32 33

$

$

Not available

32

RedMax 504064701

PIPE STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 17

0

33

RedMax 502444001

FLAT NOZZLE

$26.99

$

Usually ships in 3-10 days

0

34

RedMax TBD

Note: DB00003. 35 36 37-41

$

$

Not available

35

RedMax 512701501

PIPE, A
(Superseded to 511950501)

$206.99

$

In Stock, only 1 left!

0

36

RedMax 512701601

$

$

Not available

37

RedMax 512702401

PIPE, B

$109.99

$

Usually ships in 3-10 days

0

38

RedMax 512703501

PIPE, C

$

$

Not available

39

RedMax 521842301

EXTENSION (PIPE)

$

$

Not available

40

RedMax 521842401

ELBOW

$

$

Not available

41

RedMax 521842501

CLAMP

$

$

Not available

42

RedMax 521842601

BAG, DUST

$145.99

$

Usually ships in 3-10 days

0
