HBZ 2601 - RedMax Handheld Blower (SN: 60100101 & Above) ENGINE Parts Diagram

Handheld Blower

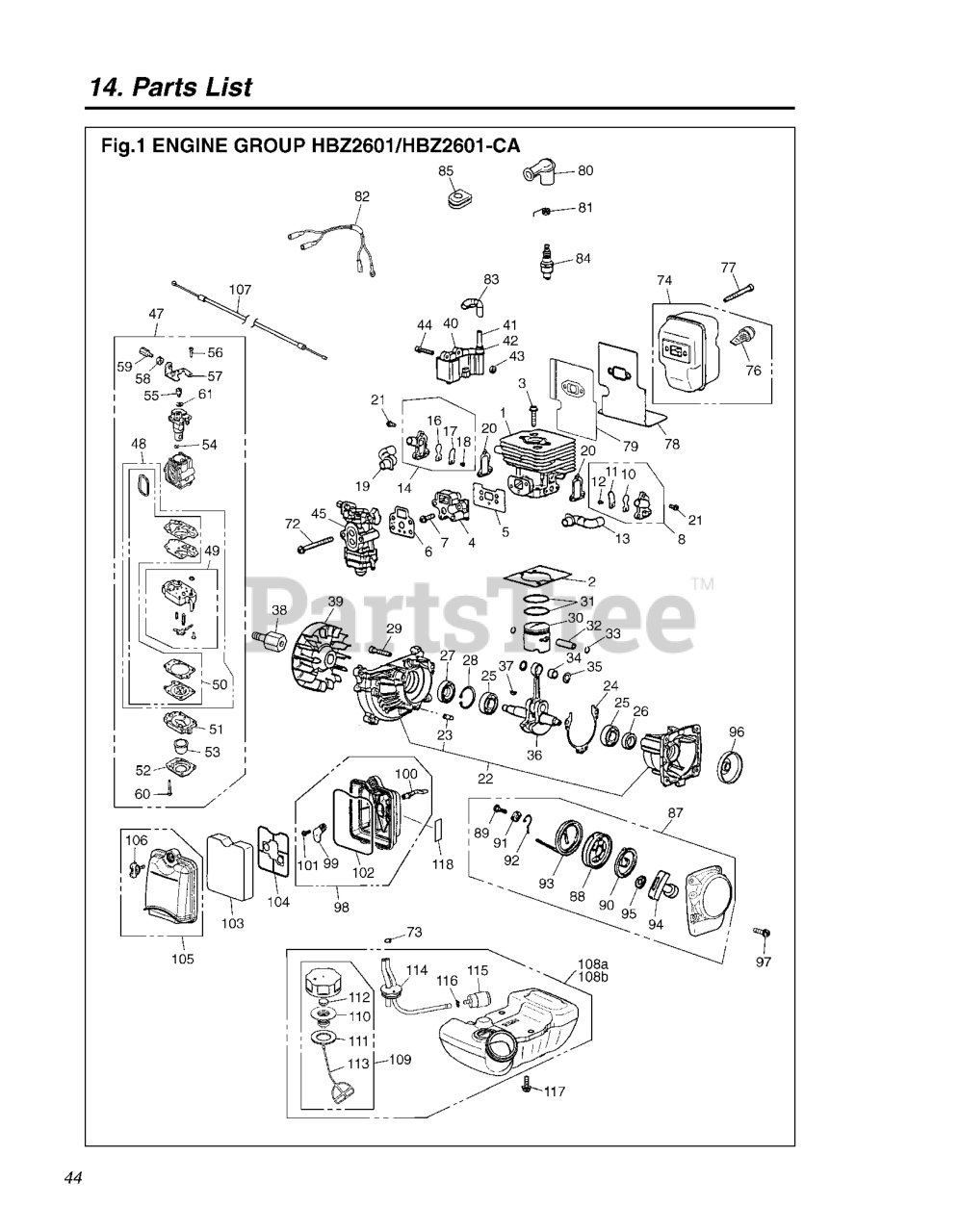

ENGINE Parts Diagram

  • Title

1

RedMax 521611601

CYLINDER

$56.99

$

In Stock, only 2 left!

0

2

RedMax 521611701

GASKET, BASE

$6.49

$

In Stock, only 1 left!

0

3

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 2 left!

0

4

RedMax 521611901

INSULATOR

$17.99

$

In Stock, only 3 left!

0

5

RedMax 512319201

GASKET.INSU

$4.99

$

In Stock, only 1 left!

0

6

RedMax 515379601

GASKET

$4.99

$

In Stock, only 3 left!

0

7

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

8

RedMax 521612301

AIR CHECKER (S) ASSY

Note: . 10 11 12

$27.99

$

Usually ships in 3-10 days

0

10

RedMax 521612601

REEDVALVE

$12.99

$

Usually ships in 3-10 days

0

11

RedMax 515380701

STOPPER

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 515381101

SCREW

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 521612701

PIPE AIR (S)

$9.99

$

In Stock, Qty 6

0

14

RedMax 521612501

AIR CHECKER (F) ASSY

Note: . 16 17 18

$36.99

$

Usually ships in 3-10 days

0

16

RedMax 521612601

REEDVALVE

$12.99

$

Usually ships in 3-10 days

0

17

RedMax 515380701

STOPPER

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 515381101

SCREW

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 521612801

PIPE AIR (F)

$8.99

$

In Stock, Qty 10

0

20

RedMax 521612901

GASKET, VALVE

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 504119201

BOLT
(Superseded to 506616401)

$2.49

$

In Stock, Qty 8

0

22

RedMax 515381601

CRANKCASE-C

$21.99

$

Usually ships in 3-10 days

0

23

RedMax 505296101

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 515381801

GASKET.CASE

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 506610301

BEARING

$12.99

$

In Stock, only 1 left!

0

26

RedMax 504121501

SEAL

$9.99

$

Usually ships in 3-10 days

0

27

RedMax 506612901

SEAL
(Superseded to 516539201)

$6.49

$

In Stock, only 2 left!

0

28

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

29

RedMax 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

30

RedMax 521613101

PISTON

$48.99

$

In Stock, only 1 left!

0

31

RedMax 506618101

RING

$11.99

$

In Stock, only 3 left!

0

32

RedMax 521522601

PIN (RPLS T151341310)

$6.49

$

In Stock, only 4 left!

0

33

RedMax 505045201

RING

$4.99

$

In Stock, Qty 11

0

34

RedMax 521520701

BEARING (R550041410&114041330)
(Superseded to 505040901)

$9.99

$

In Stock, only 1 left!

0

35

RedMax 505041001

WASHER

$4.99

$

In Stock, only 2 left!

0

36

RedMax 521613201

CRANKSHAFT COMP(RPLS481042000)

$121.99

$

Usually ships in 3-10 days

0

37

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 515426801

EXTENSION.

$10.99

$

Usually ships in 3-10 days

0

39

RedMax 515384501

ROTOR

$48.99

$

Usually ships in 3-10 days

0

40

RedMax 512321901

COIL-A

$68.99

$

In Stock, only 1 left!

0

41

RedMax 521750701

CORD (BLACK)

$4.99

$

Usually ships in 3-10 days

0

42

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

43

RedMax 504118601

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 18

0

47

RedMax 511368601

CARBURETOR

Note: . 48 49 50-61

$

$

Not available

48

RedMax 506657901

REBUILD KIT

Note: . 49 50

$100.99

$

In Stock, Qty 20+

0

49

RedMax 502238401

CARBURETOR BODY

$53.99

$

In Stock, Qty 5

0

50

RedMax 506615501

GASKET KIT

$74.99

$

In Stock, only 1 left!

0

51

RedMax 506740901

BODY

$34.99

$

Usually ships in 3-10 days

0

52

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

53

RedMax 505306701

PUMP

$9.49

$

Usually ships in 3-10 days

0

54

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

55

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

56

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

58

RedMax 506612601

NUT
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

59

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

60

RedMax 506741101

SCREW

$4.99

$

In Stock, only 2 left!

0

61

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

72

RedMax 515390701

BOLT

$4.99

$

Usually ships in 3-10 days

0

73

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

74

RedMax 528061001

MUFFLER-A

Note: . 76

$51.99

$

Usually ships in 3-10 days

0

76

RedMax 506615601

ARRESTER

$9.99

$

In Stock, only 2 left!

0

77

RedMax 512846101

BOLT

$

$

Not available

78

RedMax 511368401

GASKET, MUFFLER

$13.99

$

Usually ships in 3-10 days

0

79

RedMax 511368501

PLATE, MUFFLER

$14.99

$

Usually ships in 3-10 days

0

80

RedMax 512444001

CAP

$7.49

$

In Stock, only 4 left!

0

81

RedMax 505298901

SPRING

$4.99

$

Usually ships in 3-10 days

0

82

RedMax 512322101

OBSOLETE - CORD-C

$

$

Not available

83

RedMax 521750901

TUBE

$

$

Not available

84

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

85

RedMax 515415301

GROMMET
(Superseded to 521358801)

$3.99

$

Usually ships in 3-10 days

0

87

RedMax 515385401

RECOIL-A

Note: . 88 89 90-95

$66.99

$

In Stock, only 1 left!

0

88

RedMax 504114701

REEL

$11.99

$

In Stock, Qty 12

0

89

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

90

RedMax 504115001

SPRING, SPIRAL
(Superseded to 516541701)

$11.99

$

In Stock, Qty 12

0

91

RedMax 504114601

COLLAR
(Superseded to 521327101)

$7.49

$

In Stock, Qty 10

0

92

RedMax 504114801

SWING ARM

$7.49

$

In Stock, Qty 10

0

93

RedMax 504114901

ROPE

$9.49

$

In Stock, only 1 left!

0

94

RedMax 506614701

KNOB

$6.99

$

In Stock, only 3 left!

0

95

RedMax 515385601

PLATE.STOPPER

$3.99

$

In Stock, only 1 left!

0

96

RedMax 504114401

PULLEY

$9.99

$

In Stock, only 2 left!

0

97

RedMax 515391301

BOLT

$4.99

$

In Stock, only 3 left!

0

98

RedMax 512322701

BODY A
(Superseded to 511363601)

Note: . 99 100 101 102

$20.99

$

In Stock, only 2 left!

0

99

RedMax 506684301

PLATE.CHOKE

$3.49

$

Usually ships in 3-10 days

0

100

RedMax 521760501

LEVER CHOKE

$4.99

$

In Stock, only 4 left!

0

101

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

102

RedMax 521751301

PACKING

Note: T151381210

$4.99

$

In Stock, only 2 left!

0

103

RedMax 504115301

ELEMENT
(Superseded to 521751401)

$6.49

$

Usually ships in 3-10 days

0

104

RedMax 521607901

SCREEN

$5.99

$

In Stock, only 2 left!

0

105

RedMax 521611001

COVER A (RPLS T151382200)

Note: . 106

$11.99

$

Usually ships in 3-10 days

0

106

RedMax 506673901

KNOB

$3.49

$

In Stock, Qty 6

0

107

RedMax 515427701

CABLE

$5.99

$

Usually ships in 3-10 days

0

108A

RedMax 521610601

%TANK ASSY
(Superseded to 579141802)

Note: . 109 110 111-116

$96.99

$

In Stock, only 2 left!

0

109

RedMax 505309601

CAP A

$11.99

$

In Stock, only 2 left!

0

110

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

111

RedMax 506744301

PACKING

$4.99

$

In Stock, only 2 left!

0

112

RedMax 506746801

FILTER

$6.49

$

In Stock, only 1 left!

0

113

RedMax 506745801

STOPPER

$4.99

$

In Stock, only 3 left!

0

114

RedMax 515387201

PIPE-C
(Superseded to 579138306)

$42.99

$

In Stock, only 4 left!

0

115

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

116

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 8

0

117

RedMax 515391301

BOLT

$4.99

$

In Stock, only 3 left!

0

118

RedMax 513185301

LABEL

$3.99

$

Usually ships in 3-10 days

0
