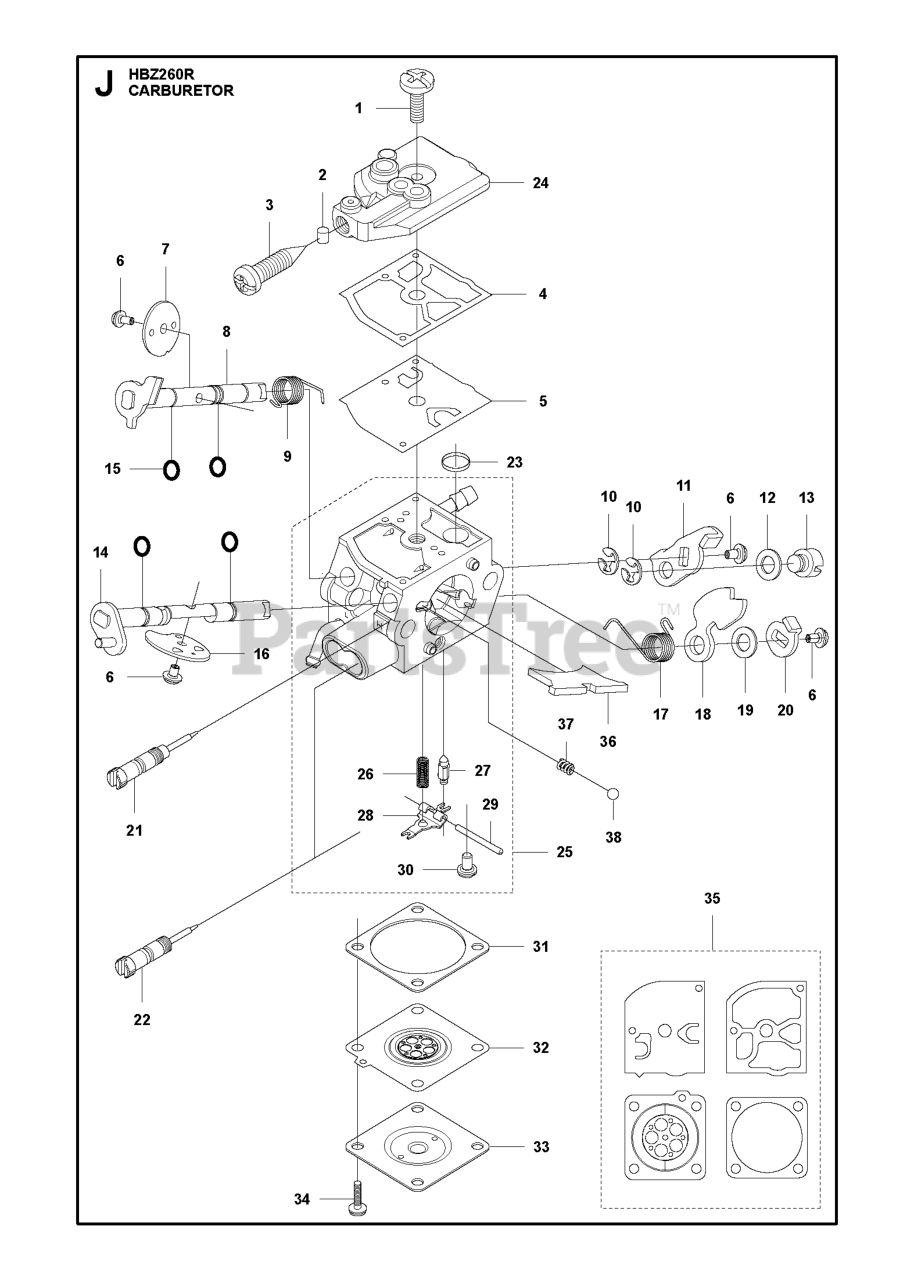

HBZ 260 R (967089601) - RedMax Handheld Blower (2017-03) CARBURETOR Parts Diagram

Handheld Blower

CARBURETOR Parts Diagram

  • Title

$3.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$14.99

$

In Stock, only 1 left!

0

4

RedMax 577899401

GASKET PUMP

$3.49

$

Usually ships in 3-10 days

0

5

RedMax 577899501

DIAPHRAGM PUMP

$6.99

$

In Stock, only 1 left!

0

$

$

Not available

7

RedMax 587712801

VALVE THROTTLE

$

$

Not available

8

RedMax 587713001

SHAFT ASSY THROTTLE

$

$

Not available

9

RedMax 587712901

SPRING THROTTLE RETURN

$

$

Not available

10

$4.99

$

Usually ships in 3-10 days

0

11

$

$

Not available

12

$3.49

$

Usually ships in 3-10 days

0

13

$9.99

$

In Stock, only 4 left!

0

14

RedMax 587714101

SHAFT ASSY CHOKE

$7.99

$

Usually ships in 3-10 days

0

15

$

$

Not available

16

$

$

Not available

17

RedMax 587713701

SPRING RETURN

$

$

Not available

18

$

$

Not available

19

$

$

Not available

20

$6.99

$

Usually ships in 3-10 days

0

21

RedMax 585319101

SCREW IDLE MIXTURE H225-0007B

$

$

Not available

22

$

$

Not available

23

RedMax 577900301

STRAINER

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 587713801

PUMP COVER

$

$

Not available

$

$

Not available

26

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 579631901

VALVE INLET

$11.99

$

Usually ships in 3-10 days

0

28

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

30

RedMax 578390301

SCREW M3X6

$

$

Not available

31

RedMax 577899901

GASKET METERING CHAMBER

$3.49

$

In Stock, only 1 left!

0

32

RedMax 577900101

DIAPHRAGM ASSY METERING

$7.99

$

Usually ships in 3-10 days

0

33

RedMax 577900001

COVER METERING CHAMBER

$

$

Not available

34

RedMax 577900501

SCREW M3X7

$

$

Not available

35

RedMax 577901801

GASKET KIT

$11.99

$

In Stock, only 1 left!

0

36

RedMax 587713501

PLATE SPLIT

$

$

Not available

37

RedMax 577901601

SPRING FRICTION

$7.99

$

Usually ships in 3-10 days

0

38

RedMax 577901501

BALL STEEL

$

$

Not available
