HBC 40 (UT-15069) - Homelite String Trimmer Zama Carburetor Parts Diagram

String Trimmer

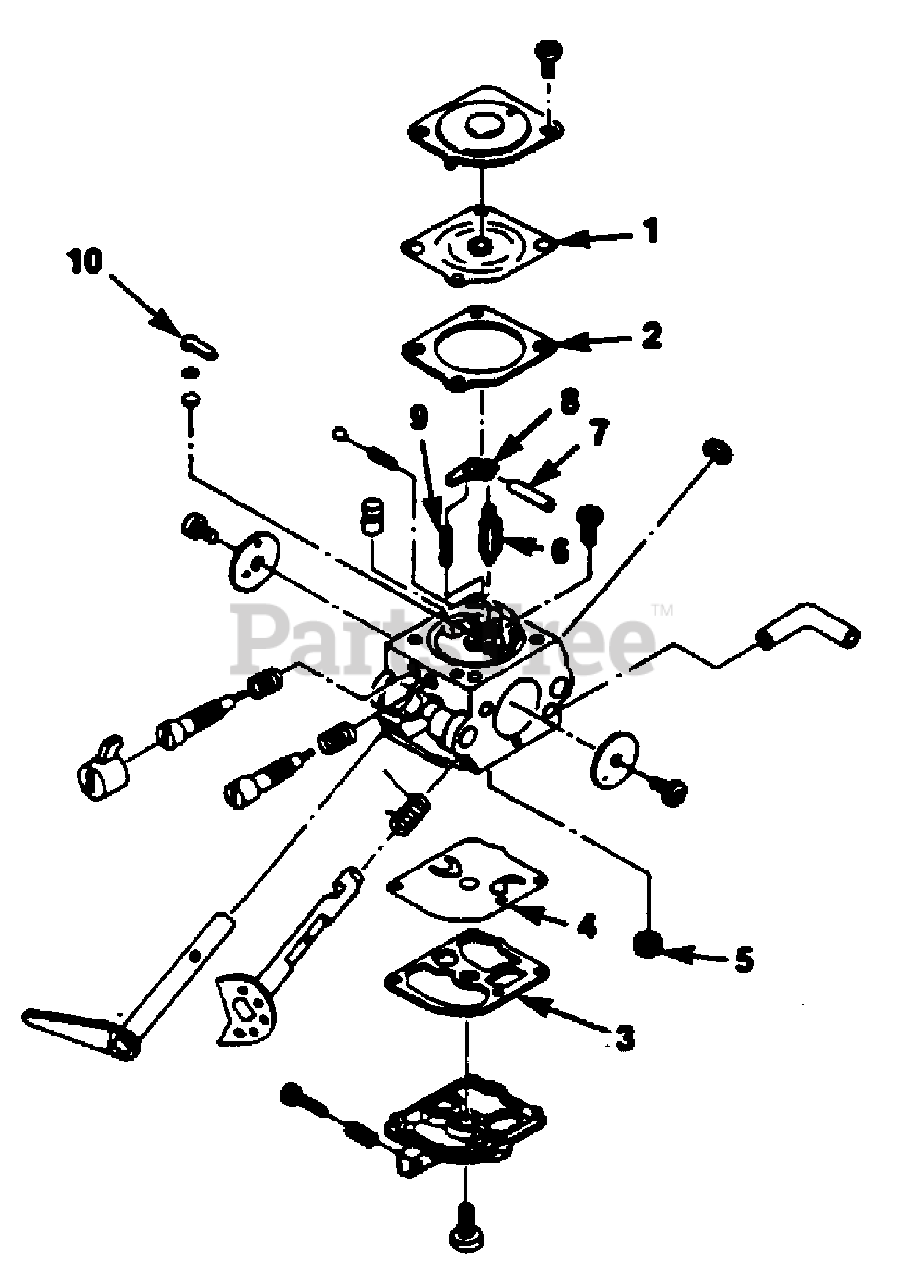

Zama Carburetor Parts Diagram

  • Title
1

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

Homelite 03171

Part of Gasket/Diaphragm Kit (includes 1-4)
(Superseded to A03904)

$

$

Not available

2

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

Homelite 03171

Part of Gasket/Diaphragm Kit (includes 1-4)
(Superseded to A03904)

$

$

Not available

3

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

Homelite 03171

Part of Gasket/Diaphragm Kit (includes 1-4)
(Superseded to A03904)

$

$

Not available

4

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

Homelite 03171

Part of Gasket/Diaphragm Kit (includes 1-4)
(Superseded to A03904)

$

$

Not available

5

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

6

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

7

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

8

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

9

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available

10

Homelite 03172

Part of Repair Kit (includes 1-10)

$

$

Not available
