HBC 40 (UT-15069) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

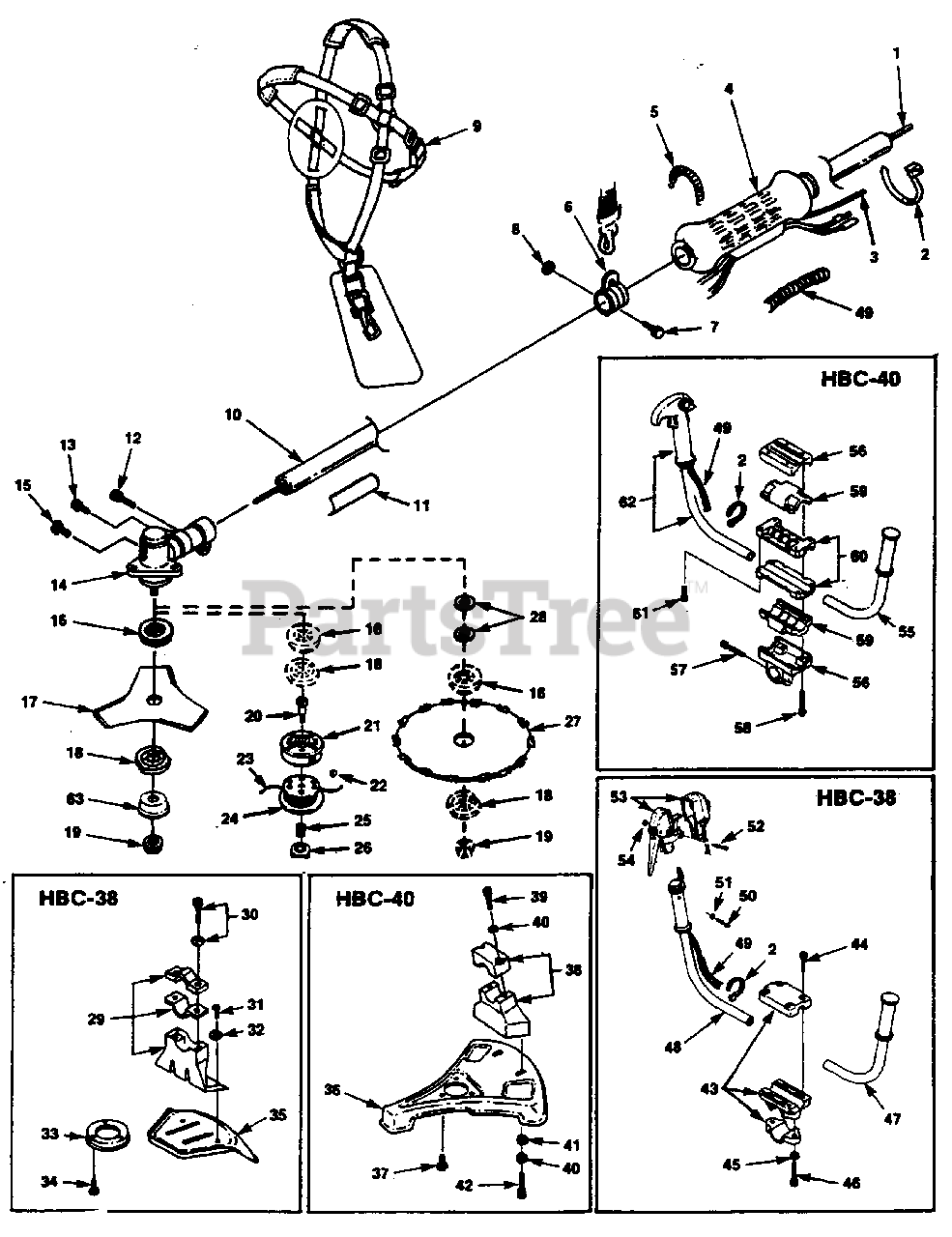

Boom & Head Parts Diagram

  • Title

1

Homelite 03017

DRIVE SHAFT

$

$

Not available

2

Homelite JA991636

TIE- Cable

$

$

Not available

3

Homelite 02077

CABLE- Throttle
(Superseded to A06426)

$43.99

$

Usually ships in 3-7 days

0

4

Homelite 03018

GRIP/HIP PAD

$58.99

$

Usually ships in 3-7 days

0

6

Homelite 02093

BAND- Hanger

$50.99

$

Usually ships in 3-7 days

0

7

Homelite 04025

BOLT & WASHER- Hanger

$

$

Not available

8

Homelite 04027

NUT-Hanger
(Superseded to 00677)

$

$

Not available

9

Homelite 02092

HARNESS- Shoulder
(Superseded to 028361)

$

$

Not available

10

Homelite A04052

HOUSING- Drive shaft

$

$

Not available

11

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

14

Homelite A02115

GEAR HEAD

$

$

Not available

15

Homelite 04112

SCREW&WASHER-Grease

$

$

Not available

16

Homelite 04185

WASHER- Gear Head

$

$

Not available

17

Homelite 031641

BLADE- Tri-Arc
(Superseded to 06896)

$

$

Not available

18

Homelite 04186

WASHER- Gear Head (flat)
(Superseded to GM406715)

$

$

Not available

19

Homelite 03997

NUT- Gear Head
(Superseded to UP07221)

$

$

Not available

20

Homelite 04139

CONNECTOR- Drive

$

$

Not available

21

Homelite A04165

HOUSING & EYELETS

$

$

Not available

22

Homelite 04141

EYELETS

$

$

Not available

23

Homelite 9807101

STRING- Replacement (.105 Dia., 1 Ib. box)

$

$

Currently unavailable

Homelite 9807104

STRING- Replacement (.105 Dia., 3 Ib. box)
(Superseded to G07807)

$131.99

$

Usually ships in 3-7 days

0

24

Homelite A04166

SPOOL & STRING

$

$

Not available

25

Homelite 04143

SPRING

$

$

Not available

26

Homelite 04144

NUT- Retainer

$

$

Not available

27

Homelite A03928

MACHETE BLADE KIT
(Superseded to UP00383)

$

$

Currently unavailable

28

Homelite 24548

SPACER

$

$

Not available

36

Homelite 021221

GUARD- Blade

$

$

Not available

37

Homelite 88182

SCREW-Mach. (M5 x 10)

$

$

Not available

38

Homelite A04050

GUARD-Stand

$286.99

$

Usually ships in 3-7 days

0

39

Homelite 88180

SCREW- Socket (M6 x 1)

$

$

Not available

40

Homelite 88313

WASHER- Lock (M6)

$

$

Not available

41

Homelite 88405

WASHER- Flat (M6)

$

$

Not available

42

Homelite 88181

SCREW- Socket hd. (M6 x 12)

$7.49

$

Usually ships in 3-7 days

0

49

Homelite A03926

SLEEVING

$

$

Currently unavailable

55

Homelite A03268

HANDLE BAR- Left
(Superseded to UP00392)

$24.99

$

Usually ships in 3-7 days

0

56

Homelite A03947

HOUSNG ASSEMBLY

$55.99

$

Usually ships in 3-7 days

0

57

Homelite 03943

TUBING SCREW (M5 x 30)

$

$

Not available

58

Homelite 03944

HANDLE SCREW (M5 x 40)

$

$

Not available

59

Homelite A03945

JOINT- Rubber

$

$

Not available

60

Homelite A03946

CAST JOINT ASSEMBLY

$

$

Currently unavailable

61

Homelite 03942

JOINT SCREW (M5 x 25)

$

$

Not available

62

Homelite A03168

HANDLE BAR & THROTTLE (R.H.)
(Superseded to A07303)

$

$

Not available
