HBC 40 (UT-15069) - Homelite String Trimmer Air Filter & Carburetor Parts Diagram

String Trimmer

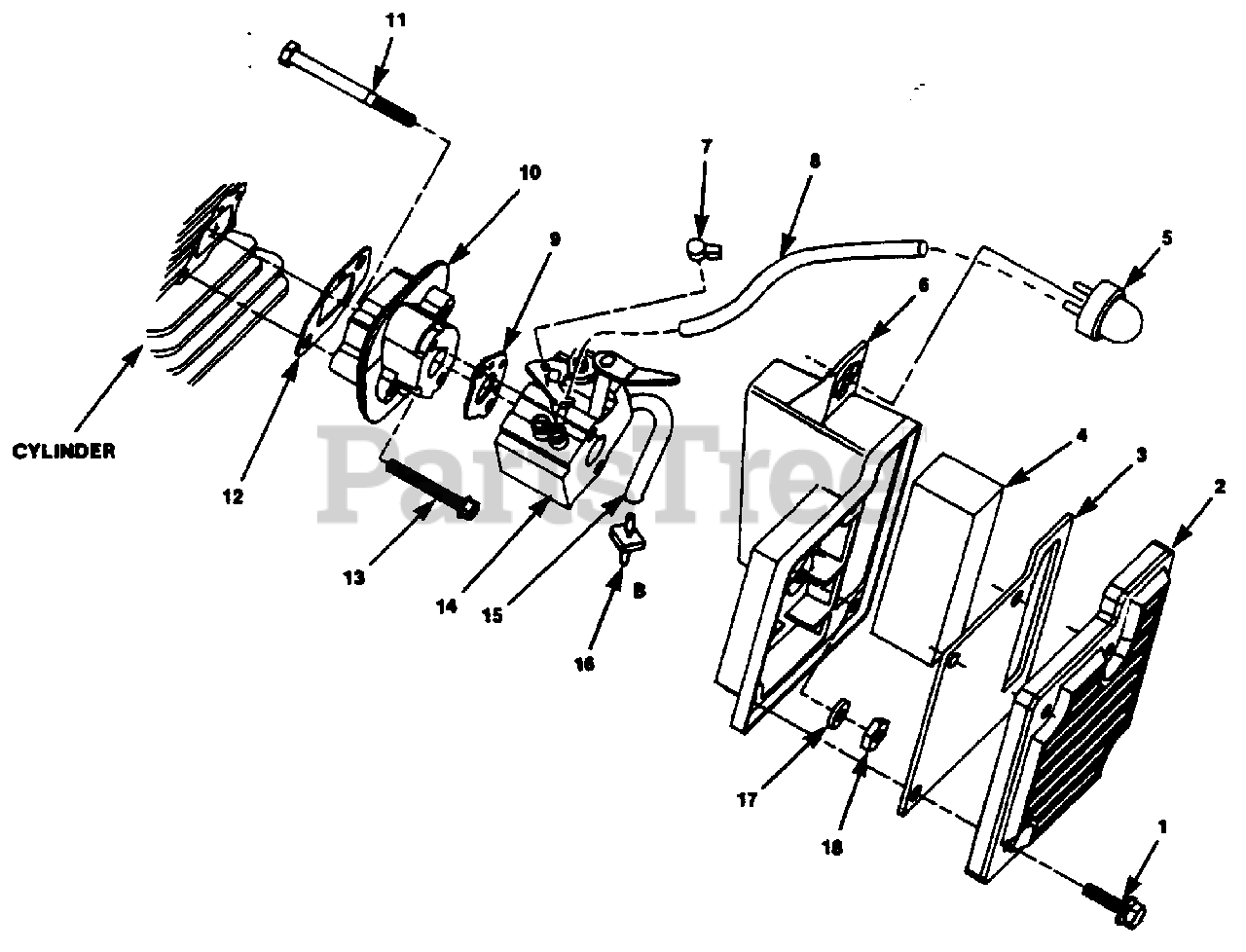

Air Filter & Carburetor Parts Diagram

  • Title

1

Homelite 88079

SCREW- Sems hex hd (1/4-20 x 7/8")

$

$

Not available

2

Homelite 02065

COVER- Air filter

$

$

Not available

3

Homelite 02940

FILTER- Felt air

$

$

Not available

4

Homelite 02939

FILTER- Foam air

$

$

Not available

5

Homelite 01183

BULB- Primer
(Superseded to 300780002)

$

$

Not available

6

Homelite A03313

AIR FILTER BOX

$

$

Currently unavailable

7

Homelite 03492

CAP- Limit (HBC-40)

$

$

Not available

Homelite 03493

CAP- Limit (HBC-38)

$

$

Not available

8

Homelite 0143920

TUBING- Rubber (5")

$4.49

$

In Stock, only 2 left!

0

9

Homelite 65016

GASKET

$

$

Not available

10

Homelite 02074

SPACER- Carburetor

$

$

Not available

11

Homelite 02075

BOLT- Carburetor mtg. (8-32 x 2")

$

$

Not available

12

Homelite 01029

GASKET- Carburetor spacer
(Superseded to UP06622)

$

$

Not available

13

Homelite 88045

SCREW- Carb. spacer (8-32 x 1 1/4")

$

$

Not available

14

Homelite A03893

CARBURETOR (Zama) (HBC-40)

$

$

Currently unavailable

Homelite A03894

CARBURETOR (Walbro) (HBC-38)

$

$

Currently unavailable

15

Homelite 9477220

TUBING- Rubber
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

16

Homelite 02067

FITTING- Fuel inline

$

$

Not available

17

Homelite 841031

WASHER- Flat

$

$

Not available

18

Homelite 81009

NUT

$

$

Not available
