HBC 30 B (UT-15086-C) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

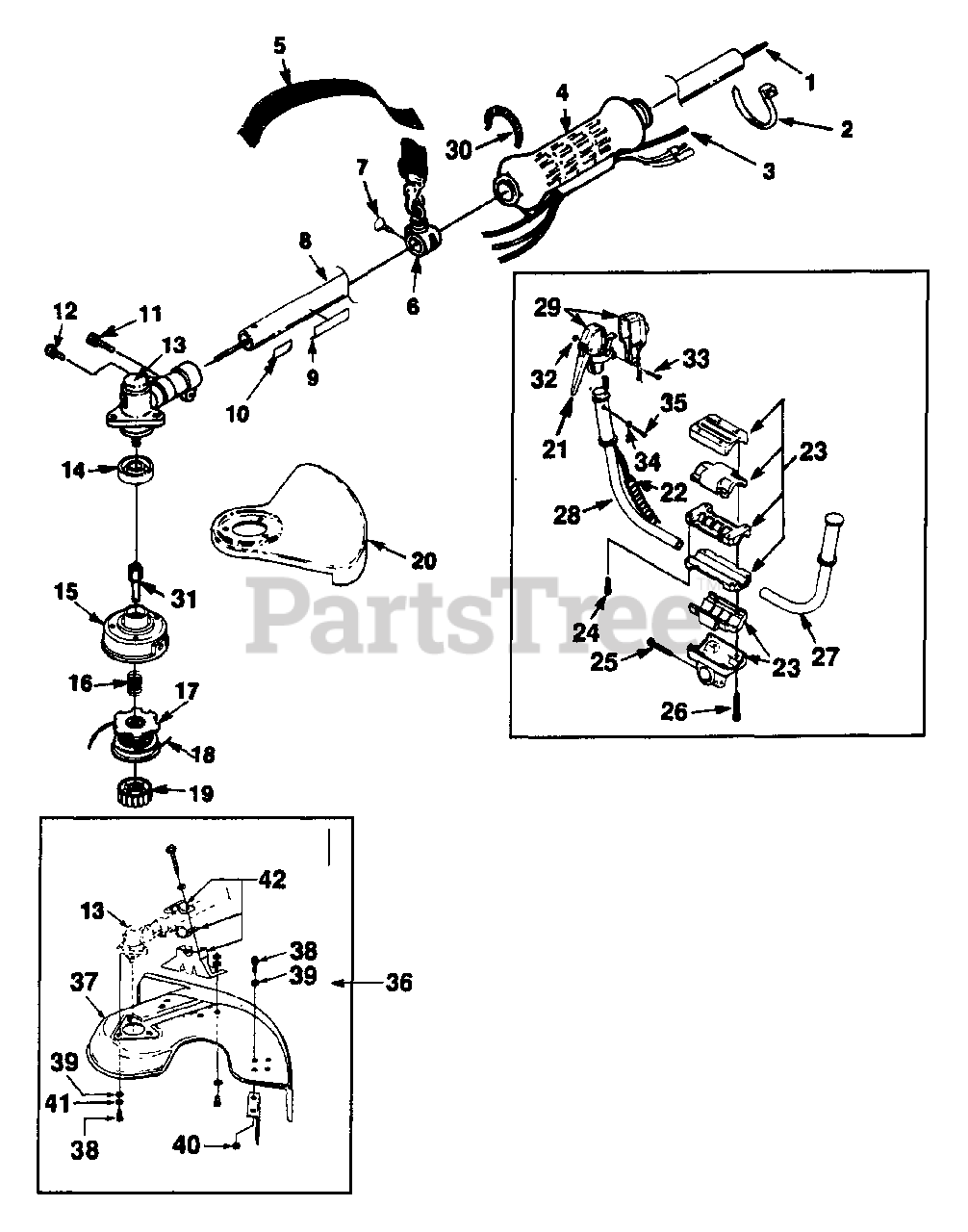

Boom & Head Parts Diagram

  • Title
1

Homelite 98832

DRIVESHAFT

$

$

Not available

2

Homelite 46840

CABLE-Tie

$

$

Not available

3

Homelite A03005

THROTTLE CABLE
(Superseded to 0254203)

$4.49

$

Usually ships in 3-7 days

0

4

Homelite 00597A

GRIP-Handle

$

$

Currently unavailable

5

Homelite DA92703B

HARNESS w/Connector

$

$

Currently unavailable

6

Homelite A-94442

BRACKET-Hanger

$18.99

$

Usually ships in 3-7 days

0

7

Homelite 82260

SCREW-Thumb (10-24 X 1/2")

$

$

Not available

8

Homelite A03800A

HOUSING-Driveshaft
(Superseded to UP04489)

$

$

Currently unavailable

9

Homelite 04458

DECAL-Starting Inst.
(Superseded to UP04130)

$

$

Not available

10

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

11

Homelite 82586

SCREW-Cap Socket Hd. (10-24 X 1")

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 88049

SCREW-Sems Hex Hd. (10-24 X 1/2")

$

$

Not available

13

Homelite A03888

GEAR HEAD
(Superseded to UP04120)

$

$

Not available

14

Homelite 04168

WASHER-Flanged
(Superseded to 04168A)

$10.99

$

Usually ships in 3-7 days

0

15

Homelite A98231A

HOUSING & EYELET
(Superseded to 099068001005)

$

$

Not available

16

Homelite 98848

SPRING-Compression
(Superseded to UP06526)

$1.99

$

In Stock, only 3 left!

0

17

Homelite DA02598A

SPOOL & STRING

$

$

Currently unavailable

18

Homelite 0395903

LINE-Replacement (.095 Dia)
(Superseded to D06514)

$

$

Not available

19

Homelite A97910A

SPOOL RETAINER
(Superseded to 308042003)

$7.49

$

In Stock, Qty 5

0

20

Homelite 988472

GUARD-Blade

$32.99

$

Usually ships in 3-7 days

0

21

Homelite A03276

THROTTLE

$

$

Not available

22

Homelite 00684

SLEEVING-Plastic

$

$

Not available

23

Homelite A005922

BRACKET-Handle Bar

$

$

Currently unavailable

24

Homelite 00605

SCREW-Soc. Hd.

$

$

Not available

25

Homelite 03942

SCREW-Hex Hd.

$

$

Not available

26

Homelite 03944

SCREW-Hex Hd.

$

$

Not available

27

Homelite A03268

HANDLE BAR & GRIP (Left)
(Superseded to UP00392)

$24.99

$

Usually ships in 3-7 days

0

28

Homelite A03277

HANDLE BAR & GRIP (Right)

$

$

Currently unavailable

29

Homelite A03275

SWITCH & LEAD

$

$

Not available

30

Homelite 00737

SPRING-Torsion

$

$

Not available

31

Homelite 9855141

CONNECTOR-Drive

$

$

Not available

32

Homelite 81417

NUT (4M)

$

$

Not available

33

Homelite 88183

SCREW (4M)

$7.49

$

Usually ships in 3-7 days

0

34

Homelite 83086

WASHER-Lock

$

$

Not available

35

Homelite 82528

SCREW-Thread Form. (#6-19 x 3/4")

$2.49

$

Usually ships in 3-7 days

0

36

Homelite A03590A

GRASS DEFLECTOR KIT
(Superseded to A03590B)

$

$

Not available

37

Homelite A0436203

DEFLECTOR & BLADE

$

$

Not available

38

Homelite 82298

SCREW
(Superseded to 82593)

$4.99

$

Usually ships in 3-7 days

0

39

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 81208

NUT (10-24)

$

$

Not available

41

$

$

Not available

42

Homelite A03404

DEFLECTOR BRACKET KIT

$

$

Not available
