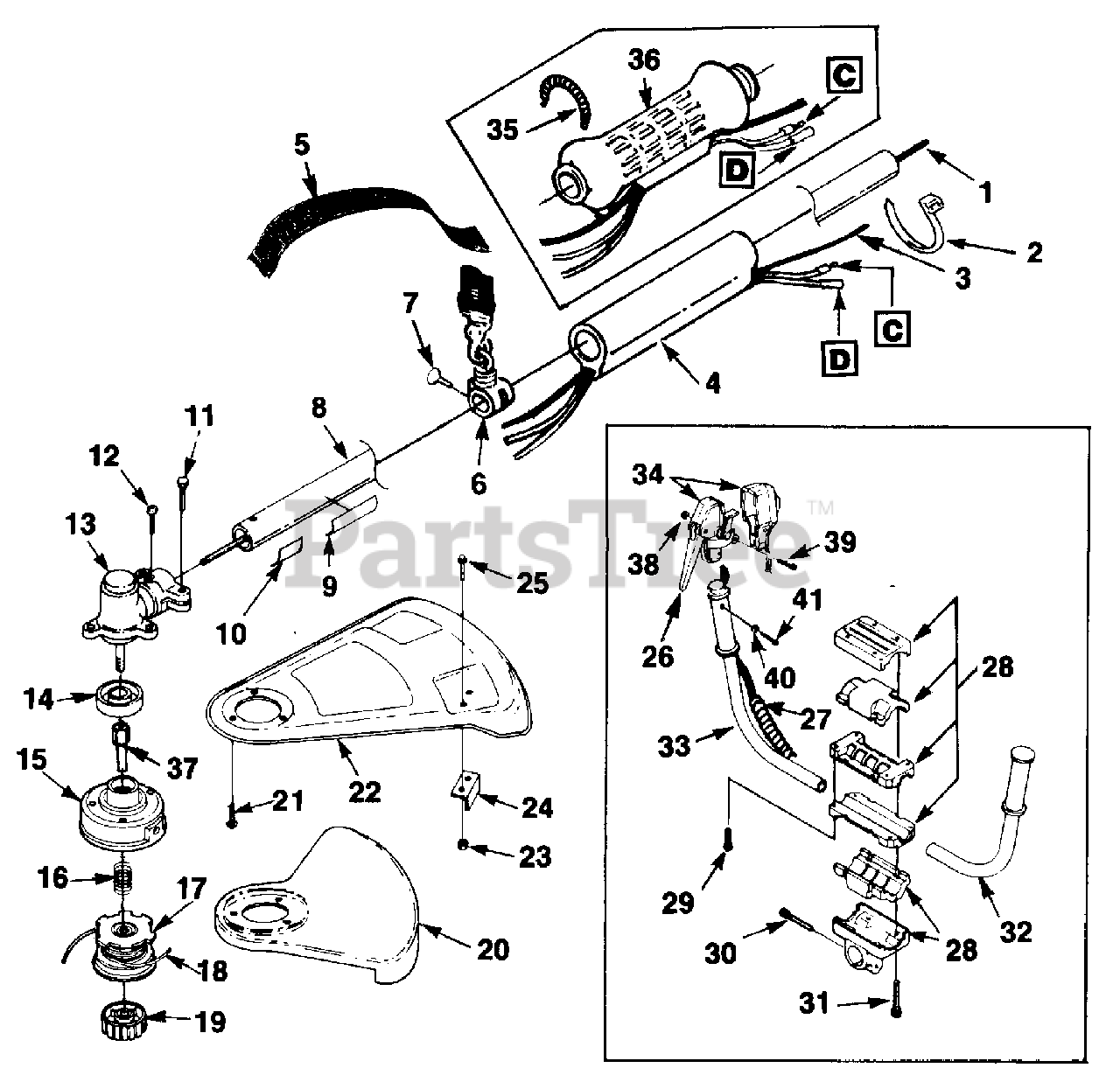

HBC 30 B (UT-15072) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

Boom & Head Parts Diagram

  • Title
1

Homelite 98832

DRIVE SHAFT

$

$

Not available

2

Homelite 46840

CABLE- Tie

$

$

Not available

3

Homelite A03005

THROTTLE CABLE
(Superseded to 0254203)

$4.49

$

Usually ships in 3-7 days

0

4

Homelite 03234

GRIP- Handle

$

$

Currently unavailable

5

Homelite DA92703B

HARNESS (w/Connector)

$

$

Currently unavailable

6

Homelite A94442

BRACKET- Hanger

$18.99

$

Usually ships in 3-7 days

0

7

Homelite 82260

SCREW (10-24 x 1/2")

$

$

Not available

8

Homelite A03800

HOUSING- Drive shaft
(Superseded to UP04489)

$

$

Currently unavailable

9

Homelite 989241

DECAL- Starting instr.

$

$

Currently unavailable

10

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

11

Homelite 88053

SCREW (10-24 x 1")
(Superseded to 96624)

$

$

Not available

12

Homelite 88049

SCREW (10-24 x 1/2")

$

$

Not available

13

Homelite A03887

GEARHEAD ASSY.

$

$

Currently unavailable

14

Homelite 04168

WASHER- Flange
(Superseded to 04168A)

$10.99

$

Usually ships in 3-7 days

0

15

Homelite A98231A

HOUSING & EYELET
(Superseded to 099068001005)

$

$

Not available

16

Homelite 98848

SPRING- Compression
(Superseded to UP06526)

$1.99

$

In Stock, only 3 left!

0

17

Homelite DA02598A

SPOOL & STRING (Dual Line)

$

$

Currently unavailable

18

Homelite 0259905

LINE- Replacement (.095 Dia.)
(Superseded to D06514)

$

$

Not available

19

Homelite A97910A

RETAINER
(Superseded to 308042003)

$7.49

$

In Stock, Qty 5

0

20

Homelite 988472

GUARD- Blade

$32.99

$

Usually ships in 3-7 days

0

21

Homelite 88049

SCREW (10-24 x 1/2")

$

$

Not available

22

Homelite 988461

GRASS DEFLECTOR

$

$

Currently unavailable

23

Homelite 81208

NUT (10-24)

$

$

Not available

24

Homelite 02949

BLADE- Cut off
(Superseded to 07128)

$

$

Not available

25

Homelite 80869

SCREW (10-24 x 3/8")

$

$

Not available

26

Homelite A03276

THROTTLE

$

$

Not available

27

Homelite 00684

SLEEVE- Plastic

$

$

Not available

28

Homelite A005921

BRACKET- Handle bar
(Superseded to UP04691)

$

$

Not available

29

Homelite 00605

SCREW- Soc. hd.

$

$

Not available

30

Homelite 00606

SCREW- Hex hd.
(Superseded to 03942)

$

$

Not available

31

Homelite 00607

SCREW- Hex hd.
(Superseded to 03944)

$

$

Not available

32

Homelite A03268

HANDLE BAR
(Superseded to UP00392)

$24.99

$

Usually ships in 3-7 days

0

33

Homelite A03277

HANDLE BAR & GRIP

$

$

Currently unavailable

34

Homelite A03275

SWITCH & LEAD

$

$

Not available

35

Homelite 00737

SPRING- Torsion

$

$

Not available

36

Homelite 00597A

GRIP- Handle

$

$

Currently unavailable

37

Homelite 9855141

CONNECTOR- Drive

$

$

Not available

38

Homelite 81417

NUT (4 M)

$

$

Not available

39

Homelite 88183

SCREW (4 M)

$7.49

$

Usually ships in 3-7 days

0

40

Homelite 83086

WASHER- Lock

$

$

Not available

41

Homelite 82528

SCREW- Thd. Forming

$2.49

$

Usually ships in 3-7 days

0
