HBC 28 (UT-15097) - Homelite String Trimmer Carburetor - Fuel Tank Parts Diagram

String Trimmer

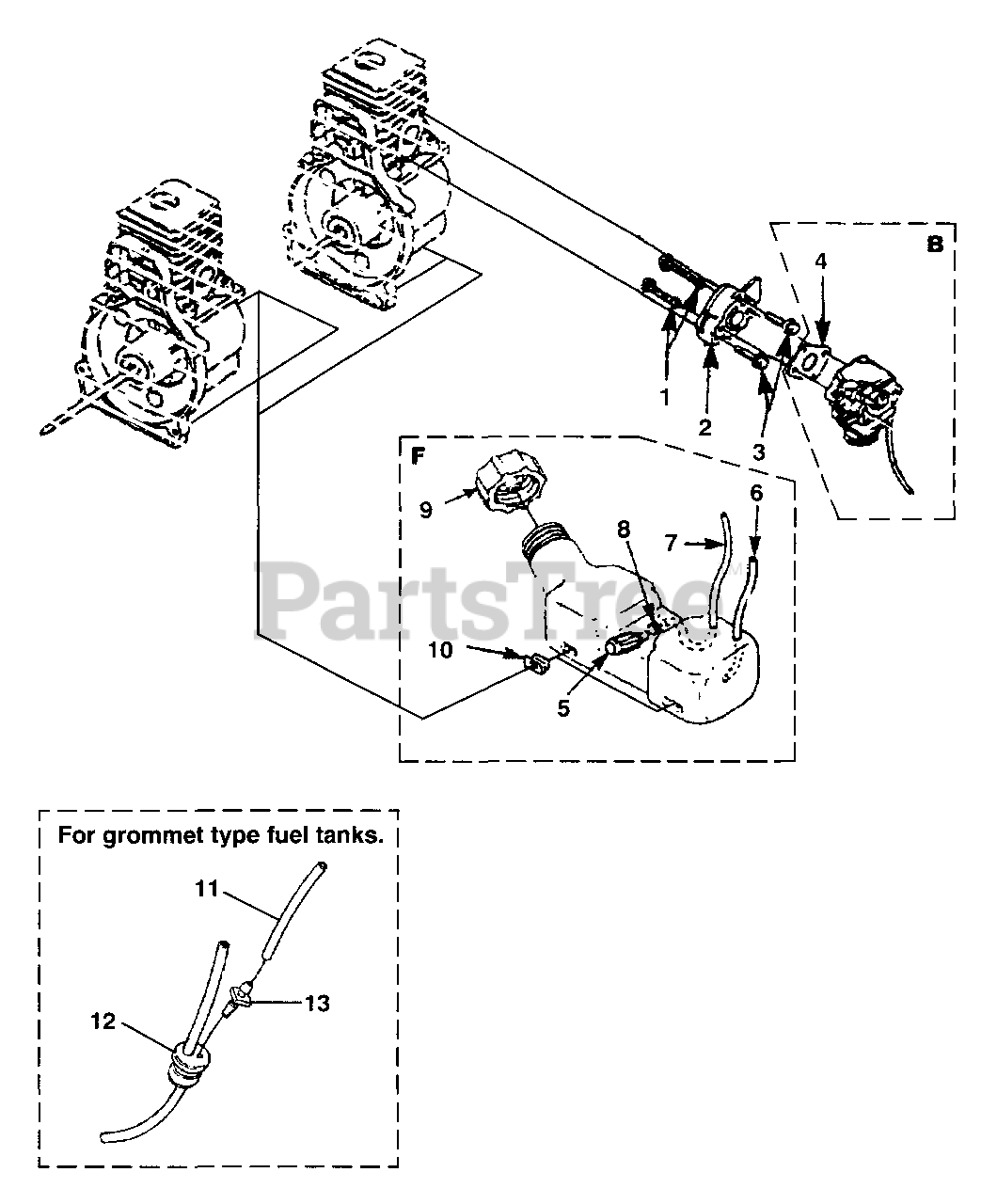

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite 04474

SCREW - Machine (10-24 X 2-1/4")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$

$

Not available

2

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

3

Homelite 825491

SCREW - Taptite (10-24 X 1")
(Superseded to UP05542)

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm, Red 262 Required Loctite

$

$

Not available

B

Homelite A04445A

CARBURETOR KIT

$

$

Not available

4

Homelite 98766A

GASKET - Carburetor
(Superseded to 900994004)

$

$

Not available

F

Homelite A04447C

FUEL TANK
(Superseded to UP00136)

$

$

Not available

5

Homelite 49422

FILTER Fuel
(Superseded to PS03380)

$

$

Not available

6

Homelite 0143932

TUBING - Rubber (8")
(Superseded to UP03825)

$

$

Not available

7

Homelite 9477232

TUBING - Rubber (8")
(Superseded to UP03905)

$

$

Not available

8

Homelite 98268

CLAMP - Wire
(Superseded to 690765001)

$1.99

$

In Stock, only 4 left!

0

9

Homelite A00982B

FUEL CAP
(Superseded to UP04111)

$

$

Not available

10

Homelite 98792

BUMPER - Rubber

$

$

Not available

11

Homelite 0143916

TUBING - Rubber (3 X 3/4")

$4.99

$

In Stock, Qty 6

0

12

Homelite 07469

GROMMET w/Tubing

$

$

Not available

13

Homelite 02067

FITTING - Fuel

$

$

Not available
