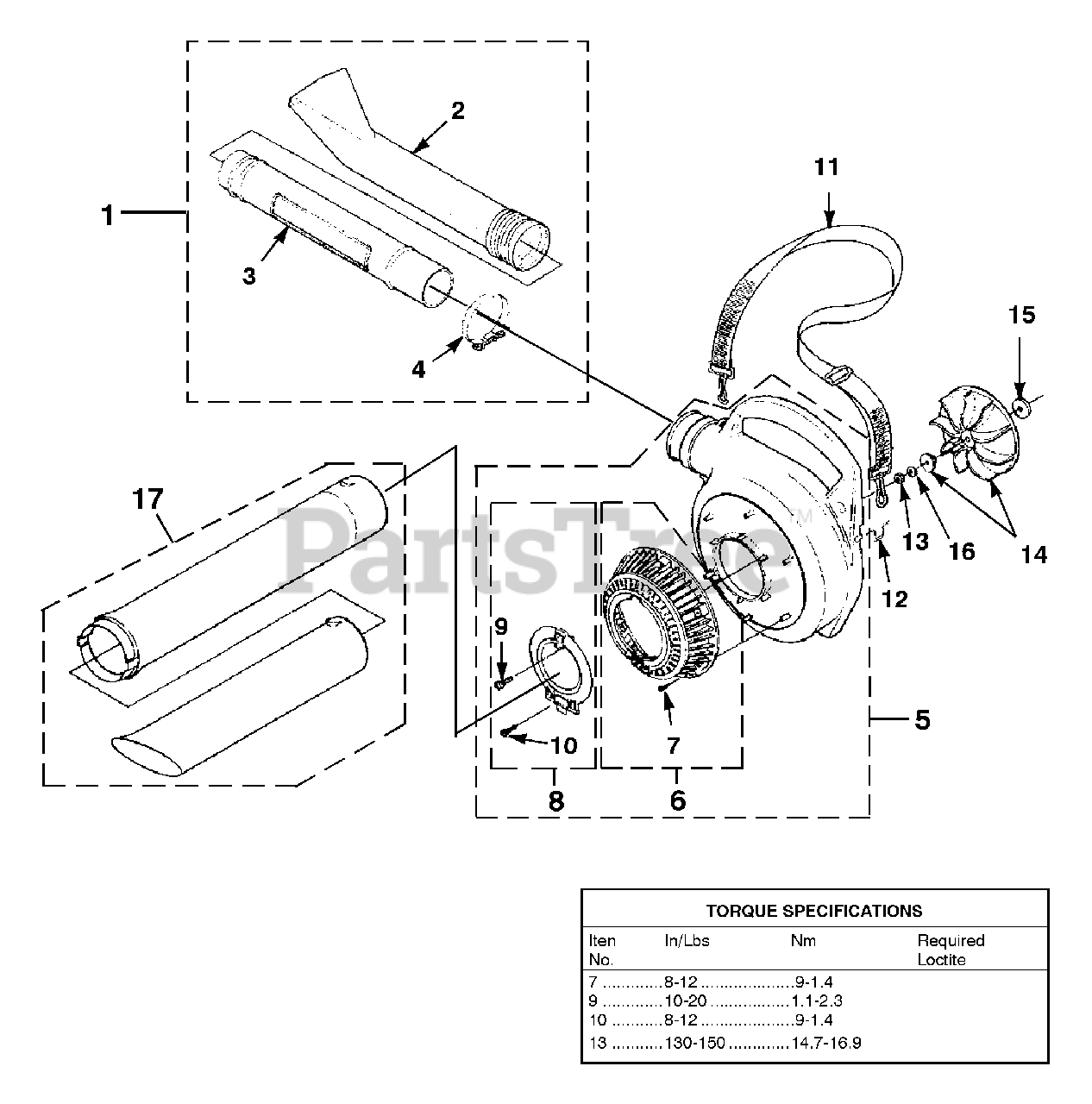

HB 390 VI (UT-08096) - Homelite Blower Volute, Fan & Tubes Parts Diagram

Blower

Volute, Fan & Tubes Parts Diagram

  • Title

1

Homelite UP06741A

BLOWER TUBE KIT

Note: Includes items 2-4

$

$

Not available

2

Homelite 00373A

NOZZLE-Sweeper
(Superseded to 580556001)

$

$

Not available

3

Homelite 00372B

TUBE

$

$

Not available

4

Homelite 00433B

CLAMP w/Fasteners
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 984918001

VOLUTE HOUSING KIT

Note: Includes items 6-10

$

$

Not available

6

Homelite UP06720A

BLOWER VAC GRILLE KIT

Note: Includes item 7

$

$

Not available

7

Homelite 82528

SCREW-Thread Form. (#6 X 3/8")

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 984910001

ACCESS DOOR KIT

Note: Includes Items 9-10

$

$

Not available

9

Homelite 82312

SCREW-Thread Rolling (#10 X 5/8")

$

$

Not available

10

Homelite 82376

SCREW-Thread Form. (#8 X 1/2")
(Superseded to 660669001)

$1.49

$

In Stock, only 3 left!

0

11

Homelite 96337C

SHOULDER STRAP

$

$

Not available

12

Homelite 00398

WIRE LOOP

$

$

Not available

13

Homelite 81124A

NUT-Hex (3/8-24)

$

$

Not available

14

Homelite UP06826A

BLOWER FAN KIT
(Superseded to 000998274)

$

$

Not available

15

Homelite 03165

WASHER-Flat
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 03163

WASHER-Bellville (3/8")

$

$

Not available

17

Homelite UP06705A

VACUUM TUBE KIT

Note: (Vacuum units only)

$

$

Not available
