HB 281 (967008301) - RedMax Handheld Blower (2011-09) HOUSING Parts Diagram

Handheld Blower

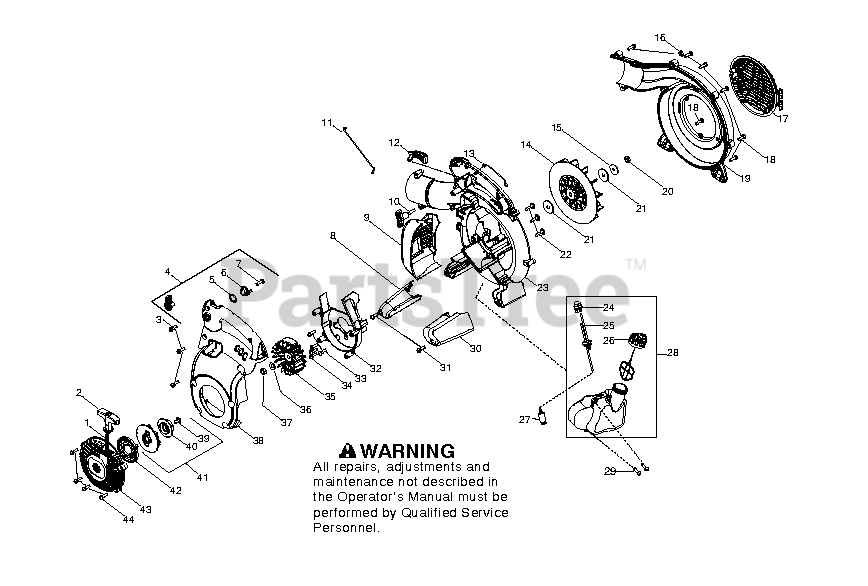

HOUSING Parts Diagram

  • Title

1

RedMax 545081817

KIT ROPE

$9.49

$

In Stock, only 1 left!

0

2

RedMax 545043205

HANDLE - STARTER

$10.99

$

Usually ships in 3-10 days

0

3

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

4

RedMax 545008020

KIT - CRUIS CONTROL (5,6,7)

Note: 5 6 7

$10.99

$

Usually ships in 3-10 days

0

5

RedMax 530015147

WAVE WASHER

$4.99

$

Usually ships in 3-10 days

0

6

RedMax 545111501

RATCHET CRUISE CONTROL

$7.49

$

Usually ships in 3-10 days

0

7

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

8

RedMax 545140302

FOOT - FRONT IMPACT

$8.49

$

Usually ships in 3-10 days

0

9

RedMax 545157902

ASSY - MUFFLER GUARD

$12.99

$

Usually ships in 3-10 days

0

10

RedMax 545108702

ASSY - TUBE CLAMP

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 545111301

WIRE LINKAGE

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 545111602

TRIGGER - THROTTLE

$8.99

$

In Stock, only 1 left!

0

13

RedMax 545131701

WIRE, HANDLE GROUND

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 545173201

IMPELLER

$

$

Not available

15

RedMax 530015127

WASHER-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

16

RedMax 530015197

NUT

$6.49

$

In Stock, Qty 5

0

17

RedMax 545111204

COVER VAC DOOR BLACK

$13.99

$

In Stock, only 4 left!

0

18

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

19

RedMax 575533203

ASSY OUTER SCROLL NON VAC

Note: 17

$34.99

$

Usually ships in 3-10 days

0

20

RedMax 545147101

NUT, IMPELLER

$6.49

$

Usually ships in 3-10 days

0

21

RedMax 545164501

WASHER IMPELLER

$4.99

$

In Stock, only 3 left!

0

22

RedMax 530016445

SCREW FUEL TANK RETAINER

$6.49

$

Usually ships in 3-10 days

0

23

RedMax 545110003

SCROLL - INNER

$85.99

$

Usually ships in 3-10 days

0

24

RedMax 530047721

AIR PURGE

$9.49

$

In Stock, only 3 left!

0

25

RedMax 545081841

KIT FUEL LINE GROMMET
(Superseded to 581798001)

Note: 24 27

$11.99

$

In Stock, Qty 17

0

26

RedMax 545073101

ASSY - FUEL CAP W/RETAINER

$18.99

$

Usually ships in 3-10 days

0

27

RedMax 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

28

RedMax 576740902

FUEL TANK ASSY
(Superseded to 581337206)

$34.99

$

Usually ships in 3-10 days

0

29

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

30

RedMax 545140402

FOOT - REAR IMPACT

$7.99

$

Usually ships in 3-10 days

0

31

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

32

RedMax 545132801

SCROLL, FLYWHEEL

$17.99

$

In Stock, only 1 left!

0

33

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

34

RedMax 530015810

SCREW - SHROUD
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

35

RedMax 545088801

ASSY, FLYWHEEL
(Superseded to 576423301)

$26.99

$

Usually ships in 3-10 days

0

36

RedMax 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 530016134

NUT-FLYWHEEL

$6.49

$

In Stock, only 1 left!

0

38

RedMax 573956401

COVER RED
(Superseded to 545111003)

$27.99

$

Usually ships in 3-10 days

0

39

RedMax 545112801

SCREW

$4.99

$

In Stock, only 3 left!

0

40

RedMax 545140801

HUB

$9.99

$

In Stock, only 2 left!

0

41

RedMax 545081818

KIT - STARTER

Note: 39 40

$15.99

$

Usually ships in 3-10 days

0

42

RedMax 530042095

SPRING STARTER
(Superseded to 545008013)

$6.99

$

In Stock, only 3 left!

0

43

RedMax 545111802

HOUSING - STARTER COVER

$17.99

$

In Stock, only 2 left!

0

44

RedMax 530015810

SCREW - SHROUD
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0
