HB 280 - RedMax Handheld Blower (SN: 20085100001 & Above) (2008-12) 002 - BLOWER UNIT Parts Diagram

Handheld Blower

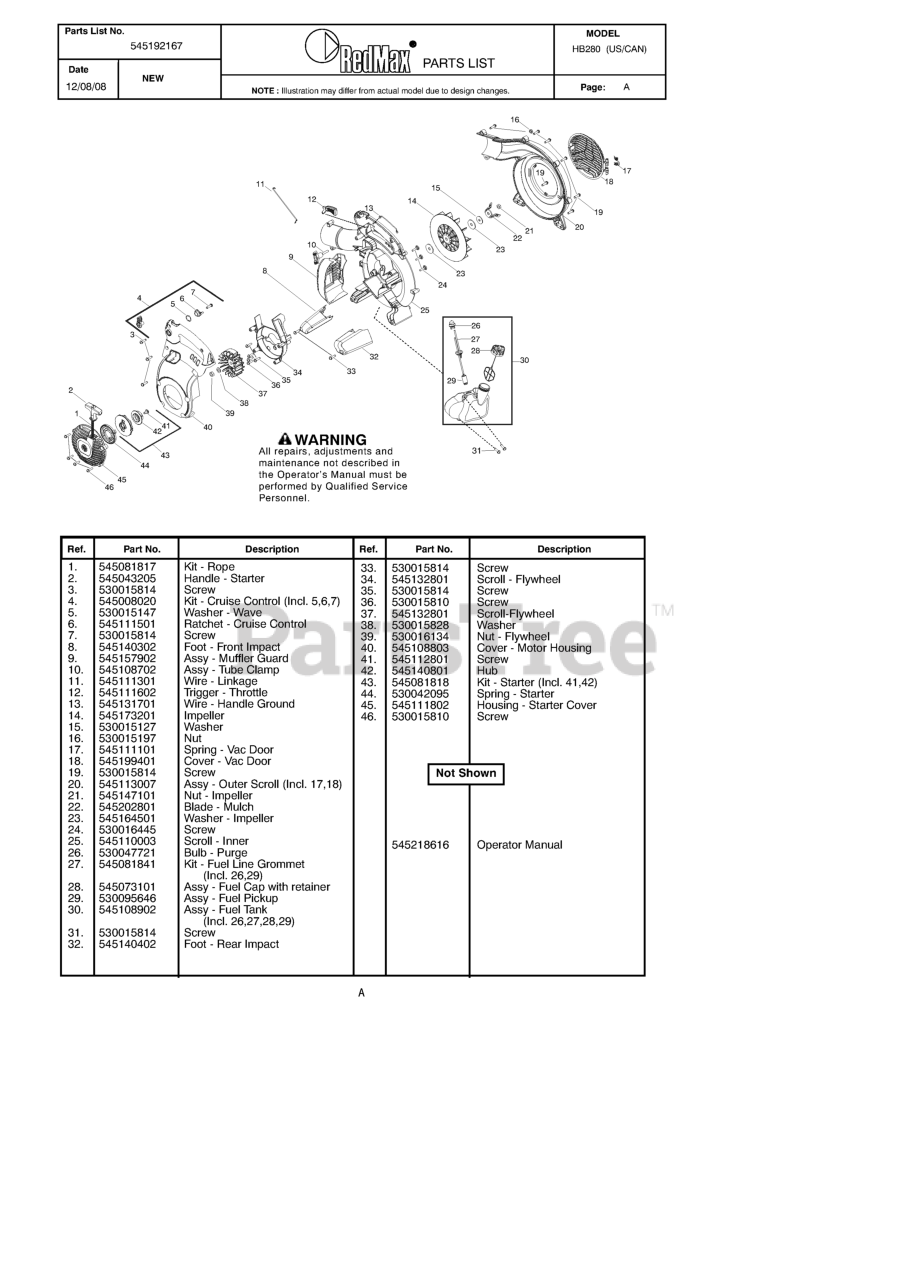

002 - BLOWER UNIT Parts Diagram

  • Title

1

RedMax 545081817

KIT - ROPE

$9.49

$

In Stock, only 1 left!

0

2

RedMax 545043205

HANDLE - STARTER

$10.99

$

Usually ships in 3-10 days

0

3

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

4

RedMax 545008020

KIT - CRUIS CONTROL (5,6,7)

$10.99

$

Usually ships in 3-10 days

0

5

RedMax 530015147

WASHER - WAVE

$4.99

$

Usually ships in 3-10 days

0

6

RedMax 545111501

RATCHET - CRUISE CONTROL

$7.49

$

Usually ships in 3-10 days

0

7

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

8

RedMax 545140302

FOOT - FRONT IMPACT

$8.49

$

Usually ships in 3-10 days

0

9

RedMax 545157902

ASSY - MUFFLER GUARD

$12.99

$

Usually ships in 3-10 days

0

10

RedMax 545108702

ASSY - TUBE CLAMP

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 545111301

WIRE - LINKAGE

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 545111602

TRIGGER - THROTTLE

$8.99

$

In Stock, only 1 left!

0

13

RedMax 545131701

WIRE - HANDLE GROUND

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 545173201

IMPELLER

$

$

Not available

15

RedMax 530015127

WASHER

$6.49

$

In Stock, only 1 left!

0

16

RedMax 530015197

NUT

$6.49

$

In Stock, only 4 left!

0

17

RedMax 545111101

SPRING - VAC DOOR

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 545199401

COVER - VAC DOOR

$12.99

$

Usually ships in 3-10 days

0

19

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

20

RedMax 545113007

ASSY - OUTER SCROLL (17,18)
(Superseded to 574083801)

$

$

Not available

21

RedMax 545147101

NUT - IMPELLER

$6.49

$

In Stock, only 1 left!

0

22

RedMax 545202801

BLADE - MULCH

$4.99

$

In Stock, only 4 left!

0

23

RedMax 545164501

WASHER - IMPELLER

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 530016445

SCREW

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 545110003

SCROLL - INNER

$85.99

$

Usually ships in 3-10 days

0

26

RedMax 530047721

BULB - PRIMER

$9.49

$

Usually ships in 3-10 days

0

27

RedMax 545081841

KIT - FUEL LINE GROMMET;26,29
(Superseded to 581798001)

$11.99

$

In Stock, Qty 7

0

28

RedMax 545073101

ASSY - FUEL CAP W/RETAINER

$18.99

$

Usually ships in 3-10 days

0

29

RedMax 530095646

ASSY - FUEL PICKUP

$6.99

$

In Stock, Qty 18

0

30

RedMax 545108902

ASSY - FUEL TANK; 26,27,28,29
(Superseded to 581337206)

$34.99

$

Usually ships in 3-10 days

0

31

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

32

RedMax 545140402

FOOT - REAR IMPACT

$7.99

$

Usually ships in 3-10 days

0

33

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

34

RedMax 545132801

SCROLL - FLYWHEEL

$17.99

$

In Stock, only 1 left!

0

35

RedMax 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

36

RedMax 530015810

SCREW
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

37

RedMax 545132801

SCROLL - FLYWHEEL

$17.99

$

In Stock, only 1 left!

0

38

RedMax 530015828

WASHER

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 530016134

NUT - FLYWHEEL

$6.49

$

In Stock, only 1 left!

0

40

RedMax 545108803

COVER - MOTOR HOUSING
(Superseded to 545111003)

$27.99

$

Usually ships in 3-10 days

0

41

RedMax 545112801

SCREW

$4.99

$

In Stock, only 3 left!

0

42

RedMax 545140801

HUB

$9.99

$

In Stock, only 2 left!

0

43

RedMax 545081818

KIT - STARTER (41,42)

$15.99

$

Usually ships in 3-10 days

0

44

RedMax 530042095

SPRING - STARTER
(Superseded to 545008013)

$6.99

$

In Stock, Qty 8

0

45

RedMax 545111802

HOUSING - STARTER COVER

$17.99

$

In Stock, only 2 left!

0

46

RedMax 530015810

SCREW
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

NI

RedMax 545218616

OPERATOR

$

$

Not available
