HB 280 - RedMax Handheld Blower (2010-04) 002 - CYLINDER/IGNITION/CRANKSHAFT Parts Diagram

Handheld Blower

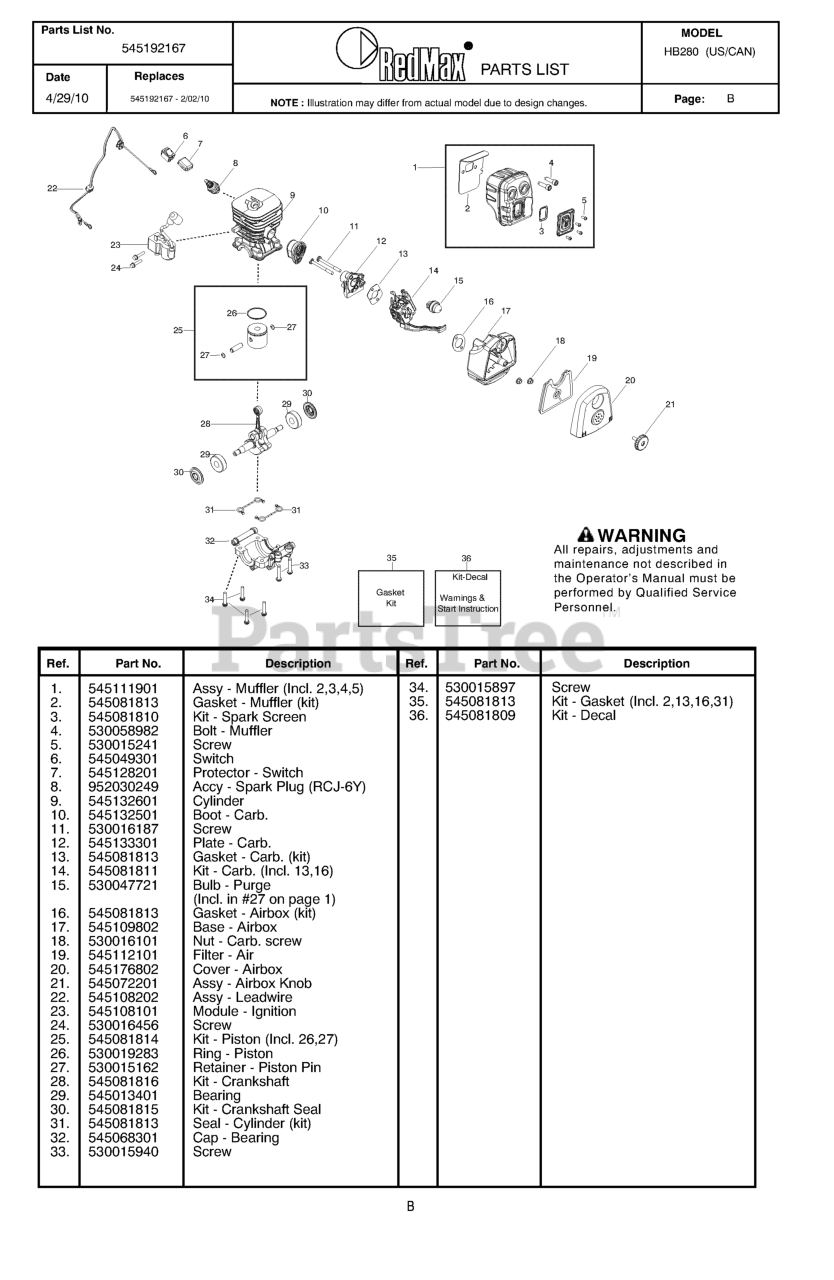

002 - CYLINDER/IGNITION/CRANKSHAFT Parts Diagram

  • Title
1

RedMax 545111901

ASS - MUFFLER (2,3,4,5)
(Superseded to 580502701)

$34.99

$

In Stock, only 1 left!

0

2

RedMax 545081813

GASKET - MUFFLER (kit)

$24.99

$

Usually ships in 3-10 days

0

3

RedMax 545081810

KIT - SPARK SCREEN

$10.99

$

In Stock, only 1 left!

0

4

RedMax 530058982

BOLT - MUFFLER

$4.99

$

In Stock, Qty 7

0

$3.99

$

Usually ships in 3-10 days

0

6

$10.99

$

In Stock, Qty 10

0

7

RedMax 545128201

PROTECTOR - SWITCH

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 952030249

ACCY - SPARK PLUG (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

9

RedMax 545132601

CYLINDER
(Superseded to 587597301)

$48.99

$

Usually ships in 3-10 days

0

10

RedMax 545132501

BOOT - CARB

$17.99

$

In Stock, only 3 left!

0

11

$6.49

$

In Stock, only 2 left!

0

12

RedMax 545133301

PLATE - CARB

$8.99

$

In Stock, Qty 7

0

13

RedMax 545081813

GASKET - MUFFLER (kit)

$24.99

$

Usually ships in 3-10 days

0

14

RedMax 545081811

KIT - CARB (13,16)

$40.99

$

Usually ships in 3-10 days

0

15

RedMax 530047721

BULB - PRIMER

$9.49

$

Usually ships in 3-10 days

0

16

RedMax 545081813

GASKET - MUFFLER (kit)

$24.99

$

Usually ships in 3-10 days

0

17

RedMax 545109802

BASE - AIR BOX

$17.99

$

In Stock, only 1 left!

0

18

RedMax 530016101

NUT - CARB SCREW

$6.49

$

In Stock, only 2 left!

0

19

RedMax 545112101

FILTER - AIR

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 545176802

COVER - AIR BOX

$17.99

$

In Stock, Qty 6

0

21

RedMax 545072201

ASSY - AIR BOX KNOB

$6.49

$

In Stock, only 3 left!

0

22

RedMax 545108202

ASSY - LEAD WIRE
(Superseded to 545108201)

$10.99

$

In Stock, only 1 left!

0

23

RedMax 545108101

MODULE - IGNITION

$42.99

$

Usually ships in 3-10 days

0

24

$6.49

$

In Stock, only 2 left!

0

25

RedMax 545081814

KIT - PISTON (26,27)

$44.99

$

Usually ships in 3-10 days

0

26

RedMax 530019283

RING - PISTON
(Superseded to 575227901)

$7.49

$

In Stock, only 4 left!

0

27

RedMax 530015162

RETAINER - PISTON PIN

$6.49

$

In Stock, only 1 left!

0

28

RedMax 545081816

KIT - CRANKSHAFT

$

$

Not available

29

$10.99

$

Usually ships in 3-10 days

0

30

RedMax 545081815

KIT - CRANKSHAFT SEAL

$10.99

$

In Stock, only 4 left!

0

31

RedMax 545081813

GASKET - MUFFLER (kit)

$24.99

$

Usually ships in 3-10 days

0

32

RedMax 545068301

CAP - BEARING
(Superseded to 577929601)

$17.99

$

Usually ships in 3-10 days

0

33

$6.49

$

In Stock, Qty 8

0

34

$6.49

$

In Stock, Qty 19

0

35

RedMax 545081813

GASKET - MUFFLER (kit)

$24.99

$

Usually ships in 3-10 days

0

36

RedMax 545081809

KIT - DECAL

$4.99

$

Usually ships in 3-10 days

0
