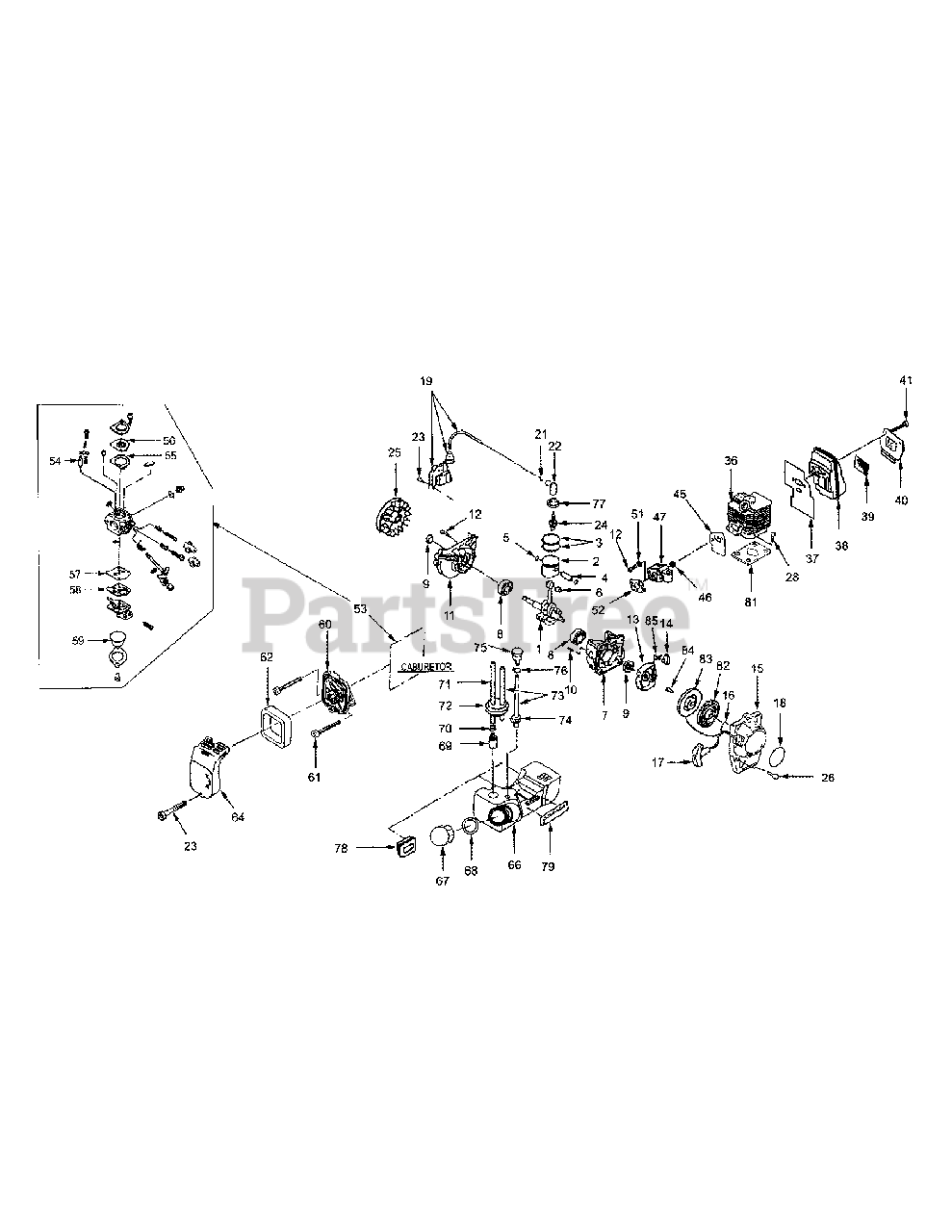

HB 26-C (59AF302-050) - Cub Cadet Handheld Blower Engine Parts Diagram

Handheld Blower

Engine Parts Diagram

  • Title
1

$

$

Not available

2

Cub Cadet IM-115013311

Piston Assembly

$

$

Not available

3

Cub Cadet IM-115113650

Ring, Piston

$

$

Not available

4

$

$

Not available

5

Cub Cadet IM-198343210

Clip, Piston Pin

$

$

Not available

6

Cub Cadet IM-042709008

Bearing, Needle

$

$

Not available

7

Cub Cadet IM-110035190

Crankcase Assembly

$

$

Not available

8

Cub Cadet IM-040106201

Bearing, Ball, 6201

$

$

Not available

$7.99

$

Usually ships in 3-6 days

0

10

$

$

Not available

11

Cub Cadet IM-110035200

Crankcase Assembly

$

$

Not available

12

$

$

Not available

13

Cub Cadet IM-155353090

Pulley Assembly, Starter

$

$

Not available

$

$

Not available

15

Cub Cadet IM-155103461

Recoil Assembly

$126.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IM-155213050

Rope, Starter

$

$

Not available

17

Cub Cadet IM-155223061

Knob, Starter

Note: NLA

$

$

Not available

18

$

$

Not available

19

Cub Cadet IM-150053370

Coil Assembly, Ignition

$

$

Not available

$2.99

$

In Stock, only 1 left!

0

22

$

$

Not available

23

$3.49

$

In Stock, Qty 5

0

24

Cub Cadet IM-150265091

Spark Plug
(Superseded to BPMR7A)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet IM-150103500

Flywheel, Magneto

$47.99

$

Usually ships in 3-6 days

0

26

$

$

Not available

28

$

$

Not available

$

$

Not available

37

Cub Cadet n/a

Gasket, Muffler

$

$

Currently unavailable

$53.99

$

Usually ships in 3-6 days

0

$4.49

$

In Stock, only 1 left!

0

40

Cub Cadet IM-135433670

Baffle Plate, Outer

$

$

Not available

41

$3.49

$

Usually ships in 3-6 days

0

45

Cub Cadet n/a

Gasket, Insulator

$

$

Currently unavailable

$

$

Not available

47

Cub Cadet IM-199513590

Insulator
(Superseded to IM-199513590P)

$

$

Not available

51

Cub Cadet IM-026100005

Washer

Note: NLA

$

$

Not available

52

Cub Cadet n/a

Gasket

$

$

Currently unavailable

53

Cub Cadet IM-130104400

Carburetor Assembly

$

$

Not available

54

Cub Cadet IM-130153240

Valve, Float

$

$

Not available

$

$

Not available

56

Cub Cadet IM-130283357

Diaphragm, Metering

$

$

Not available

57

Cub Cadet IM-130513409

Diaphragm, Pump

$

$

Not available

$

$

Not available

$16.99

$

Usually ships in 3-6 days

0

60

Cub Cadet IM-135713500

Case, Air Silencer

$19.99

$

Usually ships in 3-6 days

0

61

$

$

Not available

62

Cub Cadet IM-135263360

Element, Air Filter

$9.49

$

In Stock, only 1 left!

0

64

$

$

Not available

66

$26.99

$

Usually ships in 3-6 days

0

67

Cub Cadet IM-160033201

Cap Assembly, Fuel Tank

$10.99

$

In Stock, Qty 5

0

$3.99

$

In Stock, Qty 6

0

69

Cub Cadet IM-130303290

Filter, Fuel

$15.99

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

71

Cub Cadet IM-198163080

Hose

Note: NLA

$

$

Not available

$11.99

$

In Stock, only 1 left!

0

$

$

Not available

$

$

Not available

75

Cub Cadet IM-160043121

Valve, Reversing

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

79

Cub Cadet IM-198113740

Rubber

Note: NLA

$

$

Not available

80

$

$

Not available

81

Cub Cadet IM-110993420

Gasket, Cylinder

$

$

Not available

82

Cub Cadet IM-155263270

Spring, Spiral

$38.99

$

Usually ships in 3-6 days

0

$

$

Not available

$

$

Not available

85

Cub Cadet IM-155263261

Spring, Return

$

$

Not available
