HB 26-C (59AF302-050) - Cub Cadet Handheld Blower Blower Parts Diagram

Handheld Blower

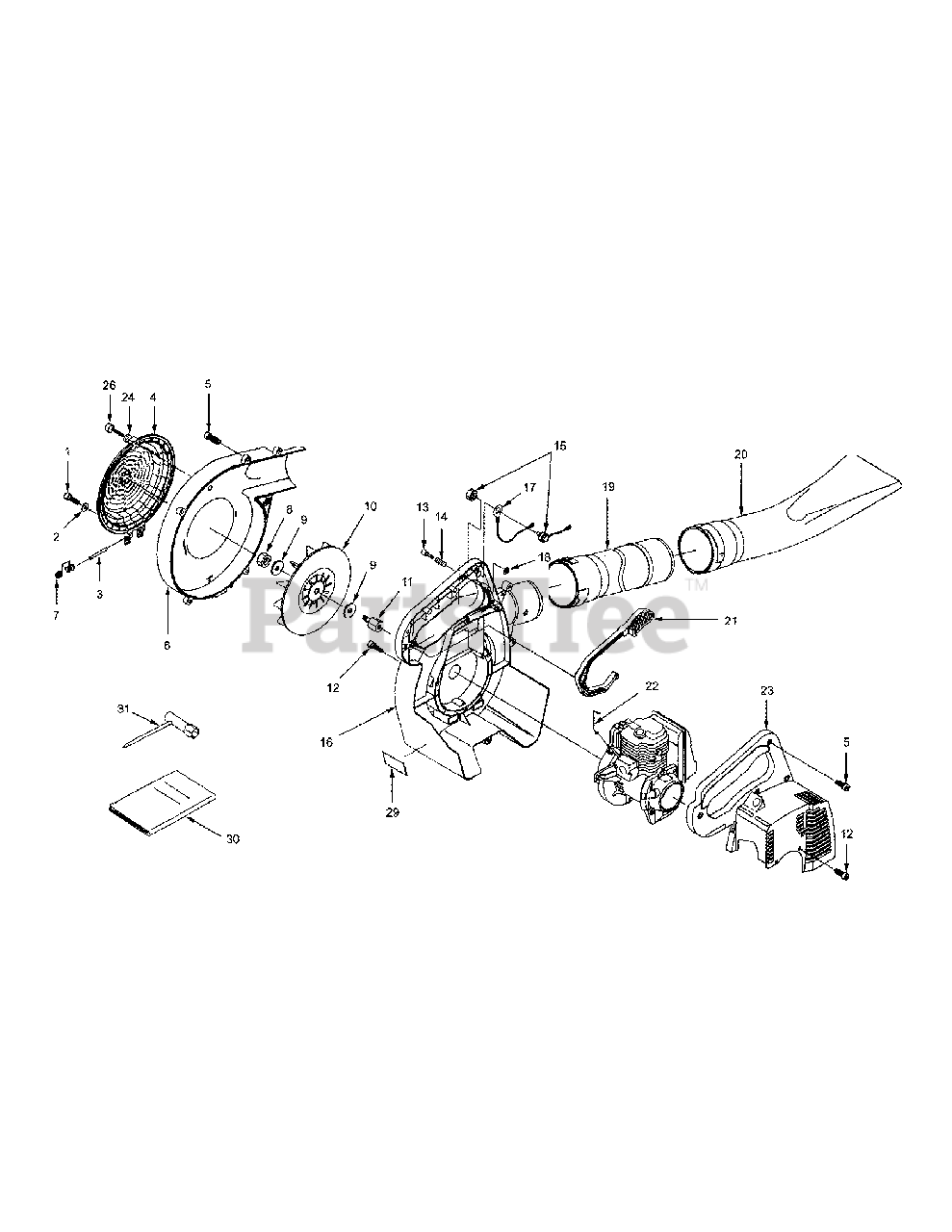

Blower Parts Diagram

  • Title

1

Cub Cadet IM-010709025

Bolt, PC5x14

$

$

Not available

2

Cub Cadet IM-199343091

Washer

$

$

Not available

3

Cub Cadet IM-725180020

Shaft

$

$

Not available

4

Cub Cadet IM-725170010

Guard, Fan

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet IM-010709047

Bolt, PC5x18

$

$

Not available

6

Cub Cadet IM-725100190

Casing

$

$

Not available

7

Cub Cadet IM-198213400

Spring

$

$

Not available

8

Cub Cadet IM-020109107

Nut

$

$

Not available

9

Cub Cadet IM-026109129

Washer

$

$

Not available

10

Cub Cadet IM-725120030

Fan

$49.99

$

Usually ships in 3-6 days

0

11

Cub Cadet IM-725180010

Shaft

$

$

Not available

12

Cub Cadet IM-010709009

Bolt, M5x20

$

$

Not available

13

Cub Cadet IM-725420060

Lever, Throttle
(Superseded to IM-725420061)

$9.99

$

In Stock, only 1 left!

0

14

Cub Cadet IM-198213390

Spring, Throttle

$

$

Not available

15

Cub Cadet IM-185203290

Switch, Stop

$43.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IM-725100180

Casing

$

$

Not available

17

Cub Cadet IM-185603360

Harness, Wire

$

$

Not available

18

Cub Cadet IM-036800003

Snap Ring, E-3

$

$

Not available

19

Cub Cadet IM-725260060

Pipe, Straight

$

$

Not available

20

Cub Cadet IM-725280011

Pipe, Tail

$

$

Not available

21

Cub Cadet IM-725420070

Lever, Throttle

$

$

Not available

22

Cub Cadet IM-725420040

Lever, Throttle

$3.49

$

In Stock, only 1 left!

0

23

Cub Cadet IM-175154100

Cowling, Cylinder

$

$

Not available

24

Cub Cadet IM-026100004

Washer

$

$

Not available

26

Cub Cadet IM-010709051

Bolt, M4x30

$

$

Not available

29

Cub Cadet IM-725960041

Caution Plate

$

$

Not available

30

Cub Cadet n/a

Manual, Operator's

$

$

Currently unavailable

31

Cub Cadet IM-720983371

Wrench; 19

$

$

Not available
