HB 25255 V (UT-08100) - Homelite Blower Muffler - Air Cleaner Parts Diagram

Blower

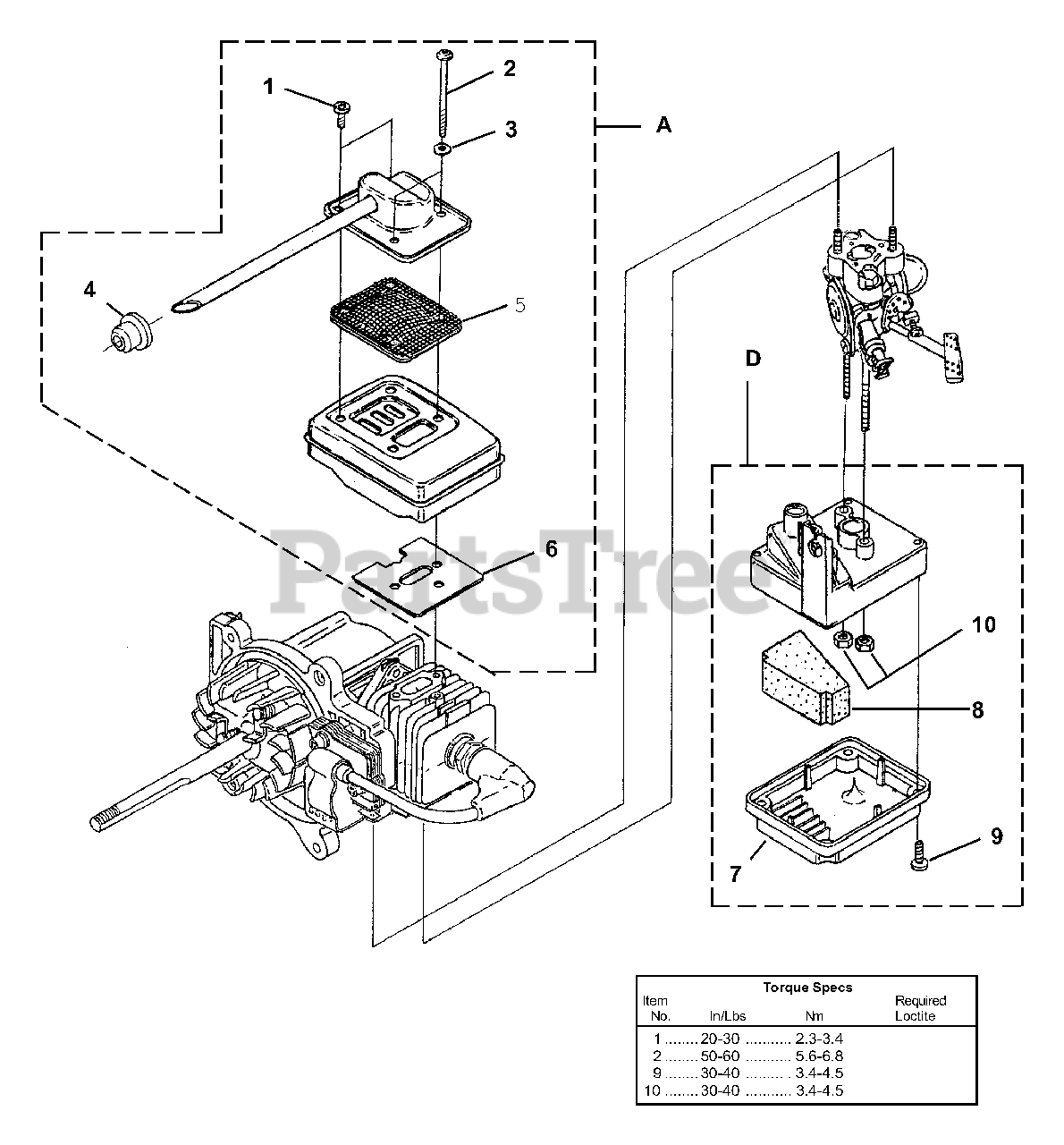

Muffler - Air Cleaner Parts Diagram

  • Title

A

Homelite UP06823A

Muffler Assembly, Crimped

Note: Includes items 1-6

$

$

Not available

1

Homelite 82600

Screw, Taptite (8-32 x 3/8)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 82613

Screw, Torx Truss Hd. (10-24 X 2.188")

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 12021

Washer, Conical #10

$

$

Not available

4

Homelite 08104

Muffler Grommet

$

$

Not available

5

Homelite PS00429

Screen Assy., Spark

$

$

Not available

6

Homelite 00394B

Gasket, Muffler

Note: Also included with Short Block and Cylinder Kits.

$

$

Not available

D

Homelite UP06824A

Air Filter Assembly
(Superseded to UP06824)

Note: Includes items 7-10

$

$

Not available

7

Homelite 07547

Cover, Air Box

$10.99

$

Usually ships in 3-7 days

0

8

Homelite 08108

Filter Element #1

$

$

Not available

9

Homelite 82376

Screw, Thread Forming (8-16 X .50)
(Superseded to 660669001)

$1.49

$

In Stock, only 3 left!

0

10

Homelite 07589

Nut, Lock Hex (10-24)

$1.99

$

In Stock, only 1 left!

0
