HB 25155 (UT-08123) - Homelite Blower Starter Parts Diagram

Blower

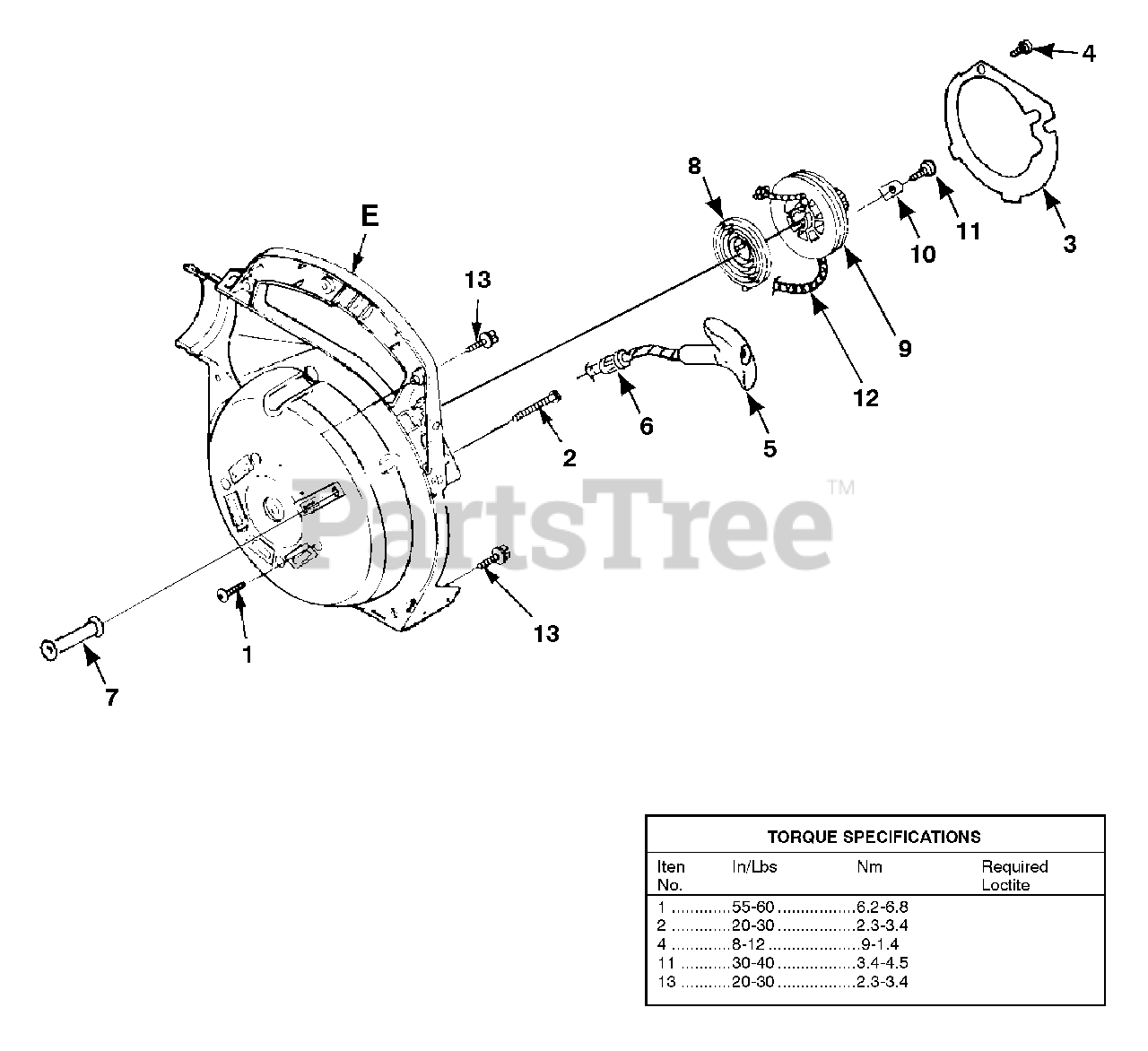

Starter Parts Diagram

  • Title
1

Homelite 82538

SCREW-Thread Form. (10-24 X 3/4")

$1.99

$

Usually ships in 3-7 days

0

2

Homelite JA416903

SCREW-Thread Form. (#10 X 1 5/8")

$2.49

$

Usually ships in 3-7 days

0

E

Homelite UP04551A

VOLUTE HOUSING & STARTER

Note: Includes items 3-12

$

$

Not available

3

Homelite 00374

PLATE-Rotor

$3.49

$

Usually ships in 3-7 days

0

4

Homelite 82528

SCREW-Thread Form. (#6 X 1 3/8")

$2.49

$

Usually ships in 3-7 days

0

5

Homelite PS00179

GRIP-Starter (Black)

$

$

Not available

6

Homelite 969811A

BUSHING-Starter

$

$

Not available

7

Homelite 00364B

GUIDE-Starter Rope
(Superseded to 650013001)

$

$

Not available

8

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

Usually ships in 3-7 days

0

9

Homelite 98770A

PULLEY-Starter

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 98791

BRACKET-Retaining

$

$

Not available

11

Homelite 82541

SCREW-Thread Form. (#10 X 1/2")

$1.99

$

In Stock, only 3 left!

0

12

Homelite 9789901

ROPE-Starter
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

13

Homelite 82563

SCREW-Thread Form. (10-24 X 3/4")

$1.99

$

In Stock, Qty 6

0
