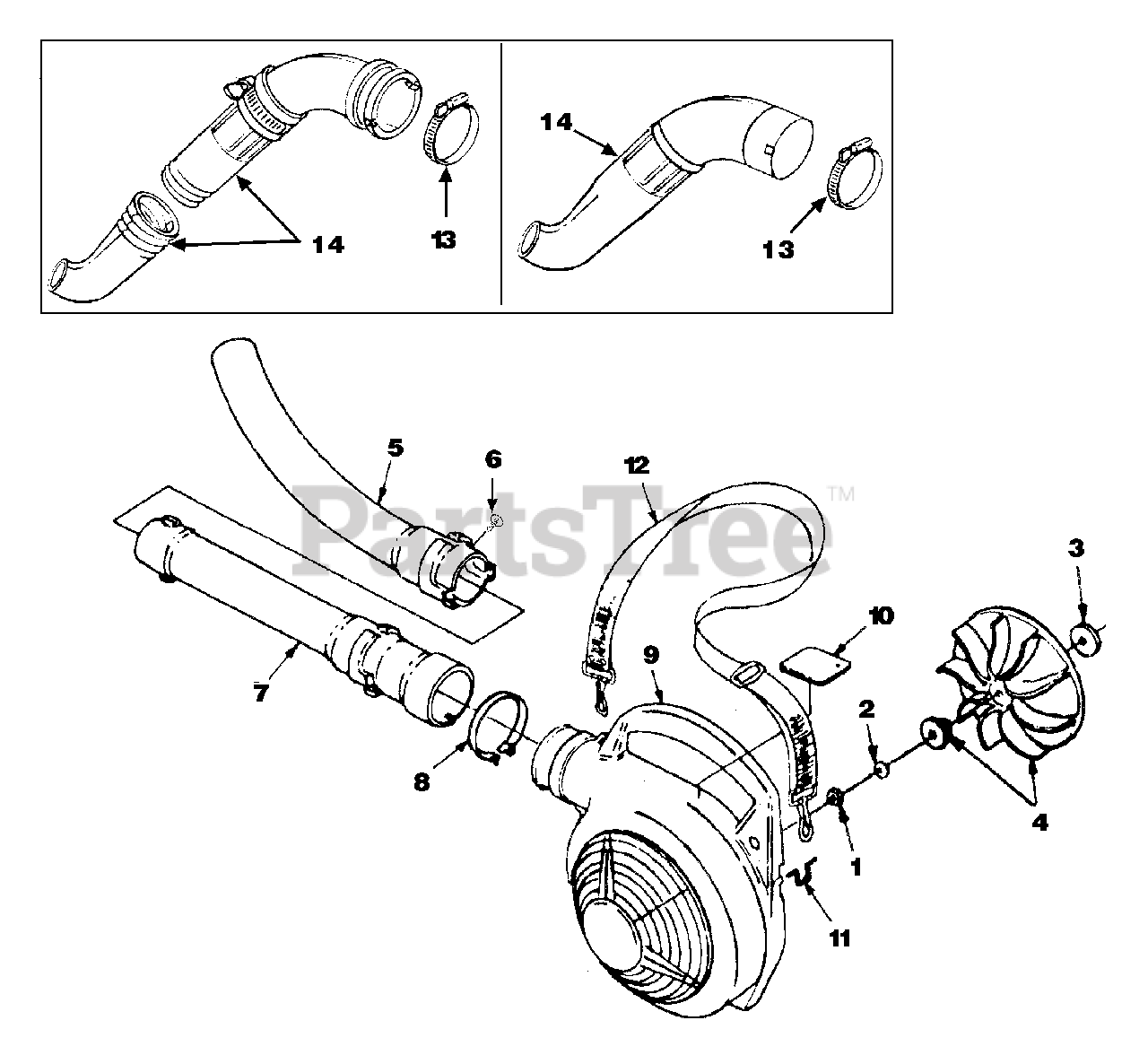

HB 251 YV (UT-08078-R) - Homelite Yardvark Blower Volute, Fan & Tubes Parts Diagram

Yardvark Blower

Volute, Fan & Tubes Parts Diagram

  • Title

1

Homelite UP03884

NUT-Hex (3/8-24)
(Superseded to 81124A)

Note: Torque Specs 130-150 In/Lbs, 14.7-16.9 Nm.

$

$

Not available

2

Homelite UP03835

WASHER-Bellville (3/8")
(Superseded to 03163)

$

$

Not available

3

Homelite UP03836

WASHER-Flat
(Superseded to 650016001)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite UP06826

BLOWER FAN KIT
(Superseded to UP06826A)

$

$

Not available

5

Homelite UP00876

NOZZLE-Sweeper
(Superseded to UP05582)

$

$

Not available

6

Homelite UP04299

CLIP - Push
(Superseded to 03873A)

$

$

Not available

7

Homelite UP00878

TUBE-Upper

$11.99

$

Usually ships in 3-7 days

0

8

Homelite UP03821

CLAMP w/Fasteners
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite UP00757

VOLUTE HOUSING (Outer)
(Superseded to UP00757A)

Note: Includes item 10

$

$

Not available

10

Homelite UP04332

DECAL-Warning
(Superseded to 08483)

$

$

Not available

11

Homelite UP03818

LOOP-Wire
(Superseded to 00398)

$

$

Not available

12

Homelite UP06723

SHOULDER STRAP
(Superseded to 96337C)

$

$

Not available

13

Homelite UP04286

CLAMP

$

$

Not available

14

Homelite UP04290

TUBE KIT

$

$

Not available

13

Homelite UP04286

CLAMP

$

$

Not available
