HB 251 YV (UT-08078-R) - Homelite Yardvark Blower Ignition With Rotor Parts Diagram

Yardvark Blower

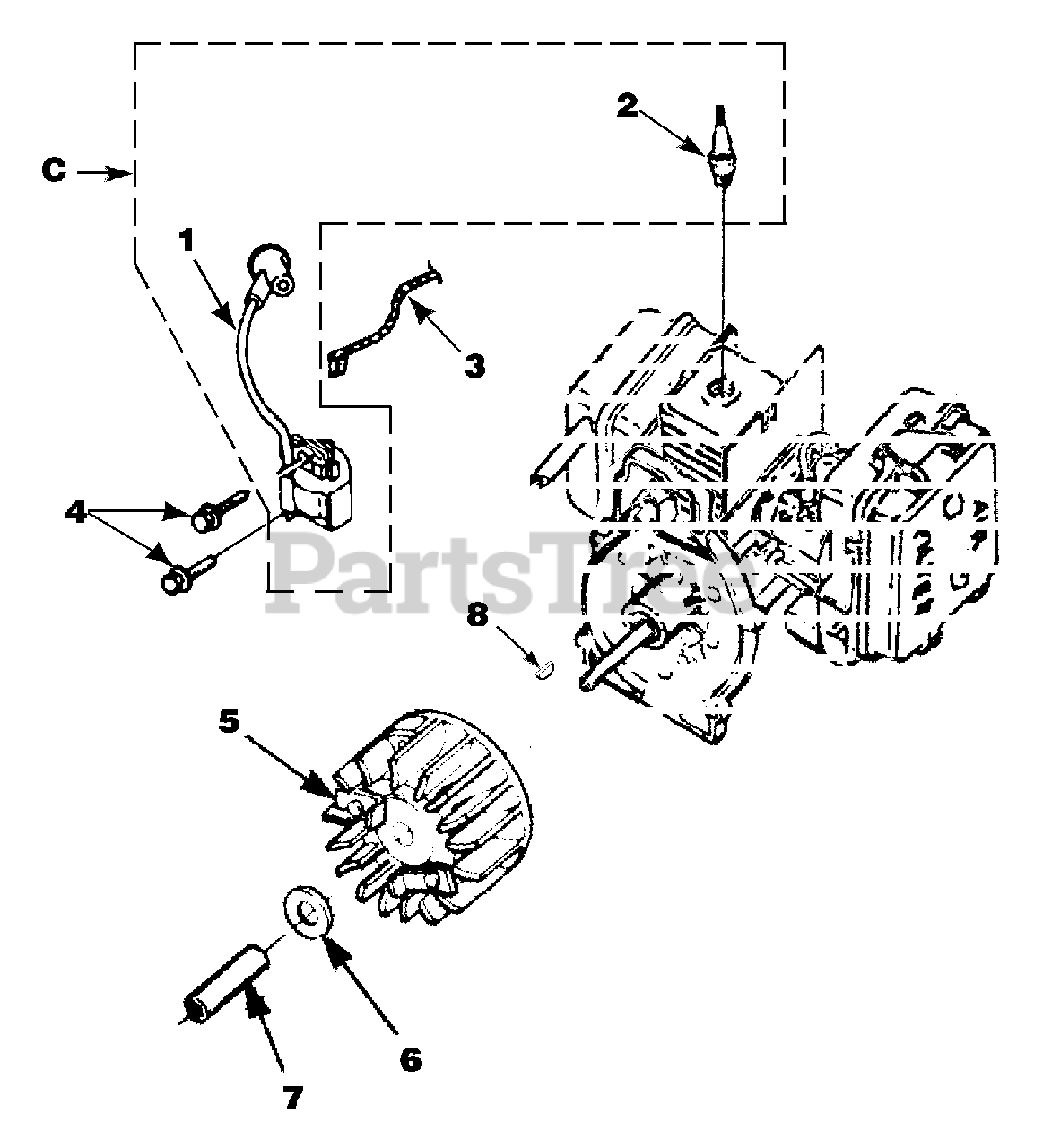

Ignition With Rotor Parts Diagram

  • Title

C

Homelite UP03858

IGNITION KIT w/Module
(Superseded to 984873001)

Note: Includes items 1-2

$

$

Not available

1

Homelite UP03868

TERMINAL-Hi-Tension
(Superseded to A33055)

$

$

Not available

2

Homelite UP03883

SPARK PLUG (RDJ-7Y)

Note: Torque Specs 120-180 In/Lbs, 13.6-20.3 Nm.

$5.49

$

In Stock, only 3 left!

0

3

Homelite A03924

LEAD-Electrical
(Superseded to UP06782)

Note: (BP250's, Backpacker & BP30185)

$13.99

$

Usually ships in 3-7 days

0

4

Homelite UP03896

SCREW-Thread Form. (8-32 x 1")
(Superseded to 82540)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm. Required Loctite 242 Blue

$2.49

$

Usually ships in 3-7 days

0

5

Homelite UP03009

ROTOR & STARTER PAWLS

$

$

Currently unavailable

6

Homelite UP03906

WASHER-Flat
(Superseded to 95479A)

$

$

Not available

7

Homelite UP03854

SPACER-Fan
(Superseded to PS03566)

$

$

Not available

8

Homelite UP03874

KEY-Woodruff
(Superseded to 69250)

$

$

Not available
