HB 251 YV (UT-08078-R) - Homelite Yardvark Blower Dolly And Bracket Parts Diagram

Yardvark Blower

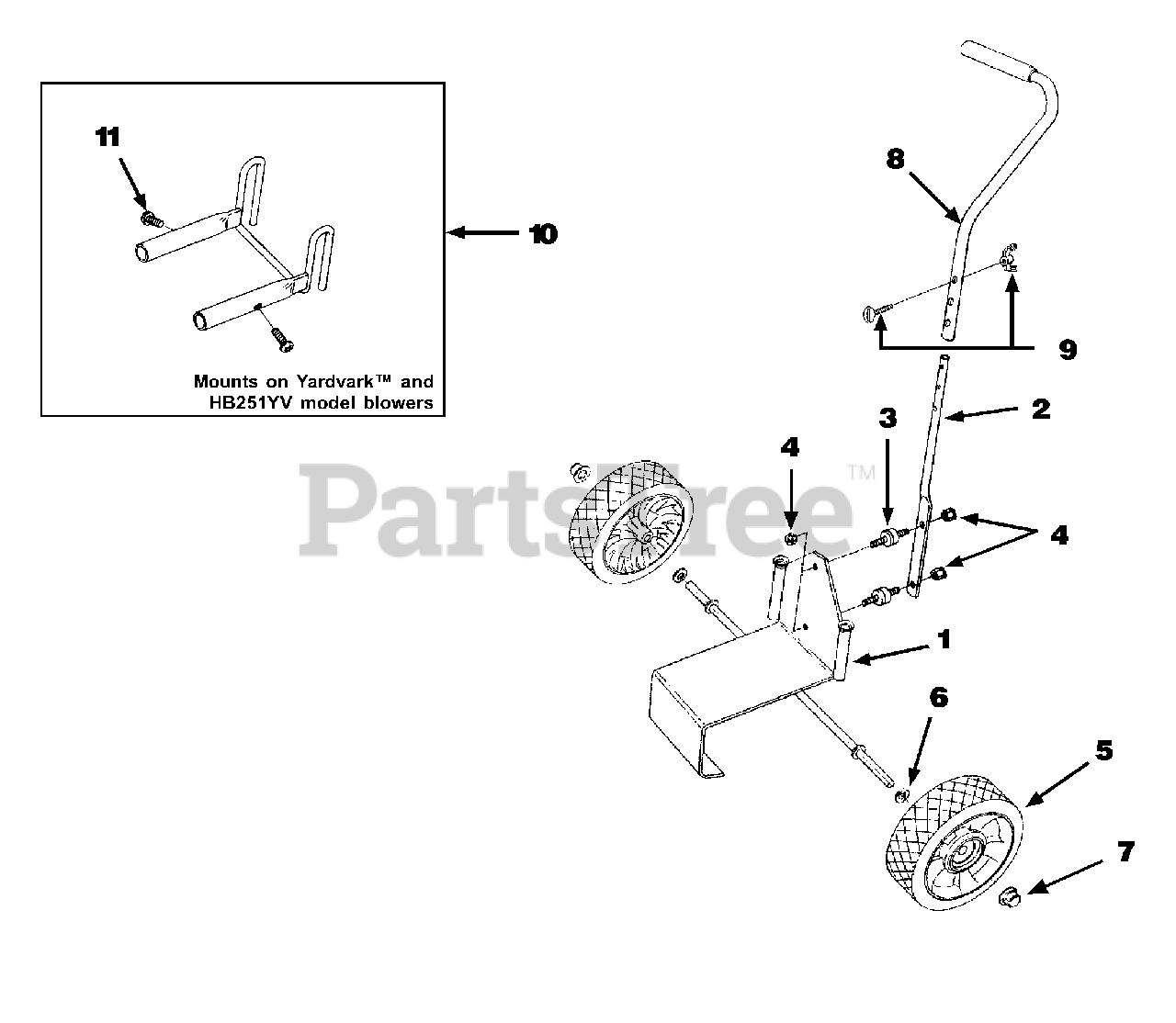

Dolly And Bracket Parts Diagram

  • Title
1

Homelite PS01106

DOLLY COMPLETE

Note: Includes items 2-7

$

$

Not available

2

Homelite UP00490

HANDLE, Lower
(Superseded to UP04285)

$

$

Not available

3

Homelite UP00489

ISOLATOR KIT (2 per)
(Superseded to UP04284A)

Note: Includes item 4

$

$

Not available

4

Homelite UP05627

NUT (1/4-20) (4 per)
(Superseded to 81204)

Note: Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm.

$5.99

$

Usually ships in 3-7 days

0

5

Homelite UP00420

WHEEL
(Superseded to UP04283)

$

$

Not available

6

Homelite UP00418

WASHER
(Superseded to UP04281)

$

$

Not available

7

Homelite UP00419

NUT, Push
(Superseded to UP04282)

$

$

Not available

8

Homelite PS01105

HANDLE, Upper

$

$

Not available

9

Homelite UP00616

SCREW & WING NUT
(Superseded to UP04287)

Note: Torque Specs Hand Tight

$

$

Not available

10

Homelite UP00417

BRACKET
(Superseded to UP04280)

Note: Includes item 11

$

$

Not available

11

Homelite UP04291

SCREW, Torx Hd. (8-32 x 1/2")

Note: Torque Specs 12-17 In/Lbs, 1.4-1.9 Nm.

$

$

Not available
