HB 250 - RedMax Handheld Blower (SN: KU413473 & Above) (2008-05) 004 - BLOWER Parts Diagram

Handheld Blower

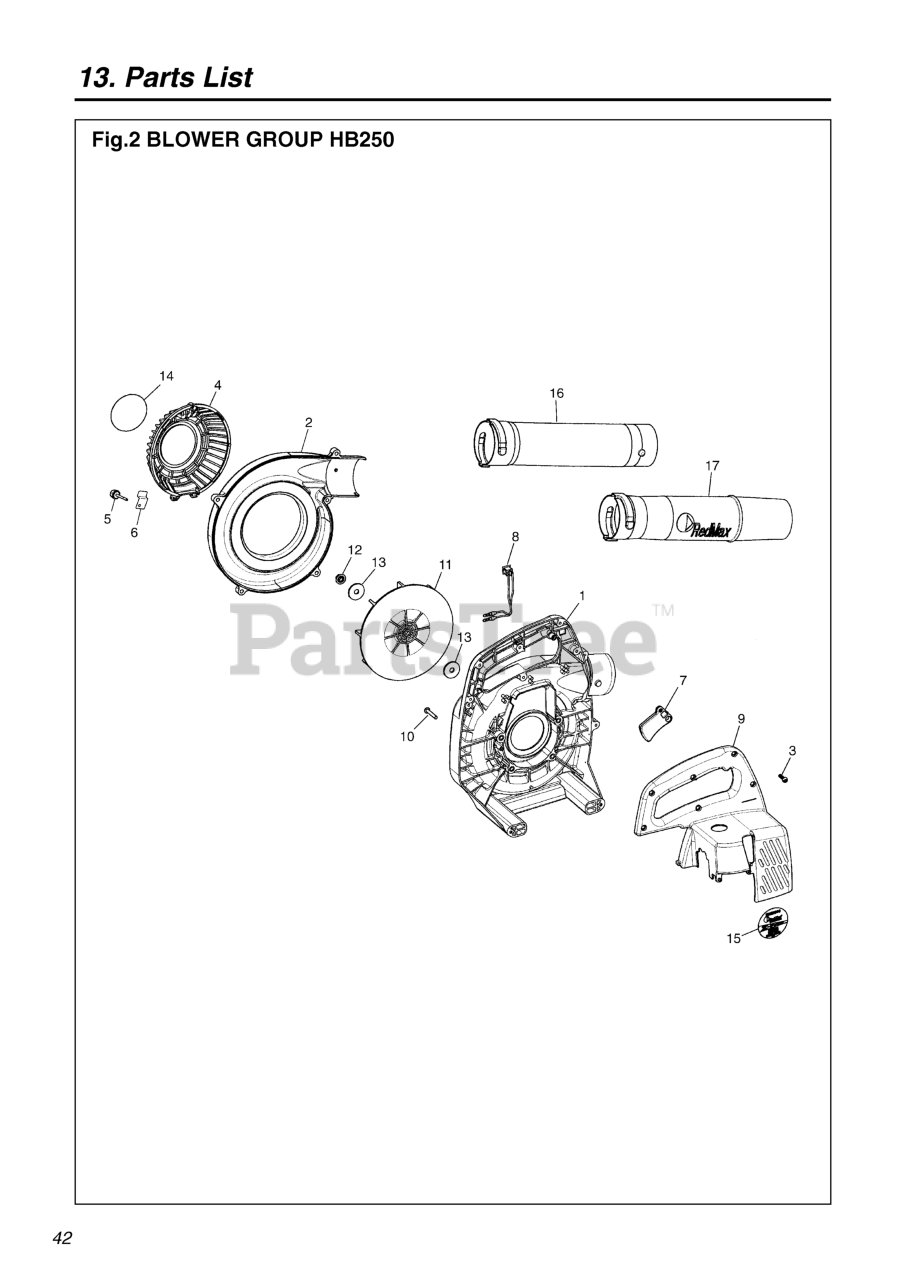

004 - BLOWER Parts Diagram

  • Title

1

RedMax 848L0F55A1

VOLUTE CASE (RPLS. 6811-11110)
(Superseded to 511658901)

$

$

Not available

2

RedMax 848L0F55B0

VOLUTE COVER
(Superseded to 528892801)

$

$

Not available

3

RedMax T497052000

SCREW, TORX (RPLS T4970-52001)
(Superseded to 521863601)

$3.49

$

In Stock, only 4 left!

0

4

RedMax 681111130

GUARD
(Superseded to 515703901)

$15.99

$

Usually ships in 3-10 days

0

5

RedMax 681111170

SCREW
(Superseded to 521507201)

$

$

Not available

6

RedMax 681111160

PLATE

$1.95

$

Usually ships in 3-10 days

0

7

RedMax 681111150

LEVER
(Superseded to 515704001)

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 681172200

SWITCH
(Superseded to 515705701)

$13.99

$

Usually ships in 3-10 days

0

9

RedMax 848L0F31A0

ENGINE COVER
(Superseded to 521671901)

$

$

Not available

10

RedMax T496053510

SCREW
(Superseded to 521863201)

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 681112110

FAN
(Superseded to 515704501)

$11.99

$

Usually ships in 3-10 days

0

12

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 681112220

WASHER
(Superseded to 515704701)

$6.99

$

Usually ships in 3-10 days

0

14

RedMax 848L0F90S0

LABEL, CAUTION

$2.05

$

Usually ships in 3-10 days

0

15

RedMax 848L0F90C0

LABEL, RECOIL

$1.87

$

Usually ships in 3-10 days

0

16

RedMax 681151211

PIPE, STRAIGHT
(Superseded to 577079301)

$7.99

$

In Stock, Qty 13

0

17

RedMax 681151220

PIPE, END
(Superseded to 521672301)

$17.99

$

In Stock, only 2 left!

0
