HB 250 - RedMax Handheld Blower (SN: KU413473 & Above) (2004-07) 016 - ENGINE GROUP Parts Diagram

Handheld Blower

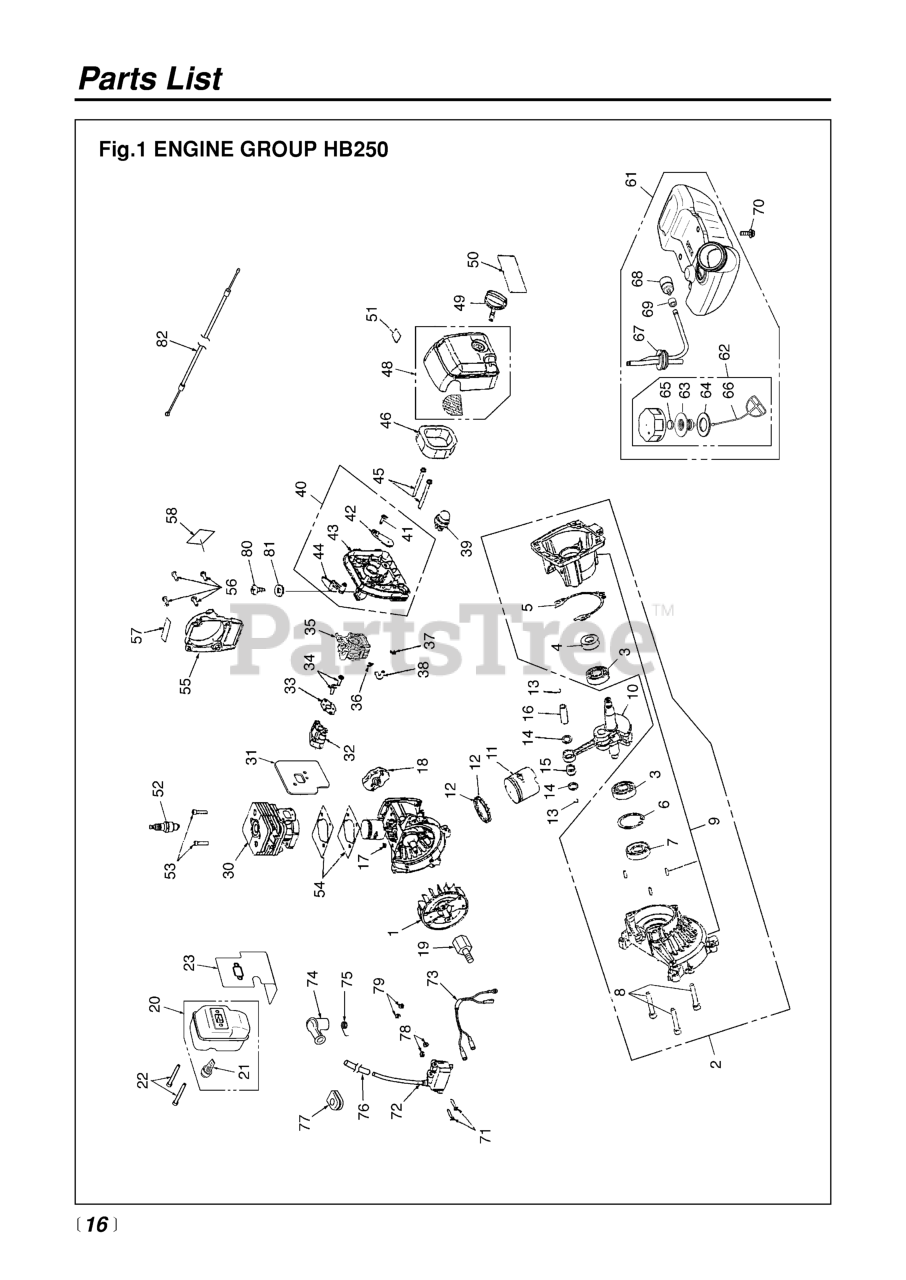

016 - ENGINE GROUP Parts Diagram

  • Title
1

RedMax 6457402

ROTOR
(Superseded to 521471201)

$21.99

$

Usually ships in 3-10 days

0

2

RedMax 4309501

CRANKCASE & SHAFT ASS
(Superseded to 521322701)

$91.99

$

Usually ships in 3-10 days

0

3

RedMax 6968501

BEARING
(Superseded to 521512301)

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 5687501

SEAL (REPLACES 5987501)
(Superseded to 521383801)

$

$

Not available

5

RedMax 9071301

GASKET, CRANKCASE
(Superseded to 521683501)

$2.49

$

Usually ships in 3-10 days

0

6

RedMax 6968401

RING
(Superseded to 521512201)

$1.49

$

Usually ships in 3-10 days

0

7

RedMax 5687401

SEAL
(Superseded to 521383701)

$

$

Not available

8

$0.27

$

Usually ships in 3-10 days

0

9

RedMax 3075003

CRANKCASE ASS
(Superseded to 520830401)

$

$

Not available

10

RedMax 3090101

CRANKSHAFT ASS

$

$

Not available

11

RedMax 6457303

PISTON
(Superseded to 521471101)

$8.99

$

Usually ships in 3-10 days

0

12

RedMax 6969001

RING, PISTON
(Superseded to 521512701)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 6969101

CLIP RING
(Superseded to 521512801)

$1.49

$

Usually ships in 3-10 days

0

14

RedMax 6968701

WASHER
(Superseded to 521512401)

$1.49

$

Usually ships in 3-10 days

0

15

RedMax 6997001

NEEDLE BEARING
(Superseded to 521513601)

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 6230101

WRIST PIN
(Superseded to 521434701)

$2.49

$

Usually ships in 3-10 days

0

$0.86

$

Usually ships in 3-10 days

0

18

RedMax 4300401

PULLEY ASS
(Superseded to 521322601)

$

$

Not available

19

RedMax 551643230

EXTENSION
(Superseded to 515426801)

$10.99

$

Usually ships in 3-10 days

0

20

RedMax T151315100

MUFFLER-ASSY
(Superseded to 521750301)

$11.99

$

Usually ships in 3-10 days

0

21

RedMax 481015140

ARRESTER
(Superseded to 506615601)

$9.99

$

In Stock, only 2 left!

0

22

RedMax T495057030

BOLT,TORX, M5X70
(Superseded to 521861901)

$

$

Not available

23

RedMax T151315210

GASKET
(Superseded to 521750401)

$

$

Not available

30

RedMax 6457003

CYLINDER
(Superseded to 521463801)

$42.99

$

Usually ships in 3-10 days

0

31

RedMax 848EU214B0

GASKET, INSULATOR
(Superseded to 521604301)

$

$

Not available

32

RedMax 5994702

INSULATOR
(Superseded to 521401301)

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 9071103

GASKET, CARBURETOR
(Superseded to 521683301)

$

$

Not available

34

RedMax 6634402

SCREW, TORX
(Superseded to 521498501)

$1.49

$

Usually ships in 3-10 days

0

35

RedMax 3074518

CARBURETOR
(Superseded to 520830201)

$

$

Not available

36

RedMax 6970001

CLIP, HOSE
(Superseded to 521513201)

$

$

Not available

37

RedMax 6969901

CLIP, HOSE
(Superseded to 521513101)

$

$

Not available

38

RedMax 5688002

PLASTIC RUBBER, TUBING
(Superseded to 521384201)

$

$

Not available

39

RedMax 3078001

PRIMER ASS
(Superseded to 520783001)

$

$

Not available

40

RedMax 3097402

CHOKE LEVER & PLATE ASS
(Superseded to 520851301)

$8.99

$

Usually ships in 3-10 days

0

41

RedMax 6634501

SCREW, TORX

$0.30

$

Usually ships in 3-10 days

0

42

RedMax 5994601

CHOKE PLATE
(Superseded to 521401201)

$1.49

$

Usually ships in 3-10 days

0

43

RedMax 4315001

CARBURETOR PLATE
(Superseded to 521322801)

$

$

Not available

44

RedMax 5945801

CHOKE LEVER
(Superseded to 521399201)

$1.49

$

Usually ships in 3-10 days

0

45

RedMax 6634601

BOLT, CARBURETOR
(Superseded to 521498801)

$1.49

$

Usually ships in 3-10 days

0

46

RedMax 5687301

ELEMENT
(Superseded to 521383601)

$

$

Not available

48

RedMax 3099904

COVER ASS
(Superseded to 520851401)

$

$

Not available

49

RedMax 5946101

KNOB
(Superseded to 521399301)

$1.49

$

Usually ships in 3-10 days

0

50

$0.37

$

Usually ships in 3-10 days

0

51

RedMax 9506009

LABEL, START
(Superseded to 521693901)

$0.99

$

Usually ships in 3-10 days

0

52

RedMax 8714402

SPARK PLUG
(Superseded to 514441301)

$18.99

$

Usually ships in 3-10 days

0

53

RedMax 6634201

CAP SCREW
(Superseded to 521498301)

$1.49

$

Usually ships in 3-10 days

0

54

RedMax 9070901

GASKET, CYLINDER
(Superseded to 521683101)

$

$

Not available

55

RedMax 3075304

RECOIL ASSY
(Superseded to 574067701)

$

$

Not available

56

RedMax 6635101

SCREW, TORX
(Superseded to 521499201)

$1.49

$

Usually ships in 3-10 days

0

57

RedMax 9506010

LABEL, E START

$0.27

$

Usually ships in 3-10 days

0

58

RedMax 848L0F90D0

DECAL, EMISSION

$

$

Not available

61

RedMax 848EU28500

TANK-A
(Superseded to 574100901)

$

$

Not available

62

RedMax T101585202

CAP ASSY (RPLS -85201)
(Superseded to 504117701)

$30.99

$

In Stock, only 3 left!

0

63

RedMax 450085300

HOLDER (REPLACES -85230)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

64

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

In Stock, only 2 left!

0

65

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 1 left!

0

66

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

67

RedMax 848EU28530

PIPE-C
(Superseded to 521604401)

$

$

Not available

68

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

69

RedMax 284131280

1260-85460
(Superseded to 506707001)

$4.99

$

In Stock, Qty 8

0

70

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

71

RedMax 6634901

BOLT, TORX

$0.18

$

Usually ships in 3-10 days

0

72

RedMax 3075204

COIL & BOLT ASSY.
(Superseded to 520830601)

$

$

Not available

73

$5.66

$

Usually ships in 3-10 days

0

74

RedMax 190072112

CAP
(Superseded to 513443401)

$6.49

$

Usually ships in 3-10 days

0

75

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

76

RedMax T151371320

TUBE
(Superseded to 521750901)

$

$

Not available

77

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

78

RedMax 5946201

SPACER
(Superseded to 521399401)

$1.49

$

Usually ships in 3-10 days

0

79

$0.30

$

Usually ships in 3-10 days

0

80

RedMax 263031950

SCREW
(Superseded to 574095601)

$1.49

$

Usually ships in 3-10 days

0

81

RedMax 148486280

WASHER
(Superseded to 513287101)

$3.99

$

Usually ships in 3-10 days

0

82

RedMax 551683101

CABLE COMP (RPLS, -83100)
(Superseded to 515427701)

$5.99

$

Usually ships in 3-10 days

0
