HB 180 V (UT-08010) - Homelite Blower Blower Parts Diagram

Blower

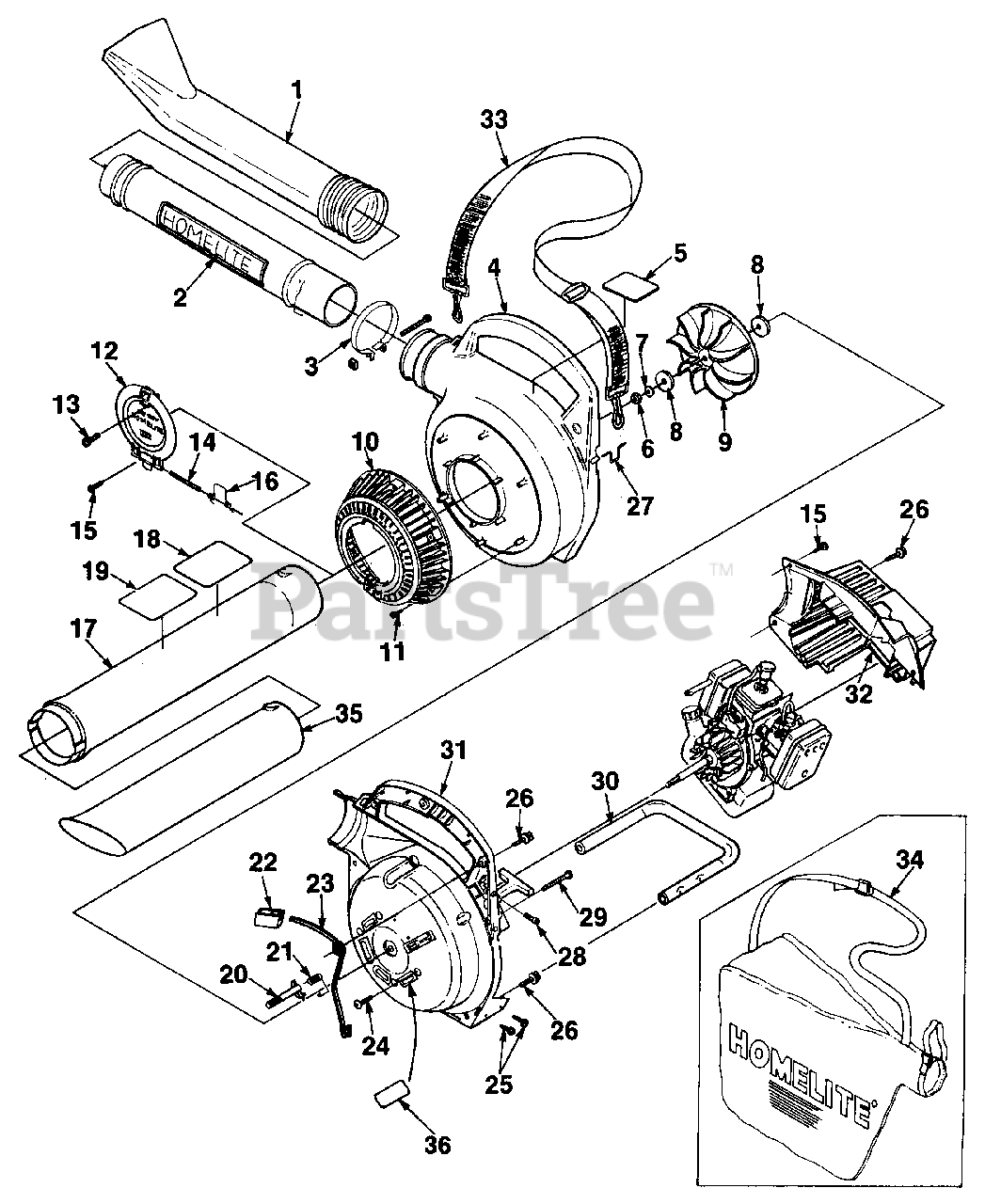

Blower Parts Diagram

  • Title
1

Homelite 00373

NOZZLE - Sweeper
(Superseded to 580556001)

$

$

Not available

2

Homelite A00399A

TUBE w/DECAL
(Superseded to UP04365)

$

$

Not available

3

Homelite 00433

CLAMP
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 00316

HOUSING - Volute (outer)

$

$

Not available

5

Homelite 00375

DECAL - Warning

$

$

Currently unavailable

6

Homelite 81117

NUT - Hex 5/16-24

$2.49

$

In Stock, only 1 left!

0

7

Homelite 70788

WASHER - Belleville #10
(Superseded to UP06837)

$

$

Not available

8

Homelite 00380

WASHER - Fan

$

$

Not available

9

Homelite 00318

FAN - Blower
(Superseded to 000998274)

$

$

Not available

10

Homelite 00320

GRILLE - Blower Vac

$

$

Not available

11

Homelite 82528

SCREW - Thd forming (#6-19 x 3/4)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 00319

COVER - Access
(Superseded to 984910001)

$

$

Not available

13

Homelite 82312

SCREW - Thd Rolling #10 x 5/8

$

$

Not available

14

Homelite 00384

PIN - Cover hinge
(Superseded to UP06613)

$

$

Not available

15

Homelite 82376

SCREW - Thd forming #8 x 1/2
(Superseded to 660669001)

$1.49

$

In Stock, only 3 left!

0

16

Homelite 00371

SPRING - Access Cover
(Superseded to 984910001)

$

$

Not available

17

Homelite A00386

TUBE w/DECAL (Inner) 180V Only

Note: (INCLUDES #18 & 19)

$

$

Currently unavailable

18

Homelite 00376

DECAL (180V Only)

$

$

Currently unavailable

19

Homelite 00819

DECAL - Warning 180V Only

$

$

Not available

20

Homelite 00368

LATCH - Throttle
(Superseded to 00368A)

$

$

Not available

21

Homelite 00370

SPRING - Throttle latch
(Superseded to 638075001)

$

$

Not available

22

Homelite 00367

TRIGGER - Throttle

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 00369

LEVER - Throttle
(Superseded to 00369A)

$

$

Not available

24

Homelite 82508

SCREW - Thd Forming

$

$

Currently unavailable

25

Homelite 82348

SCREW - Tapping pan #8 x 1/2
(Superseded to 82348A)

$

$

Not available

26

Homelite 70771

SCREW - Thd forming #10 x 3/4
(Superseded to UP03900)

$1.99

$

In Stock, Qty 6

0

27

Homelite 00398

LOOP - Wire

$

$

Not available

28

Homelite 82146

SCREW - Fil. hd. #8-32 x 5/8
(Superseded to UP03887)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite JA416903

SCREW - Hex hd. #10 x 1 5/8

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 00393

HANDLE - Lower (180V Only)

$

$

Not available

31

Homelite 00315

HOUSING - Volute (inner)
(Superseded to UP06792A)

$

$

Not available

32

Homelite 00321

SHROUD
(Superseded to UP06522A)

$

$

Not available

33

Homelite DA98138A

STRAP - Shoulder

$

$

Currently unavailable

34

Homelite A00392

BAG - Leaf (180V Only)

$

$

Currently unavailable

35

Homelite 003631

TUBE - (outer) 180V Only

$

$

Currently unavailable

36

Homelite A00813

KIT - Sealing

$

$

Currently unavailable
