HB 180 V (UT-08010-C) - Homelite Blower Muffler And Air Cleaner Parts Diagram

Blower

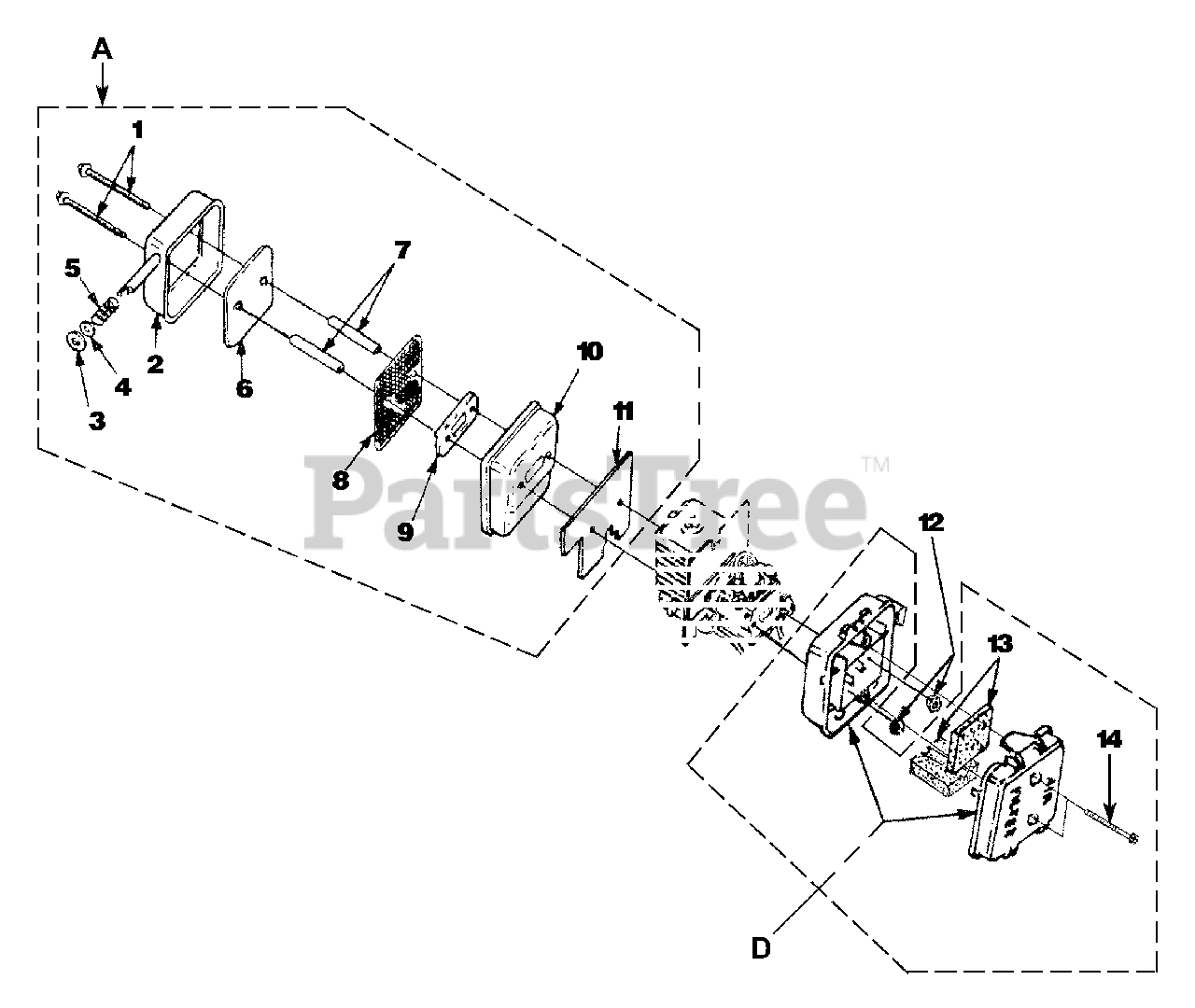

Muffler And Air Cleaner Parts Diagram

  • Title

A

Homelite UP04486

MUFFLER-Complete
(Superseded to PA01181)

Note: Includes items 1-11

$

$

Not available

1

Homelite UP03902

SCREW-Sems Hex Hd. (10-24 x 2 1/2")
(Superseded to 88060)

Note: Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm.

$2.49

$

Usually ships in 3-7 days

0

2

Homelite UP03810

MUFFLER COVER
(Superseded to A00366)

$

$

Not available

3

Homelite UP03813

WASHER-Insulating
(Superseded to 00381)

$

$

Not available

4

Homelite UP03901

WASHER-Flat
(Superseded to 84117)

$

$

Not available

5

Homelite UP03814

SPRING-Compression
(Superseded to 00387)

$

$

Not available

6

Homelite UP04289

DEFLECTOR-Muffler
(Superseded to 00777)

$5.49

$

Usually ships in 3-7 days

0

7

Homelite UP03860

SPACER-Muffler
(Superseded to 04785)

$

$

Not available

8

Homelite UP03815

SCREEN-Spark Arrestor
(Superseded to 00388B)

$

$

Not available

9

Homelite UP03918

PLATE-Reinforcing
(Superseded to 98783)

$

$

Not available

10

Homelite UP04305

BODY-Muffler
(Superseded to 04710)

$28.99

$

Usually ships in 3-7 days

0

11

Homelite UP03817

GASKET-Muffler
(Superseded to 00394B)

Note: Also included with Short block & Cylinder Kits.

$

$

Not available

12

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$

$

Not available

D

Homelite UP00011

AIR FILTER KIT

Note: Includes items 13-14

$

$

Not available

13

Homelite UP00012

AIR FILTER

$

$

Not available

14

Homelite UP03890

SCREW-Thd. Form. (#8-16 x 3/4")
(Superseded to PS00055)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$

$

Not available
