HB-112 (2029932) - Allis-Chalmers Garden Tractor, 12hp CLUTCH AND BRAKE GROUP Parts Diagram

Garden Tractor, 12hp

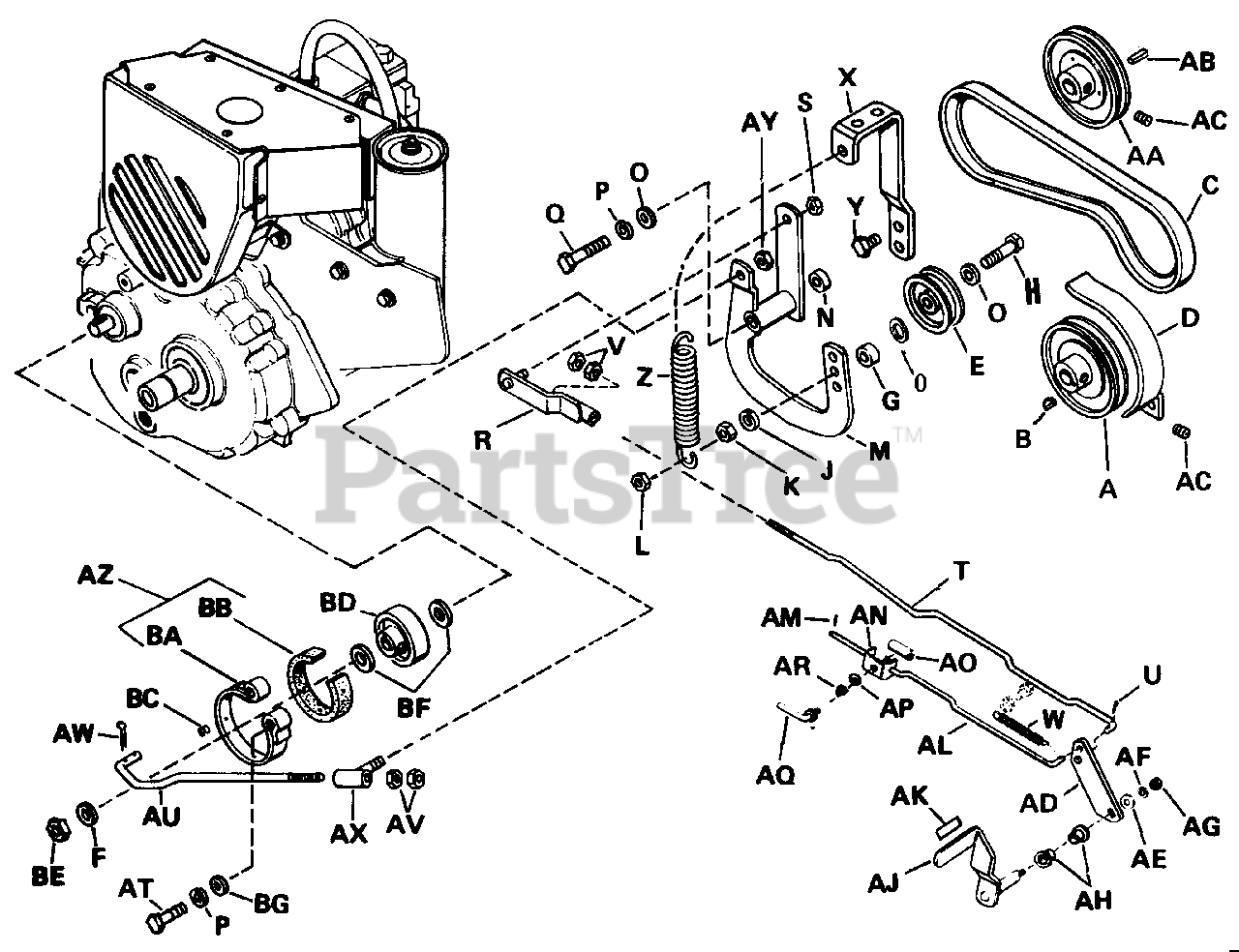

CLUTCH AND BRAKE GROUP Parts Diagram

  • Title

A

Simplicity 154308

Driver Pulley

$

$

Not available

B

Simplicity 2725003

Woodruff Key, 3/16" x 3/4"

$

$

Not available

C

Simplicity 2166172SM

BELT, A-Sect, 47.30

$30.99

$

Usually ships in 2-12 days

0

D

Simplicity 2166122SM

Belt Guard Assembly

$

$

Not available

E

Simplicity 2164268

Idler Pulley

$

$

Not available

F

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

G

Simplicity 2157081SM

Spacer

$8.99

$

In Stock, Qty 6

0

H

Simplicity 2705003

Hex. Capscrew, 3/8-16 x 2-1/4" lg.

$

$

Not available

J

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

K

Simplicity 2717003

Full Hex. Nut, 3/8"-16 N.C.

$

$

Not available

L

Simplicity 2717524

Jam Hex. Lock Nut. 3/8"-16 N.C.

$

$

Not available

M

Simplicity 2166126SM

Idler Lever Assembly

$

$

Not available

N

Simplicity 2166130SM

Spacer

$14.99

$

Usually ships in 2-12 days

0

O

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

P

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

Q

Simplicity 2715063

Hex. Capscrew, 7/16"-14 x 3-3/4"

$

$

Not available

R

Simplicity 2166157SM

Rod Guide Assembly,
(Superseded to 2166157ASM)

$53.99

$

Usually ships in 2-12 days

0

S

Simplicity 2717511

Full Hex. Lock Nut, 5/16"-18 N.C.

$

$

Not available

T

Simplicity 166131

Clutch & Brake Rod

$

$

Not available

U

Simplicity 2722009

Cotter Pin, 1/8" x 3/4" lg.

$

$

Not available

V

Simplicity 2717001

Full Hex. Nut, 5/16"-18 N.C.

$

$

Not available

W

Simplicity 2159106SM

Front Tension Spring
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

X

Simplicity 2166156

SpringBracket, 1/4x 1 x 11-1/4"

$

$

Not available

Y

Simplicity 2714027

Hex. Hd. Capscrew, 3/8 x 3/4"

$

$

Not available

Z

Simplicity 2154369SM

Idler Pulley Spring

$17.99

$

In Stock, Qty 8

0

AA

Simplicity 2166173SM

Driven Pulley
(Superseded to 2166173ASM)

$117.99

$

Usually ships in 2-12 days

0

AB

Simplicity 2157332

Key

$

$

Not available

AC

Simplicity 2713503

Cup Pt. Socket Hd. Set Screw, 5/16-18 x 5/16"

$

$

Not available

AD

Simplicity 2157300SM

Food Pedal Arm, 1/4 x 1-3/4 x 5-7/8"

$13.99

$

Usually ships in 2-12 days

0

AE

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AF

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AG

Simplicity 2717003

Full Hex. Nut, 3/8" 16 N.C.

$

$

Not available

AH

Simplicity 2108419

Bushing

$

$

Not available

AJ

Simplicity 157280

Foot Pedal Assembly

$

$

Not available

AK

Simplicity 162098

Pedal Pad

$

$

Not available

AL

Simplicity 164210

Parking Brake Rod

$

$

Not available

AM

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

AN

Simplicity 164143

Parking Brake Bracket Assy.

$

$

Not available

AO

Simplicity 157287

Spacer

$

$

Not available

AP

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

AQ

Simplicity 164142

Parking Brake Lock

$

$

Not available

AR

Simplicity 2157127SM

Conical Spring

$

$

Not available

AT

Simplicity 2705010

Hex. Capscrew, 3/8" 16 x 1-3/4" lg.

$

$

Not available

AU

Simplicity 166058

Brake Rod

$

$

Not available

AV

Simplicity 2717003

Full Hex. Nut, 3/8"-16 N.C.

$

$

Not available

AW

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

AX

Simplicity 2166119SM

Rod Guide Assembly

$51.99

$

In Stock, only 1 left!

0

AY

Simplicity 2717511

Full Hex. Lock Nut, 5/16"-18 N.C.

$

$

Not available

AZ

Simplicity 2166057

Brake Band & Lining Assembly

$

$

Not available

BA

Simplicity 166056

Brake Band

$

$

Not available

BB

Simplicity 166055

Brake Lining

$

$

Not available

BC

Simplicity 2724502

Rivet No. 7 x 1/4" lg.

$

$

Not available

BD

Simplicity 2166176SM

Brake Drum

$14.99

$

Usually ships in 2-12 days

0

BE

Simplicity 2717519

Lock Nut. 7/16"-14

$

$

Not available

BF

Simplicity 2158196SM

Washer

$5.49

$

Usually ships in 2-12 days

0

BG

Simplicity 2719002

Plain Washer 5/16"

$

$

Not available
