HB-112 (2029932) - Allis-Chalmers Garden Tractor, 12hp 46" DOZER BLADE Parts Diagram

Garden Tractor, 12hp

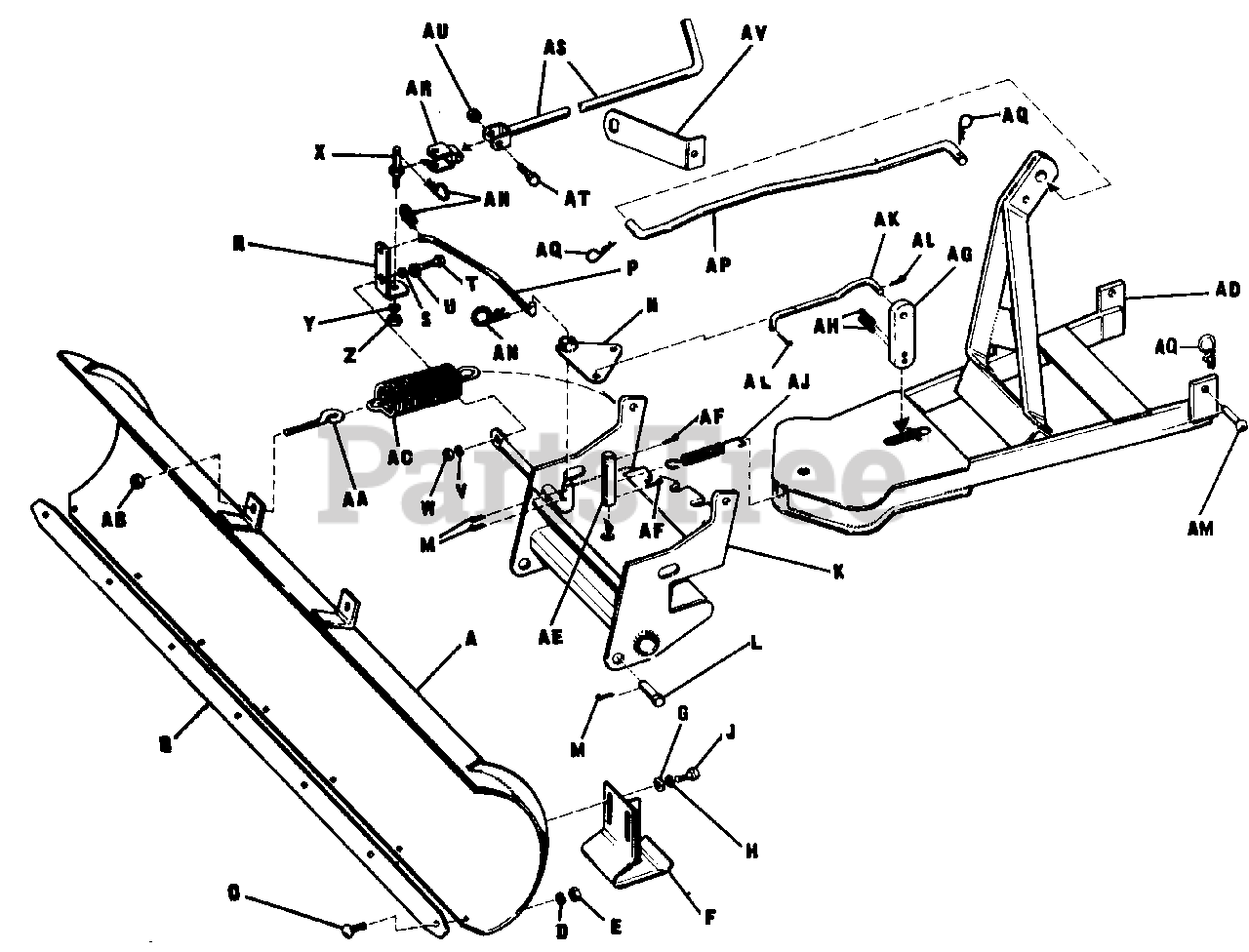

46" DOZER BLADE Parts Diagram

  • Title

A

Simplicity 2107096

Blade Assy.

$

$

Not available

B

Simplicity 2107105SM

Wear Plate

$

$

Not available

C

Simplicity 2702002

Carriage Bolt, 3/8"-16 x 1" lg.

$

$

Not available

D

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

E

Simplicity 2717003

Full Hex Nut 3/8"-16 N.C.

$

$

Not available

F

Simplicity 2107106SM

Shoe Assy
(Superseded to 2107106ASM)

$68.99

$

In Stock, only 3 left!

0

G

Simplicity 2719001

Flat Washer 3/8"

$

$

Not available

H

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

J

Simplicity 2705004

hex. Cap Screw 3/8"-16 x 3/4"

$

$

Not available

K

Simplicity 2107109

Plvot Frame Assy.

$

$

Not available

L

Simplicity 2154305

Yoke Pin

$

$

Not available

M

Simplicity 2722006

Cotter Pln 1/8 Dia. x 1"

$

$

Not available

N

Simplicity 2107116SM

Pivot Plate Assy.

$

$

Not available

P

Simplicity 2107118SM

Pivot Rod

$9.99

$

Usually ships in 2-12 days

0

Q

Simplicity 106687

Bracket

$

$

Not available

R

Simplicity 107119

Pivot Arm

$

$

Not available

S

Simplicity 2156150SM

Spacer

$11.99

$

Usually ships in 2-12 days

0

T

Simplicity 2705007

Hex Cap Screw 5/16"-18 x 1" lg.

$

$

Not available

U

Simplicity 2719002

Plain Washer 5/16"

$

$

Not available

V

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

W

Simplicity 2717001

Pull Hex. Nut 5/16"-18 N.C.

$

$

Not available

X

Simplicity 2107120SM

Plvot Stud

$38.99

$

Usually ships in 2-12 days

0

Y

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

Z

Simplicity 2717001

Full Hex. Nut 5/16"-18

$

$

Not available

AA

Simplicity 2107121SM

Eyebolt

$14.99

$

Usually ships in 2-12 days

0

AB

Simplicity 2717001

Full Hex. Nut 5/16"-18

$

$

Not available

AC

Simplicity 2101126SM

Spring

$46.99

$

In Stock, only 1 left!

0

AD

Simplicity 107122

Push Bar Ass'y

$

$

Not available

AE

Simplicity 2107133

Pivot Pin 5/8" Dia. x 3-3/8" lg.

$

$

Not available

AF

Simplicity 2722003

Cotter Pin 3/16 x 1-1/4" lg.

$

$

Not available

AG

Simplicity 107134

Latch

$

$

Not available

AH

Simplicity 2723002

Roll Pin 7/32" Dia. x 1" lg.

$

$

Not available

AJ

Simplicity 2107135SM

Latch Spring

$32.99

$

Usually ships in 2-12 days

0

AK

Simplicity 2107136SM

Latch Rod

$53.99

$

Usually ships in 2-12 days

0

AL

Simplicity 2722016

Cotter Pin 3/32" Dia. x 5/8"

$

$

Not available

AM

Simplicity 2118053SM

(Hitch) Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

AN

Simplicity 2106787

Spring Clip

$

$

Not available

AP

Simplicity 107143

Front Lift-Rod

$

$

Not available

AQ

Simplicity 2106788

Spring Clip

$

$

Not available

AR

Simplicity 2106131SM

Fork Ass'y

$75.99

$

Usually ships in 2-12 days

0

AS

Simplicity 107137

Handle Ass'y

$

$

Not available

AT

Simplicity 2705018

Hex. Cap Screw 5/16"1-18 x 1-1/2"

$

$

Not available

AU

Simplicity 2717511

Full Lock Hex. Nut 5/16"-18

$

$

Not available
