HB-112 (2029932) - Allis-Chalmers Garden Tractor, 12hp 42" GRADER BLADE Parts Diagram

Garden Tractor, 12hp

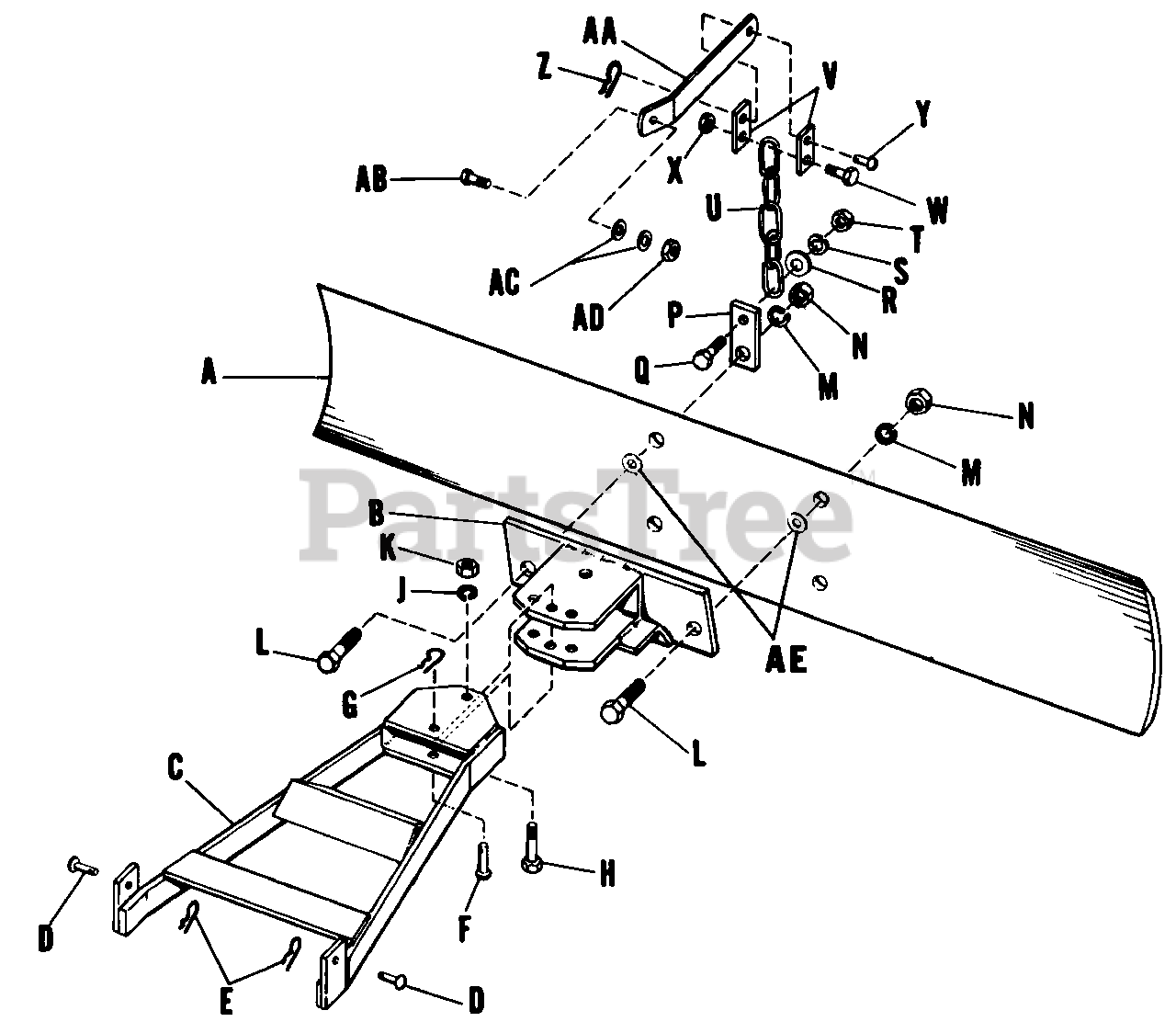

42" GRADER BLADE Parts Diagram

  • Title

A

Simplicity 107056

Blade, Grader, 42"

$

$

Not available

B

Simplicity 107058

Hitch Assembly

$

$

Not available

C

Simplicity 107062

Draw Bar Assembly

$

$

Not available

D

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

E

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

F

Simplicity 1729275SM

Pin

$18.99

$

Usually ships in 2-12 days

0

G

Simplicity 1960033SM

Spring Clip

$3.49

$

In Stock, Qty 20+

0

H

Simplicity 2705056

Capscrew, Hex Head, 5/8"-11 NC x 3" lg .

$

$

Not available

J

Simplicity 2720005

Lockwasher, 5/8"

$

$

Not available

K

Simplicity 2717004

Nut, Hex, Full, 5/8"-11 NC

$

$

Not available

L

Simplicity 705055

Capscrew, Hex Head, 5/8"-11 NC x 2" lg,

$43.99

$

Usually ships in 2-12 days

0

M

Simplicity 2720005

Lockwasher, 5/8"

$

$

Not available

N

Simplicity 2717004

Nut, Hex, Full, 5/8"-11 NC

$

$

Not available

P

Simplicity 107057

Link

$

$

Not available

Q

Simplicity 2705005

Capscrew, Hex Head, 3/8"-16 NC x 1 1/4" lg.

$

$

Not available

R

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

S

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

T

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

U

Simplicity 2107031SM

Chain
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

V

Simplicity 108199

Link

$

$

Not available

W

Simplicity 2705005

Capscrew, Hex Head, 3/8"-16 NC x 1 1/4" lg.

$

$

Not available

X

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

Y

Simplicity 1708298SM

Pin

$

$

Not available

Z

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

AA

Simplicity 108198

Lever

$

$

Not available

AB

Simplicity 2705016

Capscrew, Hex Head, 3/8"-16 NC x 1 1/4" lg.

$

$

Not available

AC

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AD

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

AE

Simplicity 2121210SM

Flat Washer, 1-1/16"

$1.99

$

Usually ships in 2-12 days

0
