HB 100 (UT-08011) - Homelite Blower Blower Parts Diagram

Blower

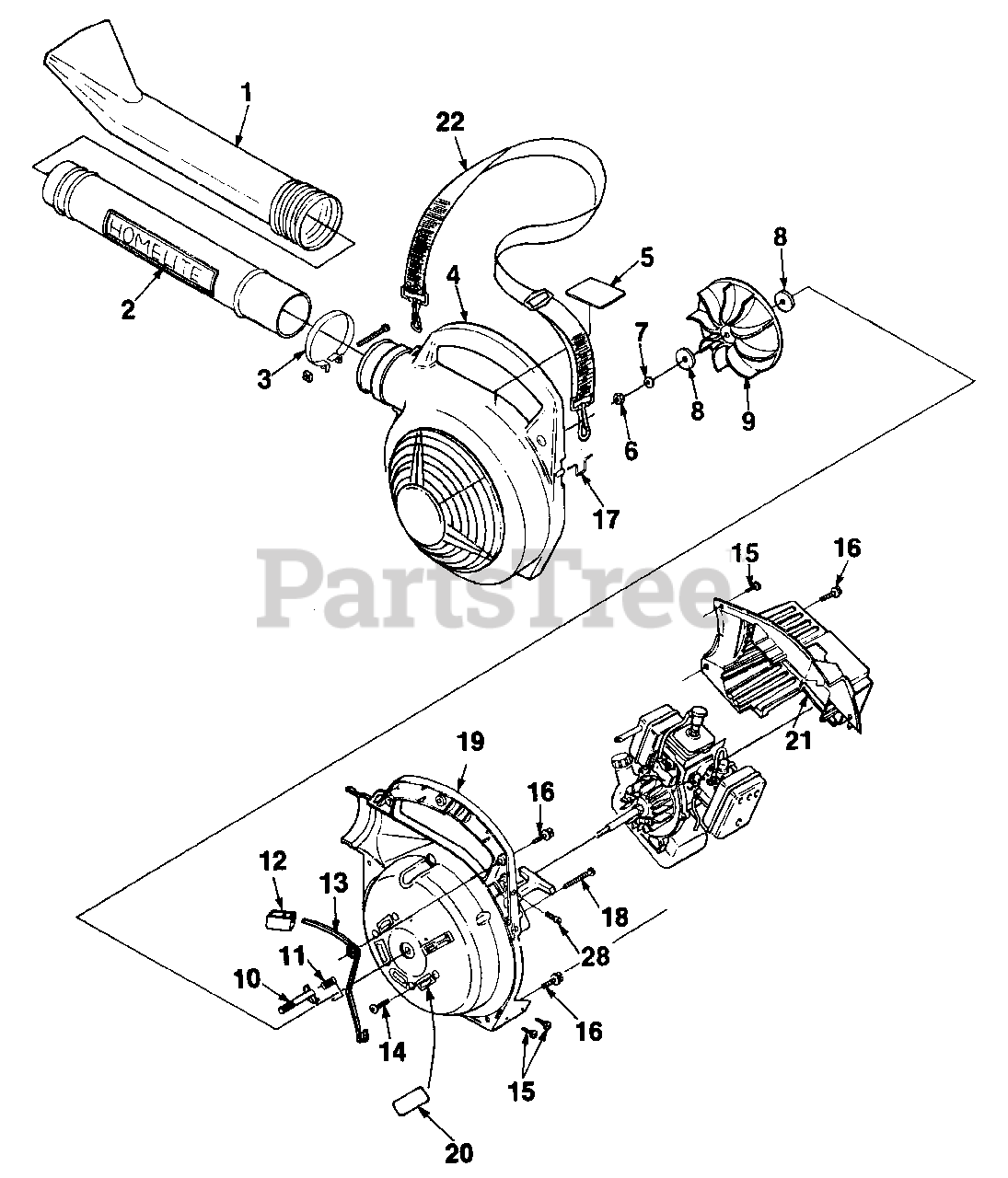

Blower Parts Diagram

  • Title

1

Homelite 00373

NOZZLE - Sweeper
(Superseded to 580556001)

$

$

Not available

2

TUBE w/DECAL

$

$

Not available

3

Homelite 00433

CLAMP
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 01039

HOUSING - Volute (outer)
(Superseded to 984918001)

$

$

Not available

5

Homelite 00375

DECAL - Warning

$

$

Currently unavailable

6

Homelite 81117

NUT - Hex 5/16-24

$2.49

$

In Stock, only 1 left!

0

7

Homelite 70788

WASHER - Belleville #10
(Superseded to UP06837)

$

$

Not available

8

Homelite 00380

WASHER - Flat

$

$

Not available

9

Homelite 00318

FAN - Blower
(Superseded to 000998274)

$

$

Not available

10

Homelite 00368

LATCH - Throttle
(Superseded to 00368A)

$

$

Not available

11

Homelite 00370

SPRING - Throttle latch
(Superseded to 638075001)

$

$

Not available

12

Homelite 00367

TRIGGER - Throttle

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 00369

LEVER - Throttle
(Superseded to 00369A)

$

$

Not available

14

Homelite 82508

SCREW - Thd Forming

$

$

Currently unavailable

15

Homelite 82348

SCREW - Tapping pan #8 x 1/2
(Superseded to 82348A)

$

$

Not available

16

Homelite 70771

SCREW - Thd forming #10 x 3/4
(Superseded to UP03900)

$1.99

$

In Stock, Qty 6

0

17

Homelite 00398

LOOP - Wire

$

$

Not available

18

Homelite JA416903

SCREW - Hex hd. #10 x 1 5/8

$2.49

$

Usually ships in 3-7 days

0

19

Homelite A00814A

HOUSING - Volute (inner)

Note: (Includes #20)

$

$

Currently unavailable

20

Homelite A00813A

KIT - Sealing
(Superseded to UP03822A)

$

$

Not available

21

Homelite 00321

SHROUD
(Superseded to UP06522A)

$

$

Not available

22

Homelite DA98138A

STRAP - Shoulder (Acc.)

$

$

Currently unavailable

28

UNKNOWN

$

$

Not available
