HB 100 (UT-08011-G) - Homelite Blower Starter Parts Diagram

Blower

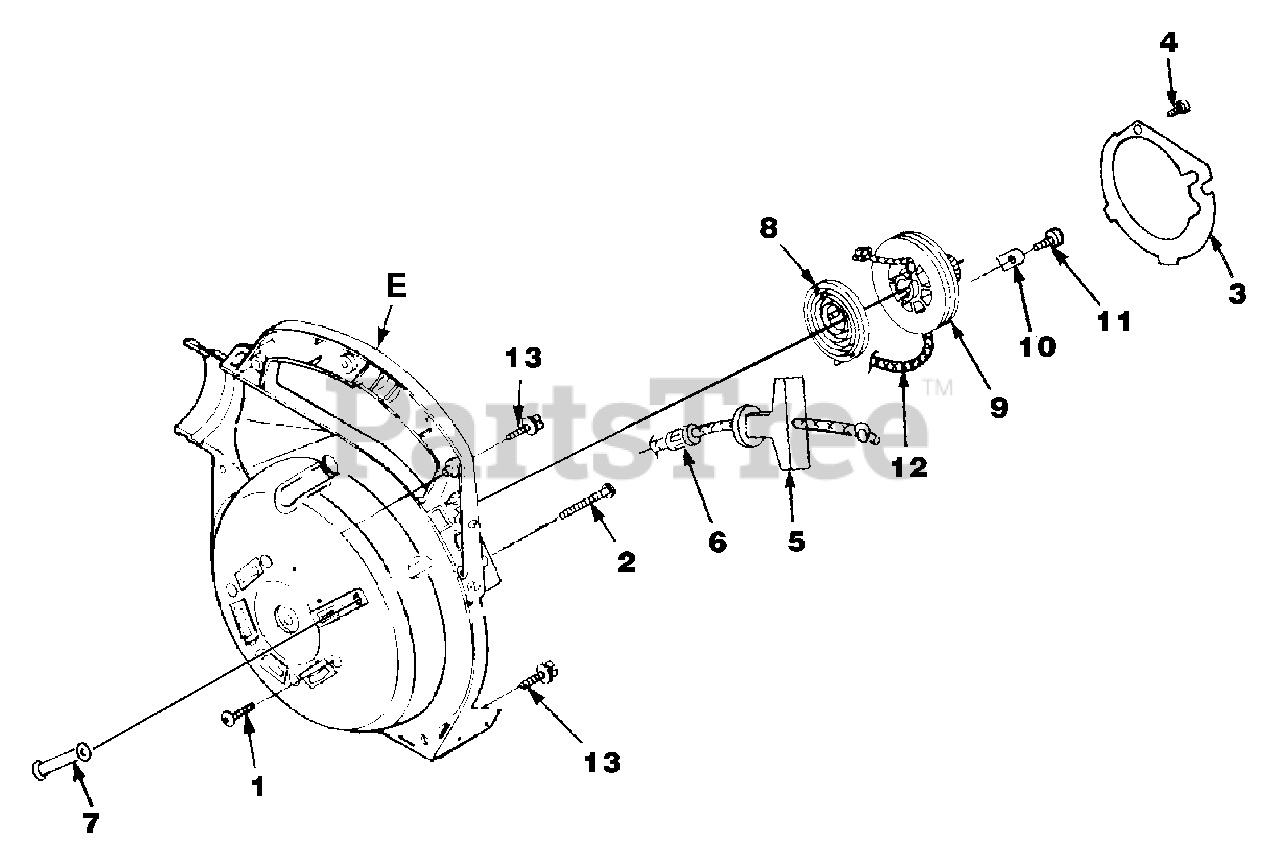

Starter Parts Diagram

  • Title

1

Homelite UP03406

SCREW-Thread Form. (10-24 X 3/4")
(Superseded to 82538)

Note: Torque Specs 55-60 In/Lbs, 6.2-6.8 Nm.

$1.99

$

Usually ships in 3-7 days

0

2

Homelite UP03869

SCREW-Thread Form. (#10 X 1 5/8")
(Superseded to JA416903)

Note: Torque Specs 20-30 In/Lbs, 2.3-3.4 Nm.

$2.49

$

Usually ships in 3-7 days

0

E

Homelite UP04551

VOLUTE HOUSING & STARTER
(Superseded to UP04551A)

Note: Includes items 3-12

$

$

Not available

3

Homelite UP04279

PLATE-Rotor
(Superseded to 00374)

$3.49

$

Usually ships in 3-7 days

0

4

Homelite UP03894

SCREW-Thread Form. (#6 X 1 3/8")
(Superseded to 82528)

Note: Torque Specs 8-12 In/Lbs, .9-1.4 Nm.

$2.49

$

Usually ships in 3-7 days

0

5

Homelite UP04276

GRIP-Starter
(Superseded to PS00179)

$

$

Not available

6

Homelite UP03910

BUSHING-Starter
(Superseded to 969811A)

$

$

Not available

7

Homelite UP03809

BUSHING-Starter Rope
(Superseded to 00364B)

$

$

Not available

8

Homelite UP03917

SPRING & CONTAINER
(Superseded to A98773A)

$5.49

$

Usually ships in 3-7 days

0

9

Homelite UP04349

PULLEY-Starter
(Superseded to 98770A)

$3.99

$

Usually ships in 3-7 days

0

10

Homelite UP03919

BRACKET-Retaining
(Superseded to 98791)

$

$

Not available

11

Homelite UP03897

SCREW-Thread Form. (#10 X 1/2")
(Superseded to 82541)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$1.99

$

In Stock, only 3 left!

0

12

Homelite UP03911

ROPE-Starter
(Superseded to 9789901)

$1.99

$

In Stock, only 3 left!

0

13

Homelite UP03900

SCREW-Thread Form. (10-24 X 3/4")
(Superseded to 82563)

Note: Torque Specs 20-30 In/Lbs, 2.3-3.4 Nm.

$1.99

$

In Stock, Qty 6

0
