HB 100 (UT-08011-A) - Homelite Blower Starter Parts Diagram

Blower

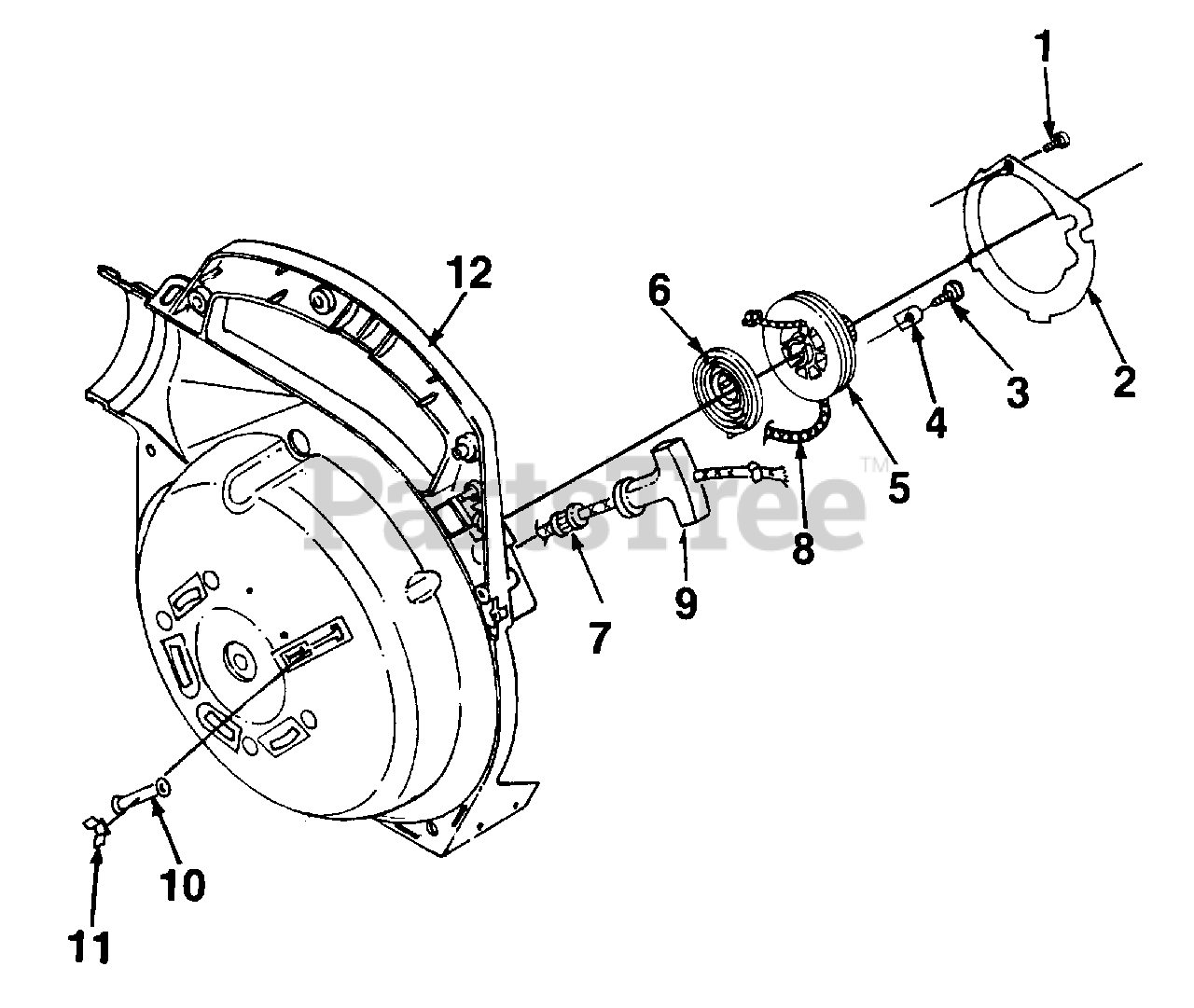

Starter Parts Diagram

  • Title
1

Homelite 82528

SCREW - Thread Forming (#6-19 x 3/4 lg.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 00374

PLATE - Rotor

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 82511

SCREW - Thd. forming 10 x 1/2

$

$

Currently unavailable

4

Homelite 98791

BRACKET - Retaining

$

$

Not available

5

Homelite 98770

PULLEY - Starter
(Superseded to 98770A)

$3.99

$

Usually ships in 3-7 days

0

6

Homelite A98773

SPRING & CONTAINER

$

$

Currently unavailable

7

Homelite A97796

BUSHING - Starter
(Superseded to UP03910)

$

$

Not available

8

Homelite 97899

ROPE - Starter 46"
(Superseded to 9789901)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 70211

GRIP - Starter rope
(Superseded to UP03832)

$

$

Not available

10

Homelite 00364

BUSHING - Starter rope
(Superseded to 00364B)

$

$

Not available

11

Homelite 00379

CLIP - Retainer

$

$

Currently unavailable

12

Homelite A00814A

HOUSING - Volute (inner)

$

$

Currently unavailable
