HA4120 H48A (MZCJ) - Honda Lawn Tractor, Made in USA (SN: MZCJ-6000001 - MZCJ-9999999) TRANSMISSION Parts Diagram

Lawn Tractor, Made in USA

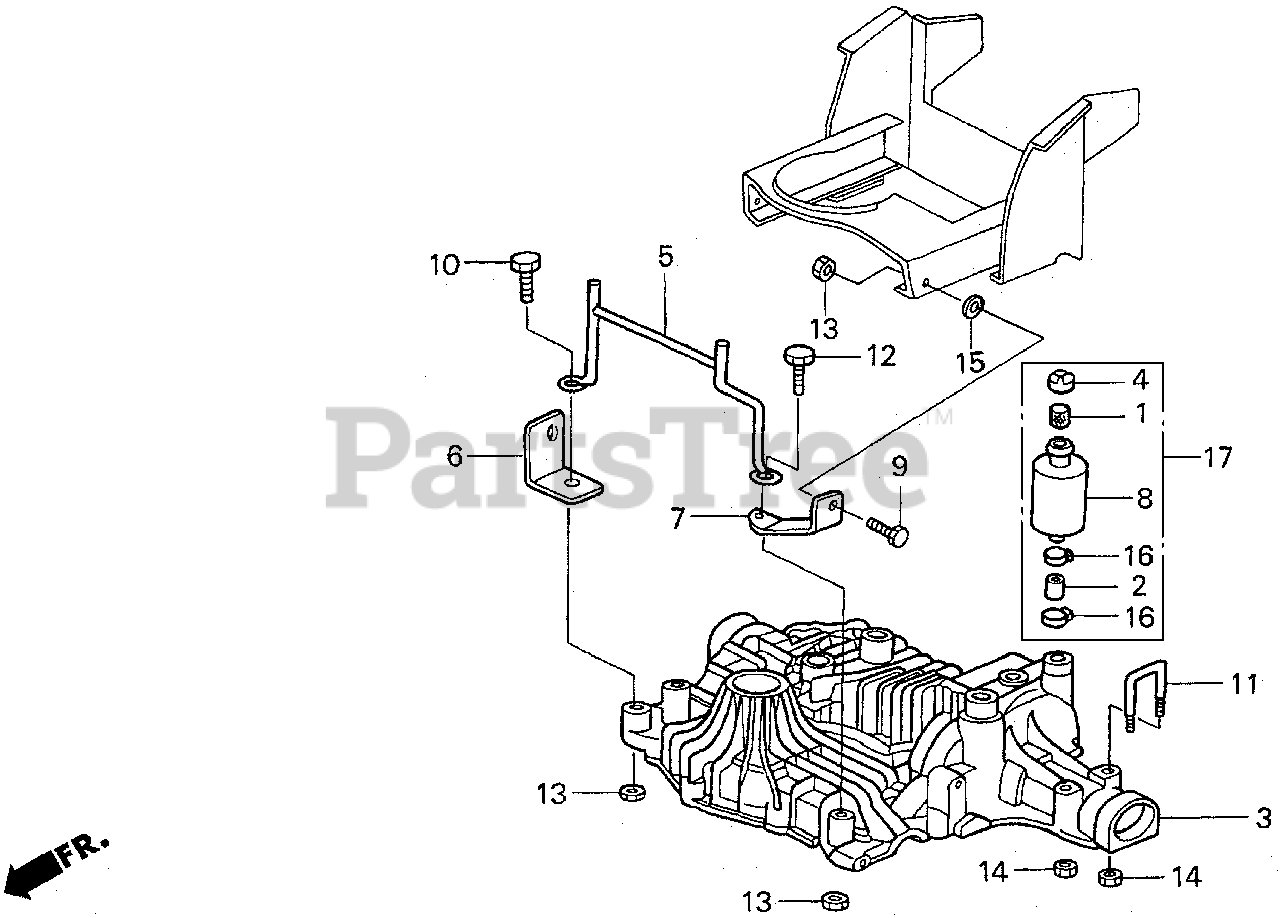

TRANSMISSION Parts Diagram

  • Title

1

Honda 15421-V09-A01

FILTER, OIL
(Superseded to 21010-V09-A01)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 21010-V09-A01

TUBE, OIL

$25.99

$

Usually ships in 3-6 days

0

3

Honda 20001-V09-A01

TRANSMISSION ASSY.

Note: Use up to Frame SN 6101760.

$

$

Currently unavailable

3

Honda 20001-V09-A02

TRANSMISSION ASSY.

Note: Use from Frame SN 6101761.

$

$

Currently unavailable

4

Honda 21010-V09-A01

CAP ASSY., OIL

$25.99

$

Usually ships in 3-6 days

0

5

Honda 22453-V09-A01

GUIDE, BELT

$34.99

$

Usually ships in 3-6 days

0

6

Honda 50133-V09-A01

BRACKET A, TRANSMISSION

$9.99

$

Usually ships in 3-6 days

0

7

Honda 50134-V09-A01

BRACKET B, TRANSMISSION

$

$

Not available

8

Honda 56851-V09-A01

TANK, OIL

$25.99

$

Usually ships in 3-6 days

0

9

Honda 90130-V09-A01

BOLT, HEX. (8X25)

Note: Use up to Frame SN 6101760.

$0.99

$

Usually ships in 3-6 days

0

9

Honda 90137-V09-A01

BOLT, FLANGE (8X25)

Note: Use from Frame SN 6101761.

$

$

Currently unavailable

10

Honda 90131-V09-A01

BOLT, HEX. (8X65)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90132-V09-A01

BOLT, U-TYPE

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90133-V09-A01

BOLT, HEX. (8X70)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90301-V09-A01

NUT, FLANGE (8MM)

$1.99

$

In Stock, only 1 left!

0

14

Honda 90304-V09-A01

NUT B, LOCK (8MM)

$

$

Not available

15

Honda 90516-V09-A01

WASHER, TRANSMISSION MOUNTING

$0.99

$

Usually ships in 3-6 days

0

16

Honda 91458-V09-A01

CLIP, TRANSMISSION HOSE
(Superseded to 21010-V09-A01)

$25.99

$

Usually ships in 3-6 days

0

17

Honda 56850-V09-A01

TANK ASSY., OIL

$

$

Currently unavailable
