HA4120 H48A (MZCJ) - Honda Lawn Tractor, Made in USA (SN: MZCJ-6000001 - MZCJ-9999999) STEERING WHEEL Parts Diagram

Lawn Tractor, Made in USA

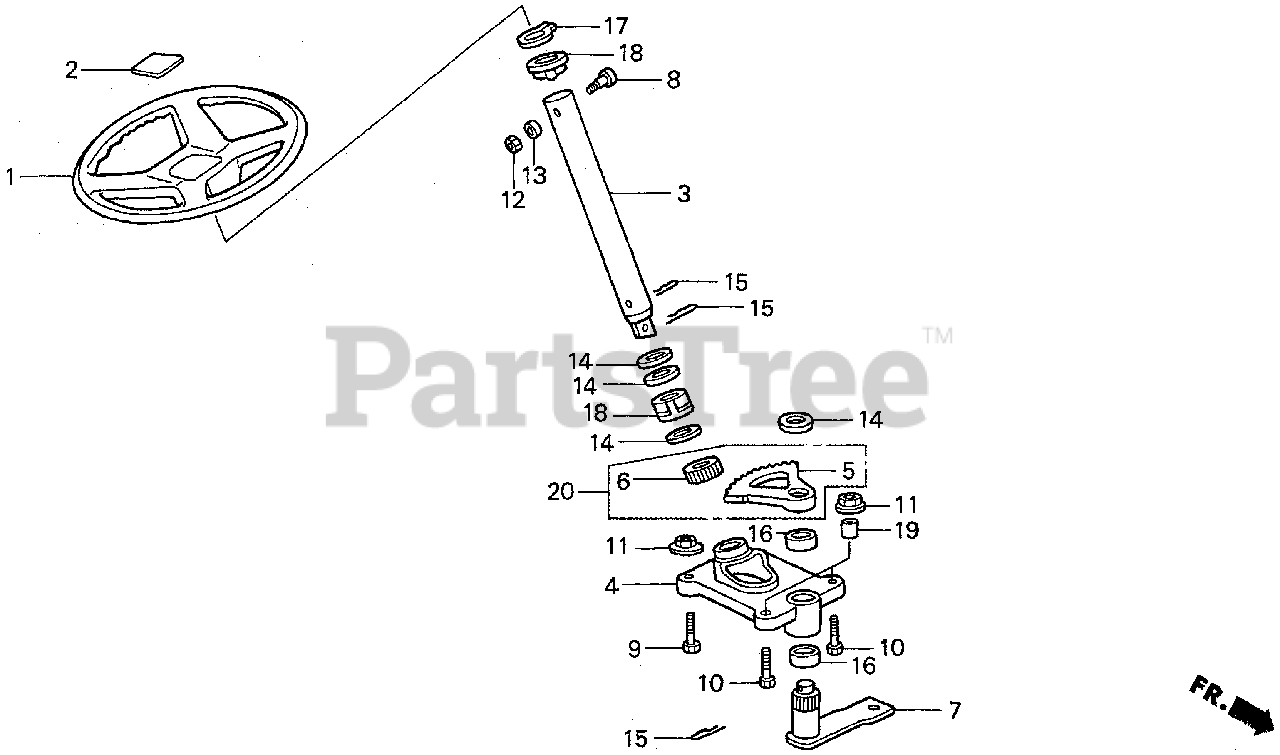

STEERING WHEEL Parts Diagram

  • Title

1

Honda 53110-V09-A01

WHEEL, STEERING

$65.99

$

Usually ships in 3-6 days

0

2

Honda 53122-V09-A01

CAP, STEERING

$8.99

$

Usually ships in 3-6 days

0

3

Honda 53311-V09-A01

SHAFT, STEERING

$79.99

$

Usually ships in 3-6 days

0

4

Honda 53407-V09-A01

CASE, STEERING GEAR

$39.99

$

Usually ships in 3-6 days

0

5

Honda 53010-V09-A01

STEERING GEAR SET

$

$

Not available

6

Honda 53010-V09-A01

STEERING GEAR SET

$

$

Not available

7

Honda 53461-V09-A01

ARM, PITMAN

$101.99

$

Usually ships in 3-6 days

0

8

Honda 90107-772-000

BOLT, HUB STEERING

Note: Use up to Frame SN 6101760.

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90166-V09-A01

BOLT, STEERING HUB

Note: Use from Frame SN 6101761.

$7.99

$

Usually ships in 3-6 days

0

9

Honda 90115-V09-A01

BOLT, HEX. (8X25)

$0.99

$

Usually ships in 3-6 days

0

10

Honda 90116-V09-A01

BOLT, HEX. (8X50)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90301-V09-A01

NUT, FLANGE (8MM)

$1.99

$

In Stock, only 1 left!

0

12

Honda 90337-V09-A01

NUT, SELF-LOCK (#10-24)

Note: Use from Frame SN 6101761.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90343-751-800

NUT, SELF-LOCK (5MM)

Note: Use up to Frame SN 6101760.

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90504-V09-A01

WASHER (1/2")

$0.99

$

Usually ships in 3-6 days

0

14

Honda 90505-V09-A01

WASHER A, WHEEL

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90754-V09-A01

PIN, COTTER (4X32)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 91051-V09-A01

BEARING, SECTOR SHAFT

$4.49

$

Usually ships in 3-6 days

0

17

Honda 91451-V09-A01

RING, WHEEL SNAP

$

$

Not available

18

Honda 91565-V09-A01

BUSH, STEERING SHAFT

$

$

Not available

19

Honda 91567-V09-A01

COLLAR, STEERING

$1.49

$

Usually ships in 3-6 days

0

20

Honda 53010-V09-A01

STEERING GEAR SET

$

$

Not available
