HA4120 H48A (MZCJ) - Honda Lawn Tractor, Made in USA (SN: MZCJ-6000001 - MZCJ-9999999) FRONT AXLE Parts Diagram

Lawn Tractor, Made in USA

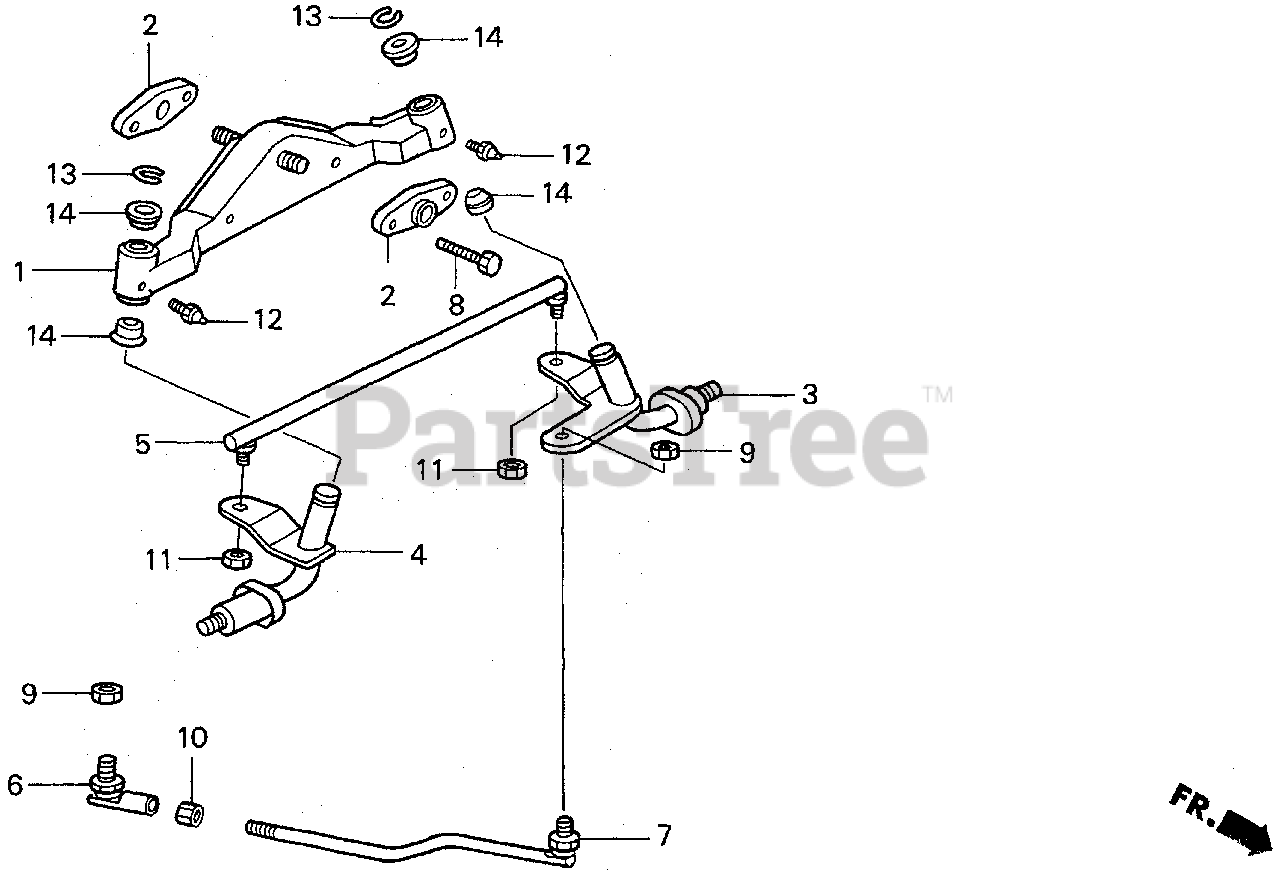

FRONT AXLE Parts Diagram

  • Title

1

Honda 44110-V09-A01

AXLE, FR.

$

$

Currently unavailable

2

Honda 44112-V09-A01

PIVOT, FR. AXLE

$26.99

$

Usually ships in 3-6 days

0

3

Honda 51210-V09-A01

KNUCKLE, L.

$71.99

$

Usually ships in 3-6 days

0

4

Honda 51220-V09-A01

KNUCKLE, R.

$

$

Not available

5

Honda 53521-V09-A02

TIE ROD

$

$

Not available

6

Honda 53540-V09-A01

JOINT, BALL

$55.99

$

Usually ships in 3-6 days

0

7

Honda 53621-V09-A02

TIE ROD B

$121.99

$

Usually ships in 3-6 days

0

8

Honda 90114-V09-A01

SCREW, CAP FLANGE

$1.99

$

Usually ships in 3-6 days

0

9

Honda 90312-V09-A01

NUT, LOCK (7/16")

$4.49

$

In Stock, only 1 left!

0

10

Honda 90313-V09-A01

NUT, HEX. (1/2")

$0.99

$

In Stock, Qty 7

0

11

Honda 90314-V09-A01

NUT, LOCK (3/8")

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90951-V09-A01

NIPPLE, STEERING GREASE

$4.49

$

Usually ships in 3-6 days

0

13

Honda 91451-V09-A01

RING, WHEEL SNAP

$

$

Not available

14

Honda 91563-V09-A01

BUSH, STEERING

$

$

Not available
