HA4120 H48A (MZCJ) - Honda Lawn Tractor, Made in USA (SN: MZCJ-6000001 - MZCJ-9999999) CYLINDER HEAD Parts Diagram

Lawn Tractor, Made in USA

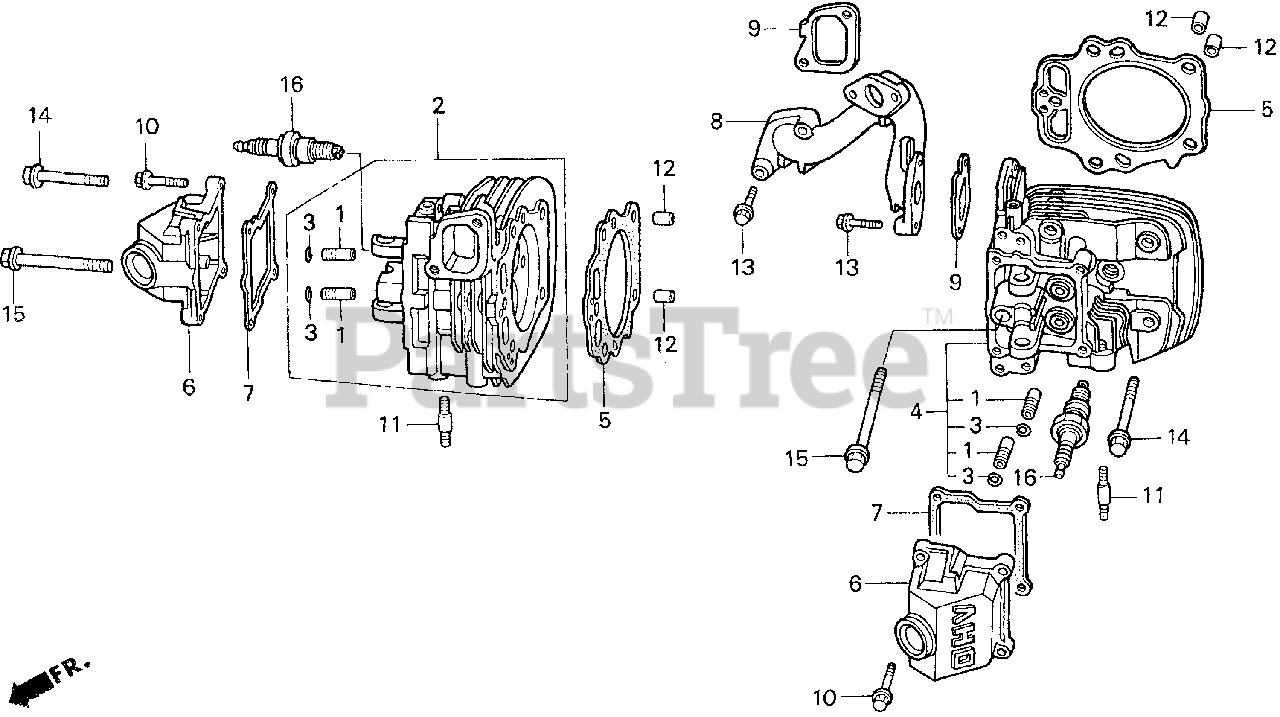

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OS)

$

$

Not available

2

Honda 12210-ZJ4-000

CYLINDER HEAD

$

$

Not available

3

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

4

Honda 12220-ZJ4-000

CYLINDER HEAD

$410.99

$

Usually ships in 3-6 days

0

5

Honda 12251-ZJ1-003

GASKET, CYLINDER HEAD

$20.99

$

In Stock, only 1 left!

0

6

Honda 12311-ZJ1-000

COVER, HEAD

$

$

Not available

7

Honda 12391-ZJ1-000

GASKET, HEAD COVER

$13.99

$

In Stock, only 4 left!

0

8

Honda 17101-ZJ4-000

MANIFOLD, IN.

$

$

Not available

9

Honda 17151-ZJ1-003

GASKET, IN. MANIFOLD

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90121-ZJ1-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25) (CT200)
(Superseded to 90121-952-000)

$2.99

$

In Stock, Qty 20+

0

11

Honda 92900-08025-0B

BOLT, STUD (8X25)

$2.99

$

In Stock, Qty 6

0

12

Honda 94301-12200

PIN A, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06032-00

BOLT, FLANGE (6X32)

$2.49

$

In Stock, Qty 5

0

14

Honda 95701-10075-00

BOLT, FLANGE (10X75)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 95701-10130-00

BOLT, FLANGE (10X130)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0
