HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) WIRE HARNESS Parts Diagram

Lawn Tractor, Made in USA

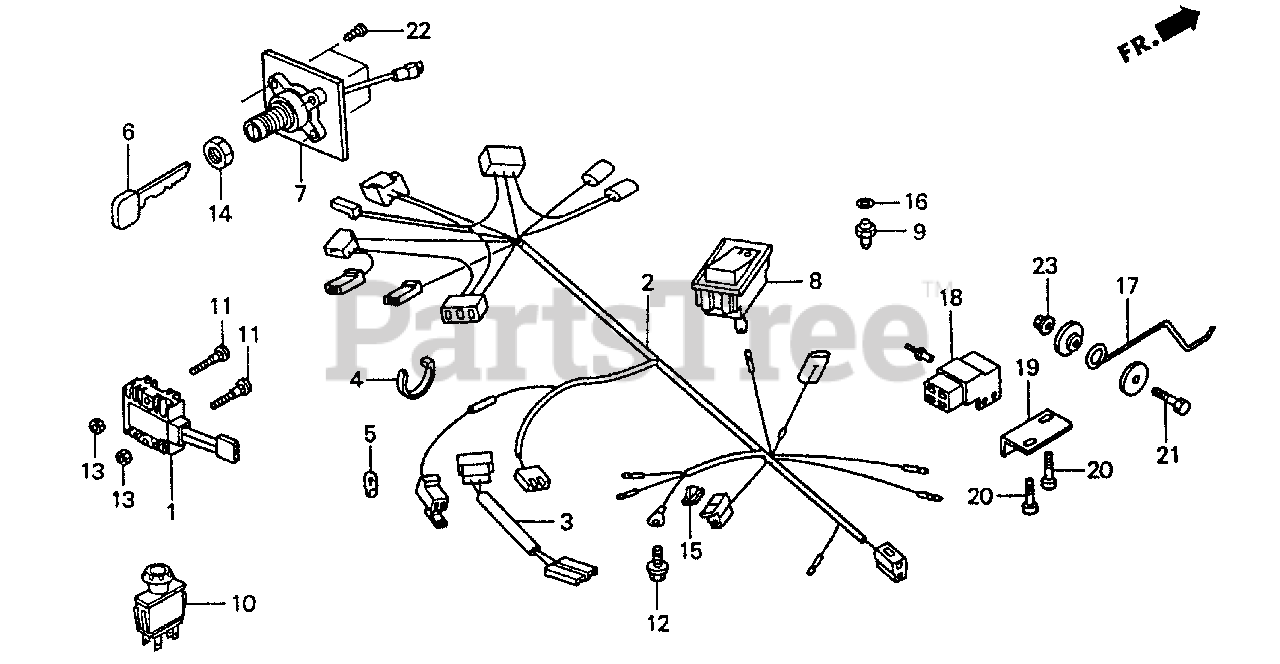

WIRE HARNESS Parts Diagram

  • Title

1

Honda 31620-ZG5-003

SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (20A)
(Superseded to 31620-ZG5-033)

$197.99

$

In Stock, only 3 left!

0

1

Honda 31620-ZG5-013

SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (20A)
(Superseded to 31620-ZG5-033)

$197.99

$

In Stock, only 3 left!

0

2

Honda 32100-V09-A01

WIRE HARNESS ASSY., MAIN

Note: Use up to Frame SN 6001209.

$167.99

$

Usually ships in 3-6 days

0

2

Honda 32100-V09-A02

WIRE HARNESS ASSY., MAIN

Note: Use from Frame SN 6001210.

$234.99

$

Usually ships in 3-6 days

0

3

Honda 32105-V09-A01

SUB-WIRE HARNESS ASSY.

$14.99

$

Usually ships in 3-6 days

0

4

Honda 32901-V09-A01

TIE, CABLE

$1.99

$

Usually ships in 3-6 days

0

5

Honda 34901-V09-A01

BULB

$4.49

$

Usually ships in 3-6 days

0

6

Honda 35110-772-003

SEE PART DETAILS - SUP; KEY, COMBINATION SWITCH
(Superseded to 35110-772-013)

$4.99

$

In Stock, only 1 left!

0

6

Honda 35110-772-013

SEE PART DETAILS - PRI; KEY, COMBINATION SWITCH

$4.99

$

In Stock, only 1 left!

0

7

Honda 35170-V09-A01

SWITCH ASSY., MAIN

Note: Use up to Frame SN 6001209.

$

$

Not available

7

Honda 35170-V09-A02

SWITCH ASSY., MAIN

Note: Use from Frame SN 6001210.

$

$

Not available

8

Honda 35200-V09-A01

SWITCH ASSY., LIGHTING

$18.99

$

Usually ships in 3-6 days

0

9

Honda 35470-V09-A01

SWITCH ASSY., NEUTRAL

$35.99

$

Usually ships in 3-6 days

0

10

Honda 35510-V09-A01

SWITCH ASSY., P.T.O. CLUTCH

Note: Use up to Frame SN 6001209.

$

$

Not available

10

Honda 35510-V09-A02

SWITCH ASSY., P.T.O. CLUTCH (AM12793)

Note: Use from Frame SN 6001210.

$

$

Not available

11

Honda 90124-V09-A01

BOLT, HEX. (6X25)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

13

Honda 90316-V09-A01

NUT, FLANGE (8MM)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 90317-V09-A01

NUT, KNURLED

$4.49

$

In Stock, only 1 left!

0

15

Honda 90653-V09-A01

CLIP, WIRE

$7.49

$

Usually ships in 3-6 days

0

16

Honda 91351-V09-A01

O-RING, WIRING

$1.99

$

Usually ships in 3-6 days

0

17

Honda 35551-V09-A01

LEVER, SWITCH (M133666)

Note: Use from Frame SN 6001210.

$

$

Currently unavailable

18

Honda 35575-V09-A01

SWITCH, BRAKE LIGHT (AM108483)

Note: Use from Frame SN 6001210.

$17.99

$

Usually ships in 3-6 days

0

19

Honda 38255-V09-A01

BRACKET, REVERSE (MT132262)

Note: Use from Frame SN 6001210.

$61.99

$

Usually ships in 3-6 days

0

20

Honda 90168-V09-A01

SCREW, HEX. (5/16-18)

Note: Use from Frame SN 6001210.

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90169-V09-A01

BOLT (8X35) (03M7187)

Note: Use from Frame SN 6001210.

$0.99

$

Usually ships in 3-6 days

0

22

Honda 90170-V09-A01

SCREW, TAPPING (#8-32)

Note: Use from Frame SN 6001210.

$5.49

$

Usually ships in 3-6 days

0

23

Honda 90304-V09-D01

NUT D, LOCK (8MM)

Note: Use from Frame SN 6001210.

$3.49

$

Usually ships in 3-6 days

0
