HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) LABELS (FRAME) Parts Diagram

Lawn Tractor, Made in USA

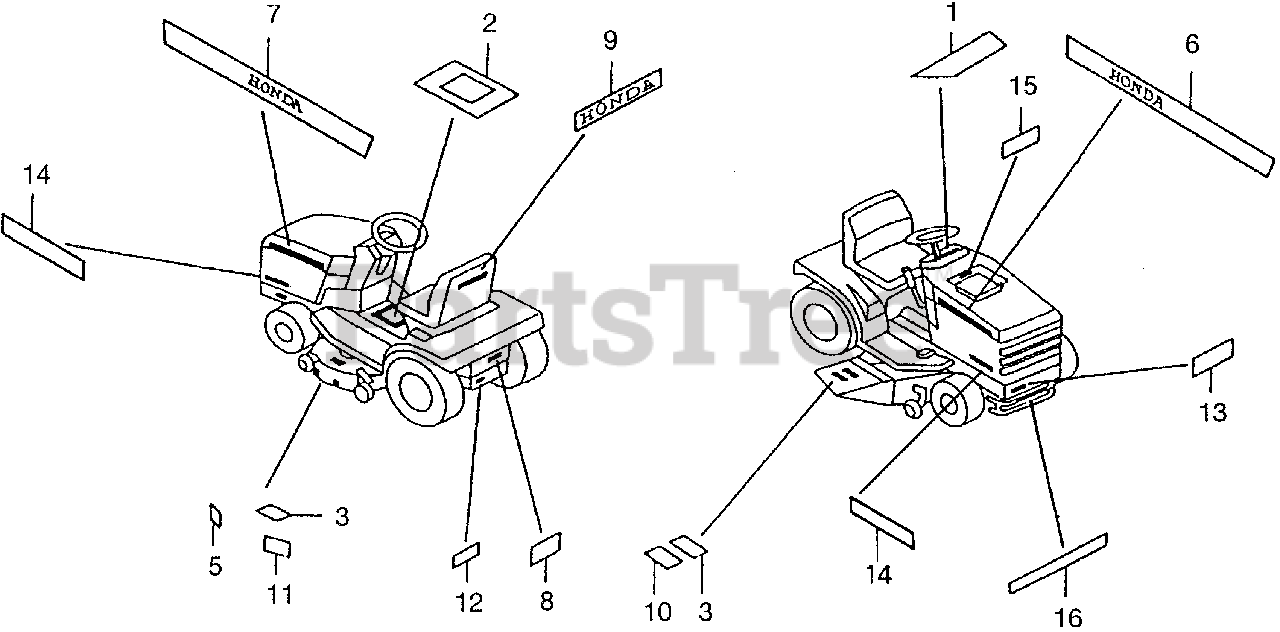

LABELS (FRAME) Parts Diagram

  • Title

1

Honda 87105-V09-A01

LABEL, DASH

$16.99

$

Usually ships in 3-6 days

0

2

Honda 87110-V09-A01

SEE PART DETAILS - SUP; LABEL, OPERATION

$

$

Currently unavailable

3

Honda 87114-772-010

SEE PART DETAILS - PRI; LABEL, WARNING (A)

$31.99

$

Usually ships in 3-6 days

0

5

Honda 87129-758-L00

MARK, INCH SIZE (38)

$

$

Not available

6

Honda 87145-V09-A01

MARK, R. STRIPE

$74.99

$

Usually ships in 3-6 days

0

7

Honda 87146-V09-A01

MARK, L. STRIPE

$66.99

$

Usually ships in 3-6 days

0

8

Honda 87149-V09-A01

LABEL, MANUAL

$8.99

$

Usually ships in 3-6 days

0

9

Honda 87158-758-000

MARK, SEAT EMBLEM

$23.99

$

Usually ships in 3-6 days

0

10

06871-V09-A11

SEE PART DETAILS - PRI; MARK KIT

$

$

Not available

10

Honda 87198-772-010

SEE PART DETAILS - PRI; MARK, DANGER (A)

$57.99

$

Usually ships in 3-6 days

0

11

Honda 87210-V09-A01

MARK, HEIGHT OPERATION

$17.99

$

Usually ships in 3-6 days

0

12

Honda 87504-V09-A02

MARK, MANUFACTURER

$

$

Currently unavailable

13

06871-V09-A11

SEE PART DETAILS - PRI; MARK KIT

$

$

Not available

13

Honda 87539-VE2-000

LABEL, HEAT WARNING

$1.99

$

In Stock, only 4 left!

0

14

Honda 87602-V09-A01

MARK, SALES POINT

$6.99

$

Usually ships in 3-6 days

0

15

Honda 87243-V09-A01

LABEL, SCREEN

$4.99

$

Usually ships in 3-6 days

0

16

Honda 87522-V09-A01

MARK, FIRE CAUTION
(Superseded to 21010-V09-A01)

$24.99

$

Usually ships in 3-6 days

0
