HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) HOOD Parts Diagram

Lawn Tractor, Made in USA

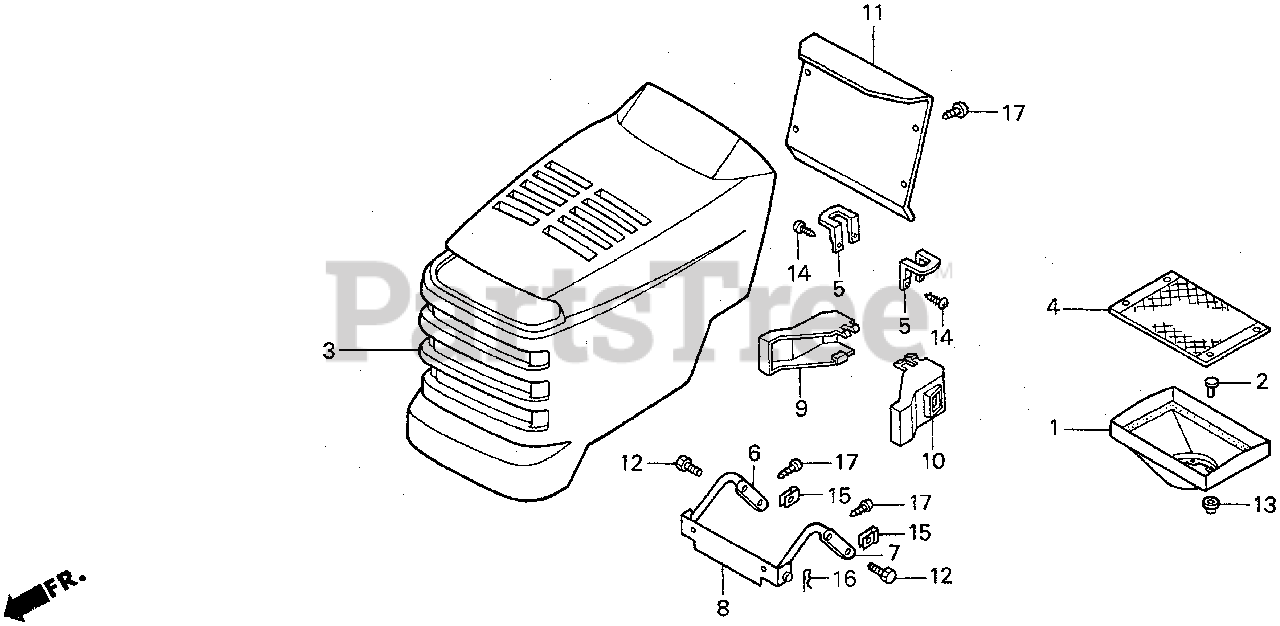

HOOD Parts Diagram

  • Title

1

Honda 18515-V09-A01

GUIDE, AIR

$52.99

$

Usually ships in 3-6 days

0

2

Honda 18519-771-000

RIVET, SNAP

$

$

Not available

3

Honda 60110-V09-A01

HOOD

$

$

Not available

4

Honda 60156-V09-A01

SCREEN, DUST

$14.99

$

Usually ships in 3-6 days

0

5

Honda 60172-V09-A01

STRIKER, HOOD

$5.49

$

Usually ships in 3-6 days

0

6

Honda 60521-V09-A01

HINGE, R. HOOD

$11.99

$

Usually ships in 3-6 days

0

7

Honda 60522-V09-A01

HINGE, L. HOOD

$20.99

$

Usually ships in 3-6 days

0

8

Honda 60523-V09-A01

HINGE, HOOD (UPPER)

$22.99

$

Usually ships in 3-6 days

0

9

Honda 63251-V09-A01

PANEL, R. SIDE

$38.99

$

Usually ships in 3-6 days

0

10

Honda 63261-V09-A01

PANEL, L. SIDE

$33.99

$

Usually ships in 3-6 days

0

11

Honda 63541-V09-A01

SEPARATOR, FR.

$35.99

$

Usually ships in 3-6 days

0

12

Honda 90106-V09-A01

BOLT, HEX. (8X20)

$

$

Not available

13

Honda 90127-KF0-770

COLLAR (6X4)

$4.99

$

In Stock, only 1 left!

0

14

Honda 93901-45220

SCREW, TAPPING (5X12)

$

$

Not available

15

Honda 90303-V09-A01

NUT, SPECIAL (8MM)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90752-V09-A01

PIN, BETA

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93913-25420

SCREW, TAPPING (5X16)

$1.49

$

In Stock, only 2 left!

0
