HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) FUEL PUMP Parts Diagram

Lawn Tractor, Made in USA

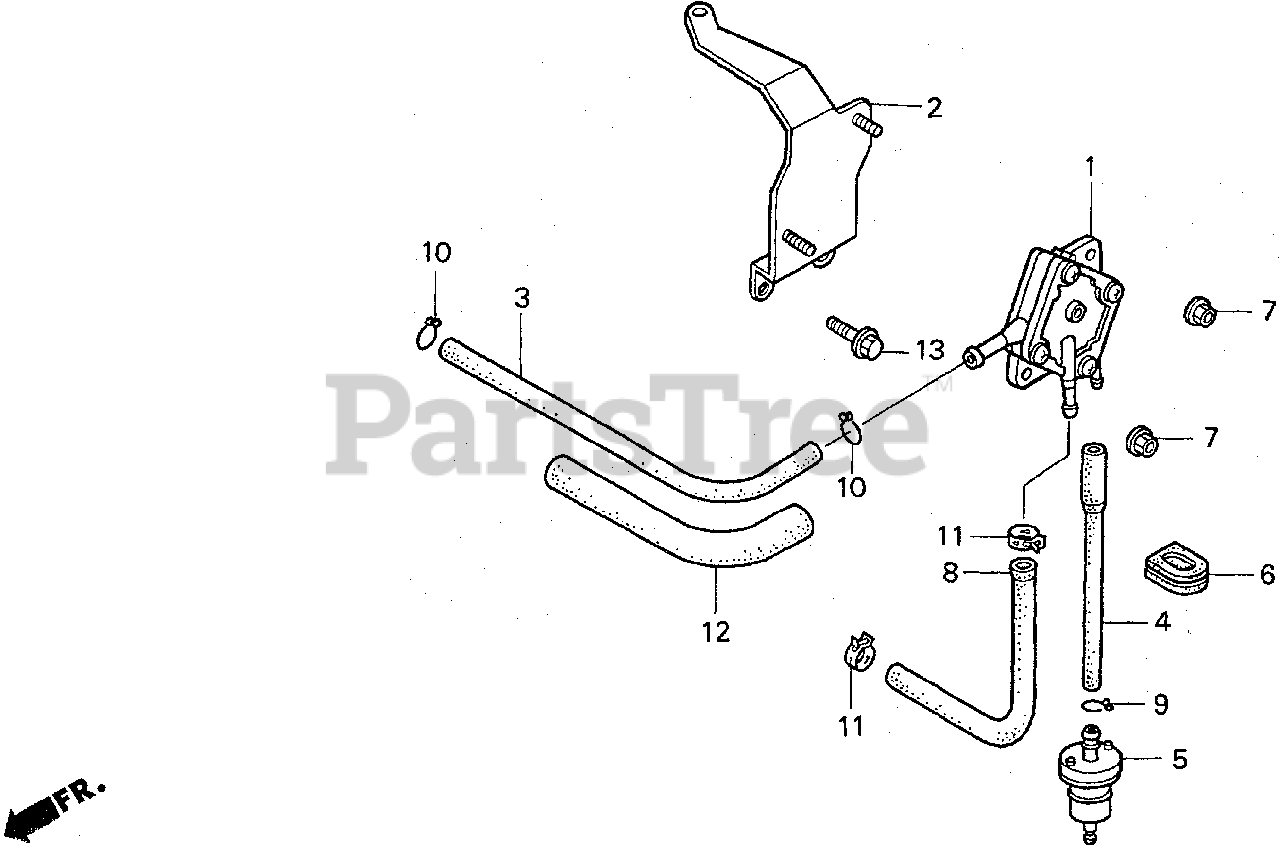

FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-ZJ1-003

PUMP ASSY., FUEL

$117.99

$

Usually ships in 3-6 days

0

2

Honda 16711-ZJ4-010ZB

SEE PART DETAILS - SUP; STAY, FUEL PUMP *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 16711-ZJ4-010ZC

STAY, FUEL PUMP *NH1* (BLACK)

$27.99

$

Usually ships in 3-6 days

0

3

Honda 16851-ZJ4-000

TUBE, FUEL

$

$

Not available

4

Honda 16861-ZJ4-L00

TUBE B, FUEL

$

$

Not available

5

Honda 16910-ZE8-015

SEE PART DETAILS - PRI; FILTER, FUEL

$14.99

$

In Stock, Qty 8

0

6

Honda 19905-ZA8-701

SEE PART DETAILS - PRI; GROMMET, WIRE

$4.99

$

Usually ships in 3-6 days

0

7

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

8

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.5X205)

$70.99

$

In Stock, only 1 left!

0

9

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

10

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 95002-41050-08

CLIP, TUBE (D10.5)

$3.49

$

In Stock, Qty 7

0

12

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X160)

$

$

Currently unavailable

13

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 2 left!

0
