HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) FRAME Parts Diagram

Lawn Tractor, Made in USA

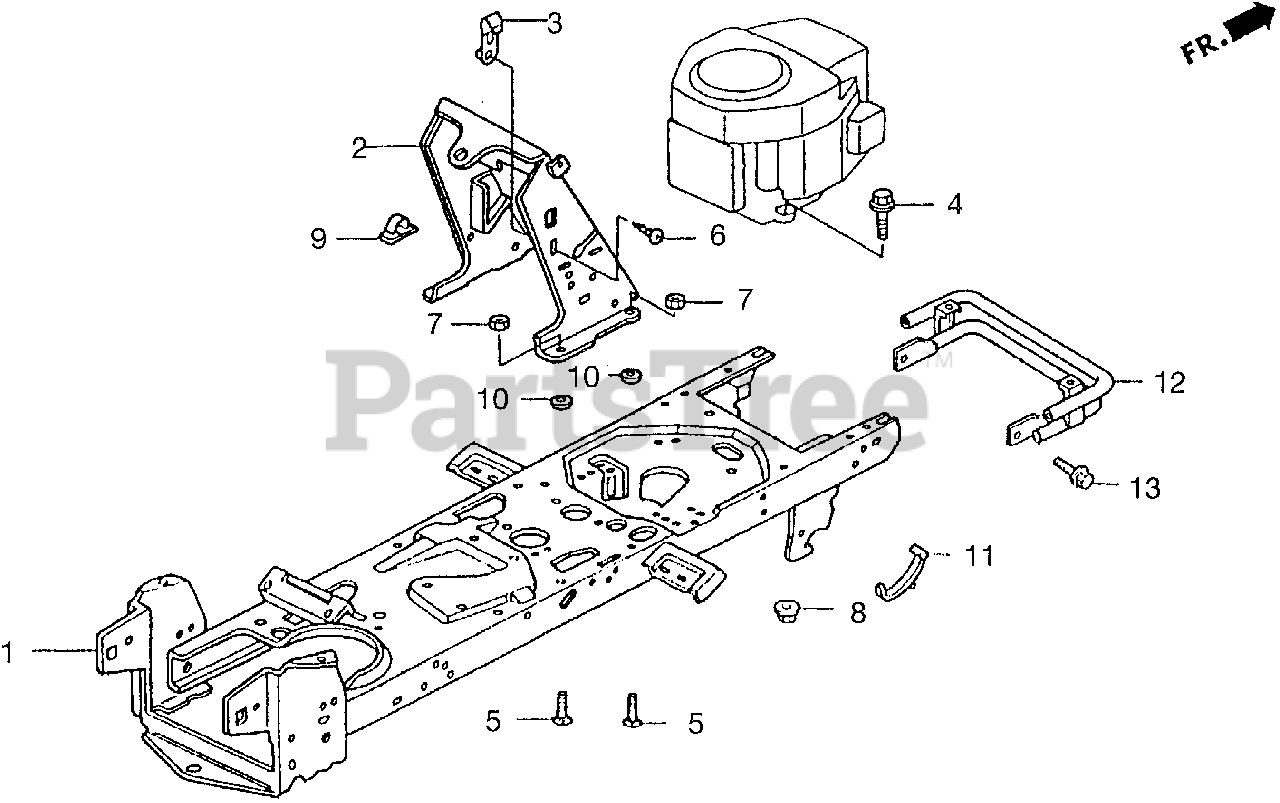

FRAME Parts Diagram

  • Title

1

Honda 50100-V09-A01

FRAME, MAIN

$388.99

$

Usually ships in 3-6 days

0

2

Honda 53210-V09-A01

COLUMN, STEERING

$247.99

$

Usually ships in 3-6 days

0

3

Honda 60191-V09-A01

LOCK, HOOD

$2.49

$

Usually ships in 3-6 days

0

4

Honda 90103-V09-A01

BOLT, FLANGE (8X45)

$1.49

$

Usually ships in 3-6 days

0

5

Honda 90105-V09-A01

BOLT, CARRIAGE (8X16)

$

$

Not available

6

Honda 90107-V09-A01

SCREW B, TAPPING

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90301-V09-A01

NUT, FLANGE (8MM)

$1.99

$

In Stock, only 1 left!

0

8

Honda 90302-V09-A01

NUT A, LOCK (8MM)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90653-V09-A01

CLIP, WIRE

$7.49

$

Usually ships in 3-6 days

0

10

Honda 91151-V09-A01

RETAINER, FRAME

$

$

Not available

11

Honda 32902-V09-A01

TIE, DRAIN HOSE

$1.99

$

Usually ships in 3-6 days

0

12

Honda 51120-V09-A01

GUARD, FR.

$

$

Currently unavailable

13

Honda 90102-V09-A01

BOLT, FLANGE (8X16) (19M7867)

$

$

Currently unavailable
