HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) FAN COVER Parts Diagram

Lawn Tractor, Made in USA

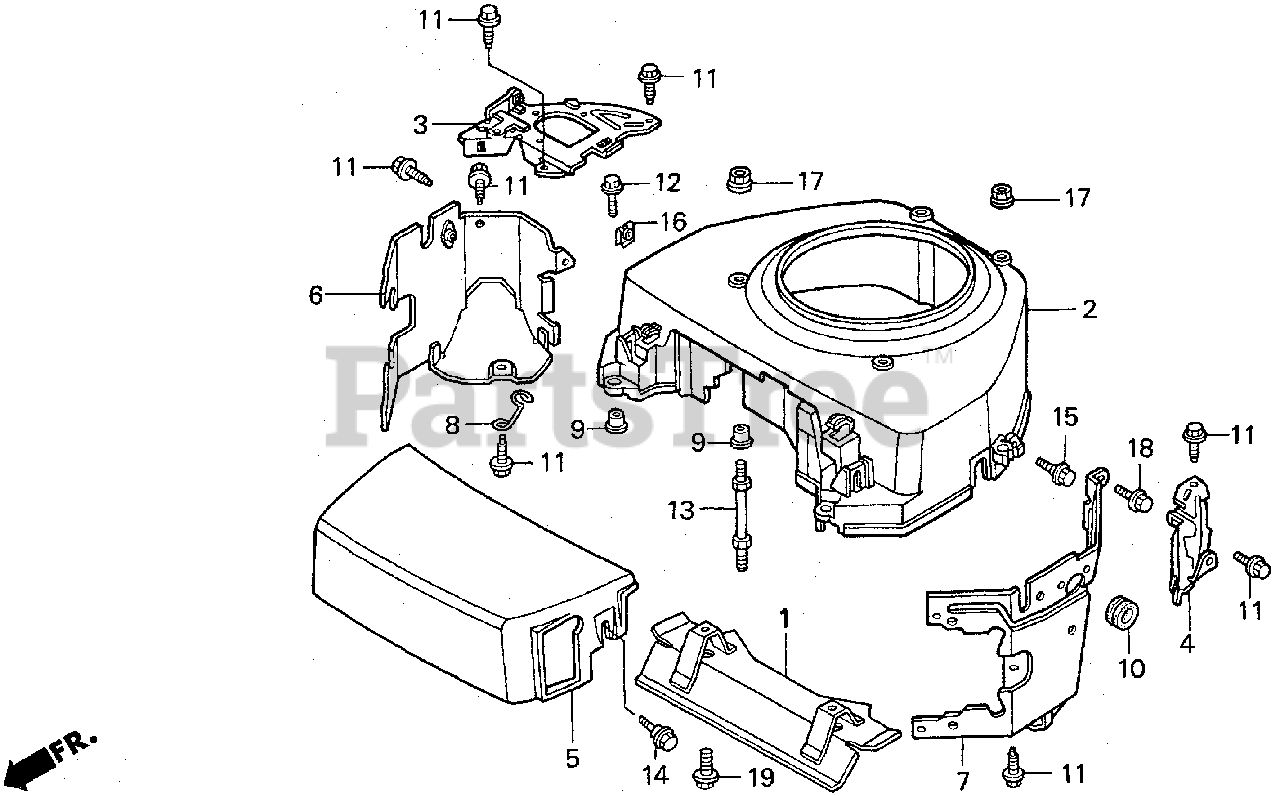

FAN COVER Parts Diagram

  • Title

1

Honda 18205-ZJ4-000

PROTECTOR, EX. PIPE

$

$

Not available

2

Honda 19611-ZJ1-800ZB

SEE PART DETAILS - SUP; COVER, FAN *R8* (RECOIL STARTER) (BRIGHT RED)

$

$

Currently unavailable

2

Honda 19611-ZJ1-800ZC

COVER, FAN *NH1* (RECOIL STARTER) (BLACK)

$

$

Not available

2

Honda 19611-ZJ1-800ZD

SEE PART DETAILS - PRI; COVER, FAN *R280* (RECOIL STARTER) (POWER RED)

$

$

Not available

3

Honda 19612-ZJ1-000

PLATE, R. SIDE

$

$

Not available

4

Honda 19614-ZJ1-000

PLATE, L. SIDE

$16.99

$

Usually ships in 3-6 days

0

5

Honda 19615-ZJ1-000

SEE PART DETAILS - SUP; HOOD, FAN COVER
(Superseded to 19615-ZJ1-800)

$

$

Not available

6

Honda 19631-ZJ1-000

SHROUD, R.

$

$

Not available

7

Honda 19632-ZJ4-000

SHROUD, L.

$

$

Not available

8

Honda 30588-898-000

CLAMP, IGNITION TUBE

$5.99

$

Usually ships in 3-6 days

0

9

Honda 33713-GC2-000

COLLAR B, TAILLIGHT

$4.99

$

In Stock, Qty 13

0

10

Honda 80115-KS5-000

RUBBER, BRACKET MOUNTING

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

12

Honda 90018-ZE1-000

BOLT, FLANGE (6X23)

$2.49

$

In Stock, only 2 left!

0

13

Honda 90042-ZJ4-L00

BOLT, STUD (6X76)

$

$

Not available

14

Honda 90104-GF6-000

BOLT, FLANGE (6X20)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90113-GE4-000

BOLT, FLANGE (6MM) (BLACK)

$7.49

$

In Stock, Qty 5

0

16

Honda 90320-MM5-000

NUT, SPRING (6MM)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 20+

0

19

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
