HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) CUTTER DECK LINK Parts Diagram

Lawn Tractor, Made in USA

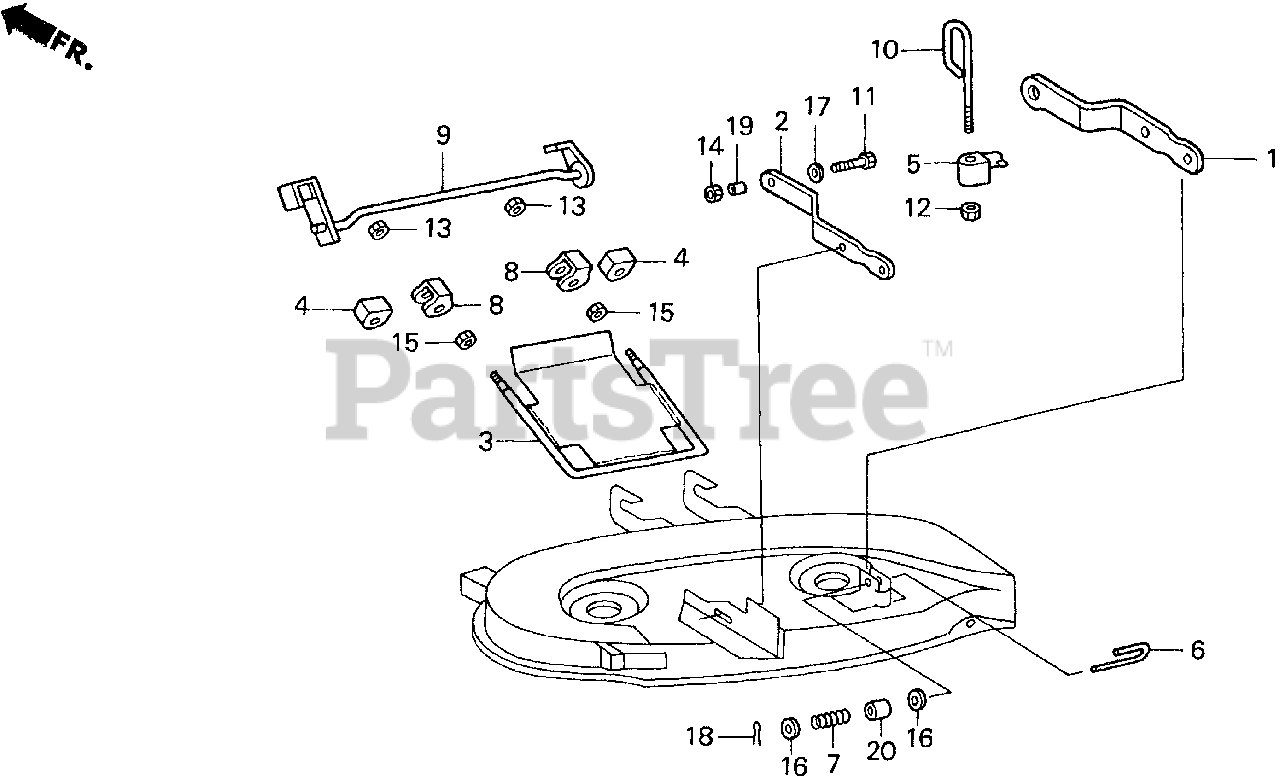

CUTTER DECK LINK Parts Diagram

  • Title

1

Honda 76171-V09-A01

LINK, R. RR. DECK

$25.99

$

Usually ships in 3-6 days

0

2

Honda 76172-V09-A01

LINK, L. RR. DECK

$20.99

$

Usually ships in 3-6 days

0

3

Honda 76170-V09-A01

ROD, CUTTER DECK LIFT

$

$

Not available

4

Honda 76186-V09-A01

PIN, RR. LINK ADJUSTING

$3.49

$

Usually ships in 3-6 days

0

5

Honda 76187-V09-A01

PIN, RR. LINK ADJUSTING

$

$

Not available

6

Honda 76188-V09-A01

PIN, LIFT ARM

$12.99

$

Usually ships in 3-6 days

0

7

Honda 76189-V09-A01

SPRING, LIFT ARM PIN

$1.99

$

Usually ships in 3-6 days

0

8

Honda 76191-V09-A01

BRACKET, FR. LINK

$4.99

$

Usually ships in 3-6 days

0

9

Honda 76420-V09-A01

ARM, LIFT

$76.99

$

Usually ships in 3-6 days

0

10

Honda 76432-V09-A01

BAR, ADJUSTING

$

$

Not available

11

Honda 90113-V09-A01

BOLT, HEX. (12X35)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90305-V09-A01

NUT, NYLON LOCK

$

$

Not available

13

Honda 90307-V09-A01

NUT C, LOCK (8MM)

$8.49

$

Usually ships in 3-6 days

0

14

Honda 90308-V09-A01

NUT, LOCK (12MM)

$

$

Currently unavailable

15

Honda 90318-V09-A01

NUT, HEX. (12MM)

$

$

Not available

16

Honda 90520-V09-A01

WASHER, RELEASE PIN

$0.99

$

Usually ships in 3-6 days

0

17

Honda 90521-V09-A01

WASHER, RR. DECK LIFT

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90760-V09-A01

PIN, DRAFT ARM COTTER

$0.99

$

Usually ships in 3-6 days

0

19

Honda 91557-V09-A01

BUSHING, DRAFT ARM

$

$

Currently unavailable

20

Honda 91558-V09-A01

BUSHING, RR. DRAFT

$1.99

$

Usually ships in 3-6 days

0
